Overview
1.7 Default IP Addresses
interface. Typical port parameters for the internal interface, such as speed, duplex,
VLANs, and more, can be configured via RUGGEDCOM ROX II.
NOTICE
Interface settings configured via RUGGEDCOM ROX II must be mirrored within the
RUGGEDCOM APE1808 module. For instance, if a VLAN is assigned to the module in
RUGGEDCOM ROX II, a corresponding VLAN must also be configured via the mod-
ule's operating system.
1
2
3
4

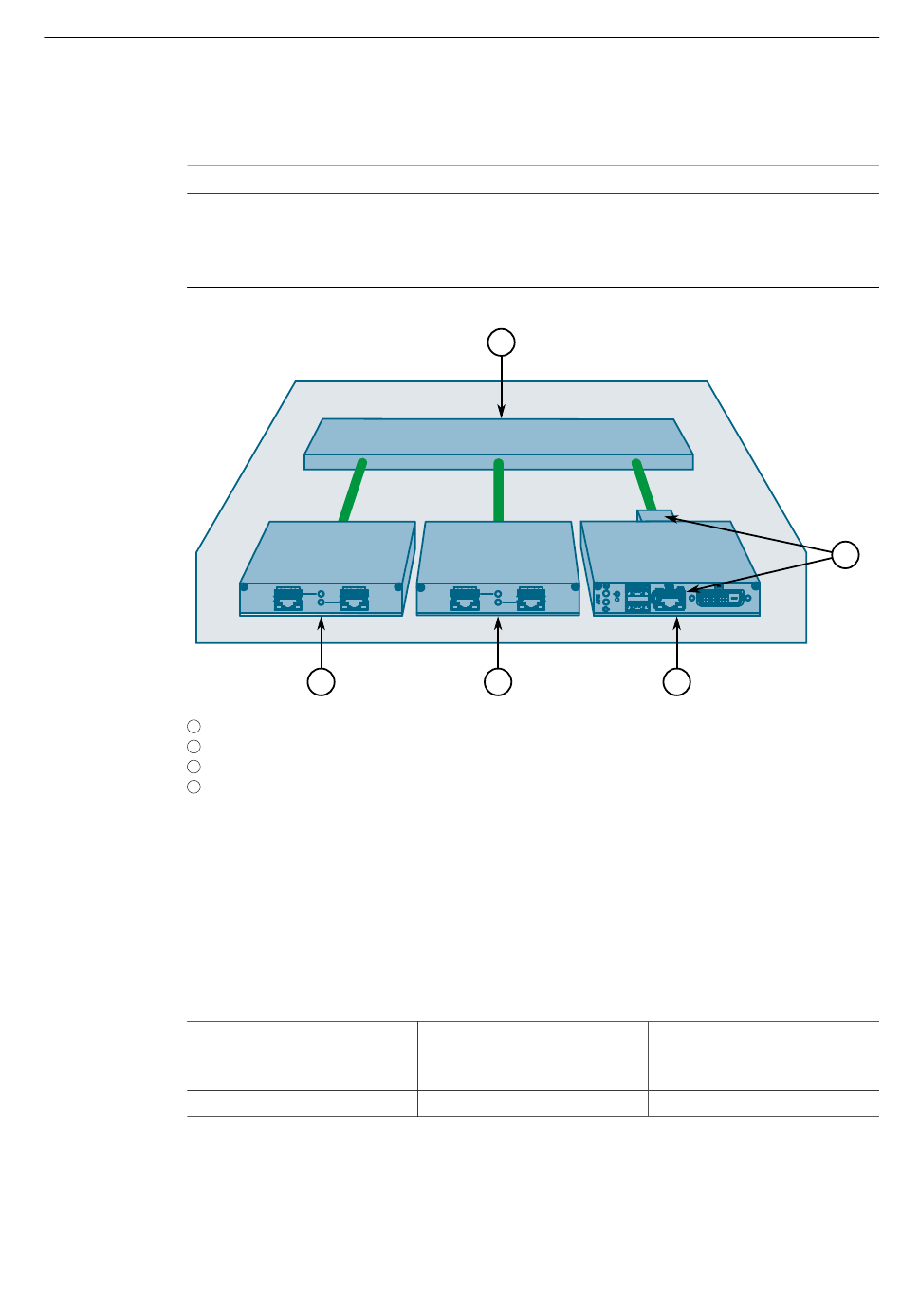

Figure 1.2
1.7

Default IP Addresses

Based on the software platform installed on the RUGGEDCOM APE1808, the IP ad-
dresses for the front and/or internal ports may be pre-configured or set dynamically
by the Dynamic Host Configuration Protocol (DHCP).
Software Platform
Windows® 10 Enterprise 2019
LTSC
Debian Linux®
6
2
Switch Fabric Data Plane
Line Module (10/100/1000Base-TX)
RUGGEDCOM APE1808 Module
Gigabit Ethernet (GbE) Network Interfaces
A RUGGEDCOM RX15xx Device With an RUGGEDCOM APE1808 Module Installed
1
2
External Port (RJ45)
DHCP
DHCP
3
Internal Port
DHCP
DHCP
RUGGEDCOM APE1808
Configuration Manual, 11/2019, C79000-G8976-1415-03
4
