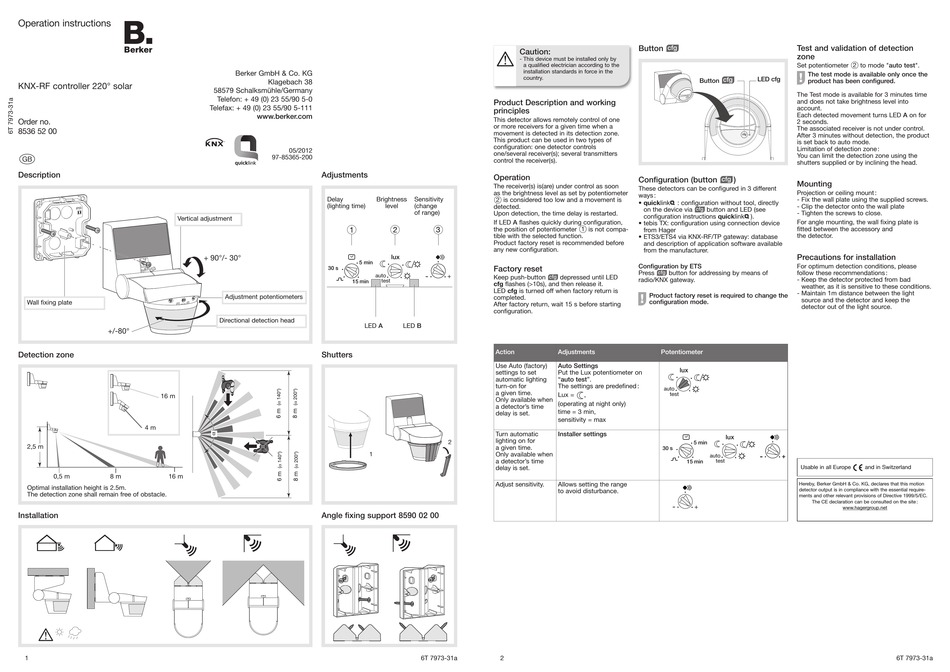

Berker 8536 52 00 Operation Instructions

Operation instructions
KNX-RF controller 220° solar
Order no.
8536 52 00
§
Description
IP55
Vertical adjustment
Wall fixing plate
+/-80°
Detection zone
16 m
4 m
2,5 m
0,5 m 8 m 16 m
Optimal installation height is 2.5m.
The detection zone shall remain free of obstacle.
Installation
1
Berker GmbH & Co. KG
Klagebach 38
58579 Schalksmühle/Germany
Telefon: + 49 (0) 23 55/90 5-0
Telefax: + 49 (0) 23 55/90 5-111
www.berker.com
05/2012
97-85365-200
Adjustments
Delay Brightness
(lighting time)
+ 90°/- 30°
5 min
30 s
auto
test
15 min
Adjustment potentiometers
Directional detection head
LED A
Shutters
1
Angle fixing support 8590 02 00
Caution:
- This device must be installed only by
a qualified electrician according to the
installation standards in force in the
country.
Product Description and working
principles
This detector allows remotely control of one
or more receivers for a given time when a
movement is detected in its detection zone.
This product can be used in two types of
configuration: one detector controls
one/several receiver(s); several transmitters
control the receiver(s).
Operation
The receiver(s) is(are) under control as soon
as the brightness level as set by potentiometer
Sensitivity is considered too low and a movement is
2
level (change
detected.
of range)
Upon detection, the time delay is restarted.
If LED A flashes quickly during configuration,
the position of potentiometer
tible with the selected function.
Product factory reset is recommended before
any new configuration.
lux
Factory reset
-
+
Keep push-button depressed until LED
J
cfg flashes (>10s), and then release it.
LED cfg is turned off when factory return is
completed.
After factory return, wait 15 s before starting
configuration.
LED B
Action Adjustments
Use Auto (factory) Auto Settings
settings to set Put the Lux potentiometer on
automatic lighting "auto test".
turn-on for The settings are predefined :
a given time.
Lux =
Only available when
(operating at night only)
a detector's time
time = 3 min,
delay is set.
sensitivity = max
Turn automatic
Installer settings
lighting on for
2
a given time.
Only available when
a detector's time
delay is set.
Adjust sensitivity. Allows setting the range
to avoid disturbance.
6T 7973-31a 2
Button
J
LED cfg
Button J
cfg
Configuration (button )
J
These detectors can be configured in 3 different
ways :
• quicklink& : configuration without tool, directly
on the device via button and LED (see
J
configuration instructions quicklink& ).
• tebis TX: configuration using connection device
1 is not compa- from Hager
• ETS3/ETS4 via KNX-RF/TP gateway: database
and description of application software available
from the manufacturer.
Configuration by ETS
Press button for addressing by means of
J
radio/KNX gateway.
Product factory reset is required to change the
O
configuration mode.
Potentiometer
lux
auto
, test
lux
5 min
30 s
auto
test
15 min
-
+
Test and validation of detection
zone
Set potentiometer 2 to mode "auto test".
The test mode is available only once the
O
product has been configured.
The Test mode is available for 3 minutes time
and does not take brightness level into
account.
Each detected movement turns LED A on for
2 seconds.
The associated receiver is not under control.
After 3 minutes without detection, the product
is set back to auto mode.
Limitation of detection zone :
You can limit the detection zone using the
shutters supplied or by inclining the head.
Mounting
Projection or ceiling mount :
- Fix the wall plate using the supplied screws.
- Clip the detector onto the wall plate
- Tighten the screws to close.
For angle mounting, the wall fixing plate is
fitted between the accessory and
the detector.
Precautions for installation
For optimum detection conditions, please
follow these recommendations :
- Keep the detector protected from bad
weather, as it is sensitive to these conditions.
- Maintain 1m distance between the light
source and the detector and keep the
detector out of the light source.
-
+
Usable in all Europe and in Switzerland
Hereby, Berker GmbH & Co. KG, declares that this motion
detector output is in compliance with the essential require-
ments and other relevant provisions of Directive 1999/5/EC.
The CE declaration can be consulted on the site :
www.hagergroup.net
