- Page 1 AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR PRODUCT MANUAL AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR...
-
Page 2: Table Of Contents
Table of Contents AGD 331 INTRODUCTION IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Product & technology Key features Typical applications IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Product overview image Product variants Product overview IN-SIGN RADAR TRAFFIC DETECTOR INSTALLATION AGD 331 Radar mounting... -
Page 3: Introduction
PRODUCT & TECHNOLOGY IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 The 331 detector is a true ranging FMCW radar designed for OEM integration into Vehicle IN-SIGN RADAR TRAFFIC DETECTOR Actuated Sign (VAS) applications. AGD 331... -

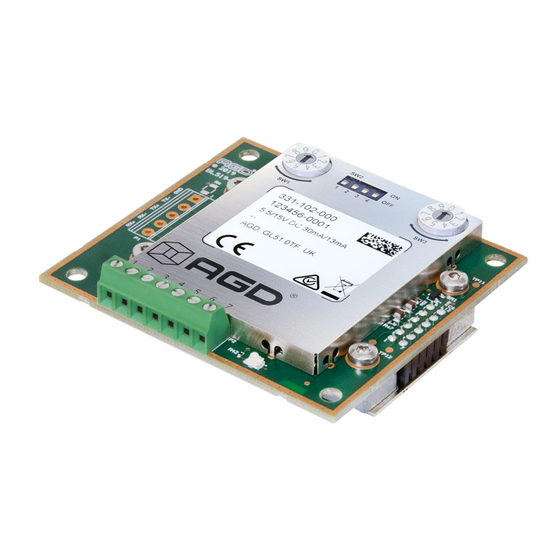

Page 4: Product Overview Image
(regardless of vehicle size). Designed to be simple to use and quickly deployed into the end users sign solution, the 331 range and low speed can be set-up and adjusted via rotary and dip switches conveniently located on the rear of the unit. Additional parameters are accessible via an RS232 serial interface. -
Page 5: Installation
6.0mm 15mm +/- 1mm The relatively wide beam profile of the 331 ensures good detection coverage of single or dual lane approaches with relatively little adjustment of the sign in relation to the direction of approaching targets. The recommended mounting height of the radar within the sign is between 2-5 meters with the optimum being 3 metres. -
Page 6: Radar Installation - Range
RADAR INSTALLATION - RANGE IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 The 331 is a true ranging radar that allows the user to select at what range the radar needs to start reporting on IN-SIGN RADAR TRAFFIC DETECTOR tracked targets. AGD 331 Each target needs to return sufficient signal in order for the radar to track its range. -
Page 7: System Hardware Overview
System Hardware Overview AGD 331 POWER & COMMUNICATIONS IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Terminal Connections IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Pin No. Function Power Off Power On - No Detect Power On - Detect +5.5 to 15Vdc IN-SIGN RADAR TRAFFIC DETECTOR... - Page 8 Stop bits Flow control (handshaking) None Transmit delay Communications can be established with the 331 Radar using MS-226 (FTDI USB-232 converter) cable assembly (pictured) supplied separately. The wire ends should be connected as follows: FTDI Wire Colour 331 Terminal Connection...
-
Page 9: Radar Commands & Configuration
Radar responds with #DIR?A<CR> Communication Tasks The operation of the 331 radar has been optimised as a low power device with minimal processing overhead. It is good practice to not ‘overrun’ the communication line with repeated send commands when the radar is operational. -
Page 10: Command List
Radar Commands and Configuration AGD 331 COMMAND LIST IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Command Suffixes Description Default Lower Upper Comments IN-SIGN RADAR TRAFFIC DETECTOR Limit Limit AGD 331 Shows detector type & version Reports radar model and information version information... - Page 11 Radar Commands and Configuration AGD 331 COMMAND LIST CONTINUED IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Command Suffixes Description Default Lower Upper Comments IN-SIGN RADAR TRAFFIC DETECTOR Limit Limit AGD 331 *OUT1 Controls switched output 1 *OUT1 = detect, 11, 160, 180, Mode = detect / disabled A<CR>...
-
Page 12: Output Configuration String
Radar Commands and Configuration AGD 331 OUTPUT CONFIGURATION STRING IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Using the terminal application via the RS232 it is possible to set up both switched outputs as independent IN-SIGN RADAR TRAFFIC DETECTOR triggers by adding values to *OUT command string. The string will need a carriage return for the setting to be AGD 331 committed to memory. -
Page 13: Rs232 Output Message
Radar Commands and Configuration AGD 331 RS232 OUTPUT MESSAGE IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 The speed of a single target of interest can be reported using the RS232 connection. This is typically used to IN-SIGN RADAR TRAFFIC DETECTOR display the actual speed of a target as it approaches the sign. -
Page 14: Radar Count Output
IN-SIGN RADAR TRAFFIC DETECTOR If you choose to configure the 331 using the physical switches, you would set the speed threshold you wish to report a target travelling over, using SW1. The range could then be set using SW3. This would set-up FET 1 (*OUT1) to actuate according to your set parameters. -
Page 15: Firmware Update
Dynamic frame rate is used to reduce the power consumption of the 331 whilst no valid targets are being IN-SIGN RADAR TRAFFIC DETECTOR detected. It does this by reducing the number of times the transmitter looks for a target per second, after the 331 AGD 331 has not detected a target for 1 second. -
Page 16: Dip Switch Sw2 Configuration
Radar Commands and Configuration AGD 331 DIP SWITCH SW2 CONFIGURATION IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Setup IN-SIGN RADAR TRAFFIC DETECTOR Switch 1 SIMPLE MECHANICAL SWITCH SET-UP AGD 331 (Low speed threshold) Switch 3 (Range) IN-SIGN RADAR TRAFFIC DETECTOR AGD 331... -
Page 17: Dip Switch Sw1 Configuration
Radar Commands and Configuration AGD 331 ROTARY SWITCH SW1 CONFIGURATION IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Setup Rotary Switch 1 Settings - 10 positions IN-SIGN RADAR TRAFFIC DETECTOR SIMPLE MECHANICAL SWITCH SET-UP AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR Only switched output one... -
Page 18: Rotary Switch Sw3 Configuration
Radar Commands and Configuration AGD 331 ROTARY SWITCH SW3 CONFIGURATION IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Setup Rotary Switch 3 Settings - 10 positions IN-SIGN RADAR TRAFFIC DETECTOR SIMPLE MECHANICAL SWITCH SET-UP AGD 331 The radar’s range can be easily adjusted for site specific topography and local conditions via rotary switch three. -
Page 19: Help
AGD 331 which is of the order of the user range setting intervals. However, the 331 does have a feature to decease the frame rate (*DFR command). Dynamic frame rate reduces the power consumption of the 331 whilst no valid targets are being detected. - Page 20 ‘stealthy’ profile and the effect on detection range. I have mounted the 331 radar in the sign and set the detection distance to 60m but I am only getting a detection range of typically 30m which varies with each target? The radar is designed to operate through a plastic screen which normally forms the front face of the sign.
- Page 21 The target range measurement is treated in the same way as the speed measurement. My 331 has a different product number to the ones listed on page 4. What is the difference? The general operation and function are the same for new and old 331 radars. The 24.2GHz variant 331-100- 000 has been superseded by 331-102-000 and the 24.125GHz FCC variant 331-101-000 has been superseded...
-
Page 22: Radar Characteristics
Radar Characteristics AGD 331 GENERAL IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 Radar Antenna IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 The antenna design is a planar patch array with the following performance: IN-SIGN RADAR TRAFFIC DETECTOR Parameter Specified Notes AGD 331 Horizontal beam-width 33˚... -
Page 23: Antenna Plots
Radar Characteristics AGD 331 ANTENNA PLOTS IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR TX - Antenna Pattern AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR Angle (º) ------- Elevation ------- Horizontal... -
Page 24: Frequency Variants
Licence required for use Frequency allocated but EIRP too high It is important to note that this table is updated from time to time. Please contact AGD for latest information if your intended country of use is not currently represented. -
Page 25: Technical Specifications
EN 301 489, EN 50293, EN 300 440, FCC CFR47 Part 15.245, Approvals RSS-210, AS/NZS 4268 RoHS Owing to the Company’s policy of continuous ACCESSORIES improvement, AGD Systems Limited reserves the right to change their specification or design without notice. COMPLIANT Target Simulator Restriction on Hazardous Substances MS-226... -
Page 26: Manufacturing Test Process
The test results in association with the product build revision are recorded AGD ATLAS on a product serial number basis. The full suite of test measurements is instantly sent to the dedicated product database within the AGD secure server facility, providing full traceability during the product lifetime. TEST COMPLIANCE EQUIPMENT The AGD Certified symbol is your mark of assured performance. -
Page 27: Certification
Certification... -
Page 28: End Of Life - Disposal Instructions (Eol)
End Of Life – Disposal Instructions (EOL) AGD 331 AGD331 RADAR TRAFFIC DETECTOR IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR AGD 331 IN-SIGN RADAR TRAFFIC DETECTOR • Reuse / Recycle Item Qty Material •... -
Page 29: Important Safety Information
20cm of the body. • The transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. • Changes or modifications not expressly approved by AGD Systems Ltd could void the user’s authority to operate the equipment. -
Page 30: Low Power Non-Ionising Radio Transmission And Safety
0.318mW/cm2) is at a point in the field where the radar beam is not properly formed. Note 4 Comparison for product model 331 operating in the band typically 24.050GHz to 24.250GHz From the table it can be seen that it is extremely unlikely that a potentially hazardous situation could occur owing to the use of such low power devices. - Page 31 Notes...
-
Page 32: Disclaimer
WARRANTY All AGD products are covered by a 12 month return to factory warranty. Products falling outside this period may be returned to AGD Systems for: evaluation, repair, update or re-calibration, any of which may be chargeable. AGD Systems Limited White Lion House, Gloucester Road, Cheltenham, GL51 0TF, UK Tel: +44 (0) 1452 854212 Email: info@agd-systems.com Web: agd-systems.com...
