To set the desired values from the web server, first of all the REACT system must be connected with a
PC/Tablet/Smartphone by means of a Wi-Fi connection (consult the product's manual for indications on
how to connect to the web server or for further information), then the desired parameters can be set as
shown in the sequence below:

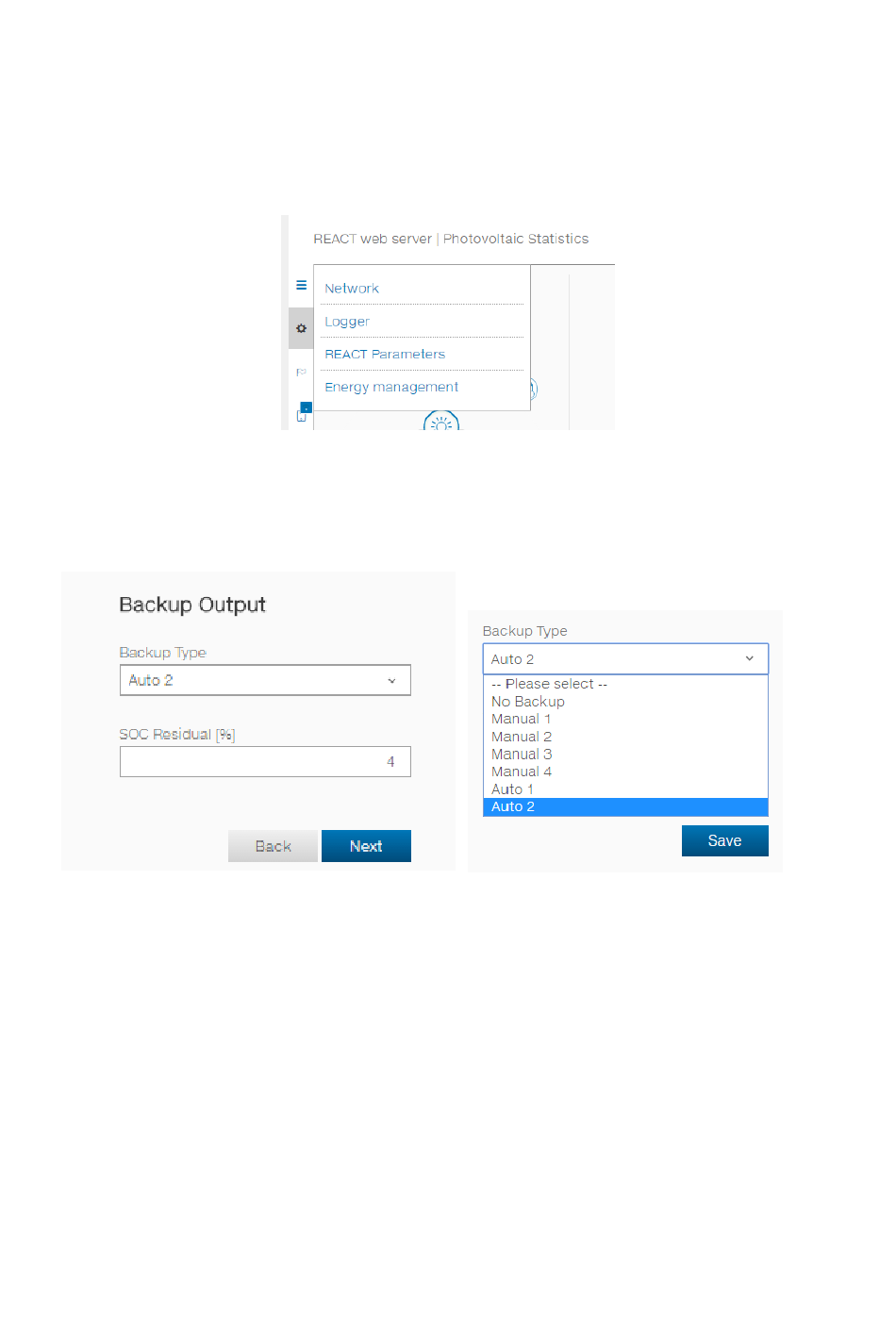

1. From the main page or "Dashboard", click on "REACT Parameters" in the Settings menu:
2. Select "Backup output" as the desired mode in the "Backup type" drop-down menu and the
residual charge state from the "Residual SOC" drop-down menu (default value: 4%), then press the
"Save" button to enable the settings:

5.4 Control/signal from external logic

To use the external digital control required in the Auto1, Manual 1 and Manual 3 modes, the user must
connect terminals 1 and 3 from the terminal block J3 as shown below:
(Before performing any action on the terminal block, make sure that the machine is disconnected by
pressing the STOP push-button and selecting the DC and AC section.)
Application Note| REACT-3.6/4.6-TL – BACKUP OUTPUT|Operation and Configuration 16
