SPECIFICATIONS

SUPPLY VOLTAGE
•
10 to 30 VDC
•
Polarity Protected
CURRENT REQUIREMENTS
•
45 milliamps (exclusive of load)
OUTPUT TRANSISTORS
•
(1) NPN and (1) PNP output transistors
•
Sensor outputs can sink or source up to 150 milliamps
(current limit)
•
All outputs are continuously short-circuit protected
REMOTE AUTOSET INPUT
•
Opto isolated momentary sinking input (10 milliamps)
RESPONSE TIME
•
Light state response = 100 microseconds
•
Dark state response = 100 microseconds
LED LIGHT SOURCE
•
Pulse modulated high intensity white LED
PUSHBUTTON CONTROL
•
One pushbutton set-up
•
Automatic set-up routines based on web opacity
•
Simultaneously pushing both buttons inverts the output
•
On power-up, simultaneously pushing both buttons enables
the program mode, allowing the pulse stretcher to be
enabled or disabled

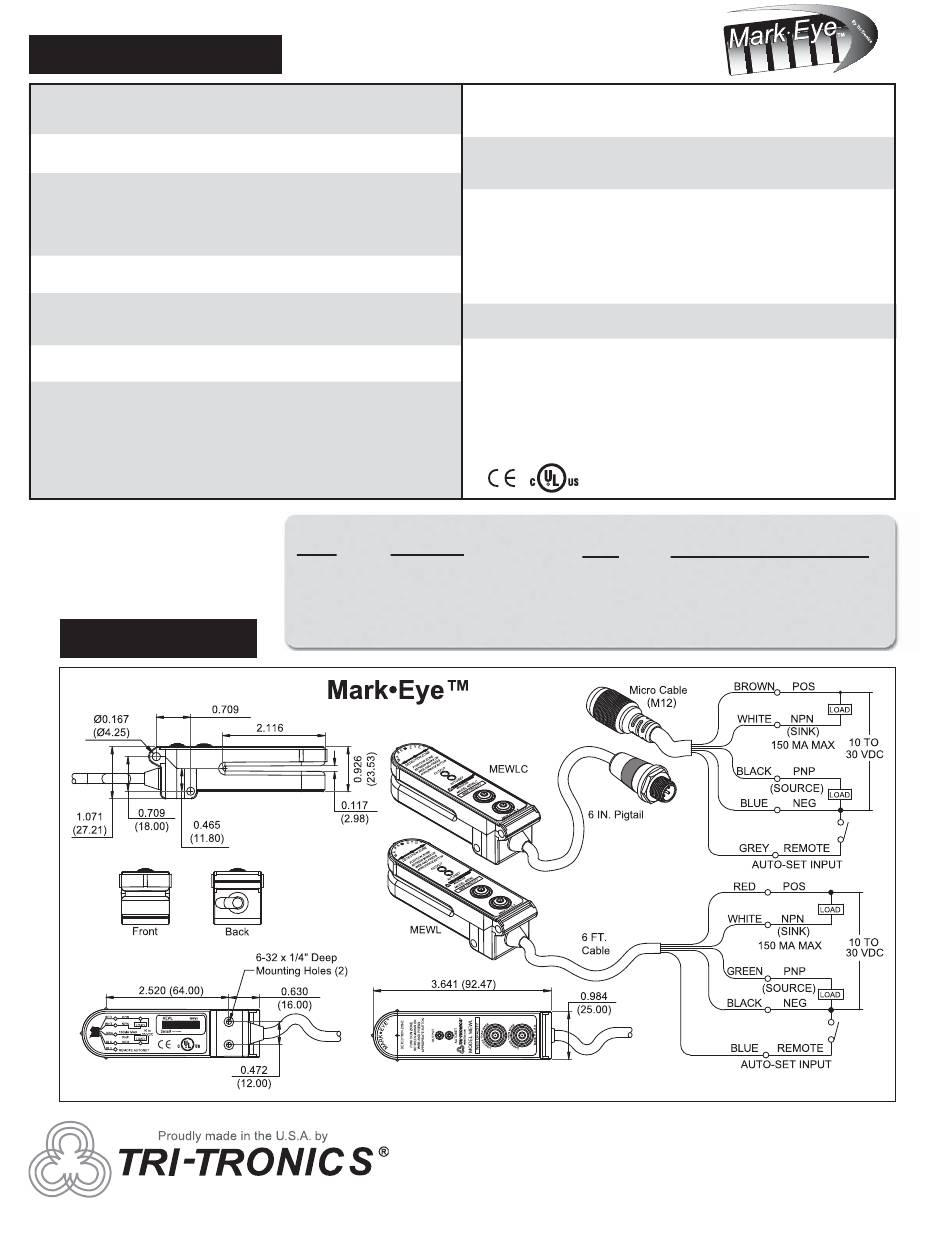

DIMENSIONS

Sensor Selection Guide

Model Description
MEWL White LED, 5-conductor cable
MEWLC White LED, 5-pin micro
connector on a 6" pigtail
P.O. Box 25135, Tampa, FL 33622-5135
TEL: (813) 886-4000 / TOLL FREE: (800) 237-0946
FAX: (813) 884-8818 / TOLL FREE: (800) 375-8861
www.ttco.com / info@ttco.com
HYSTERESIS
•
Minimal hysteresis promotes detection of low contrast
registration marks
LIGHT IMMUNITY
•
Responds to sensor's pulse modulated light source ...
immune to most ambient light
INDICATORS
•
Green AUTOSET LED flashes when AUTOSET routine is
activated and stays illuminated when AUTOSET is completed
•
Red Output LED illuminates when sensor's output
transistors are "ON"
•
On power-up, the AUTOSET LED flashes twice when
the pulse stretcher is enabled
AMBIENT TEMPERATURE
•
- 40°C to 70°C (- 40°F to 158°F)
RUGGED CONSTRUCTION
•
Chemical resistance to harsh cleaners, such as
detergents, alcohols, and ketones
•
Waterproof ratings: NEMA 4 and IP66
•
Conforms to heavy industry grade CE and UL requirements
SELECTABLE PULSE STRETCHER
•
Provides a minimum of 10 milliseconds output duration
Cable Selection Guide (5 Wire)
Model
GSEC-2MU
GSEC-5MU
GSEC-6
GSEC-15
GPSEC-15
