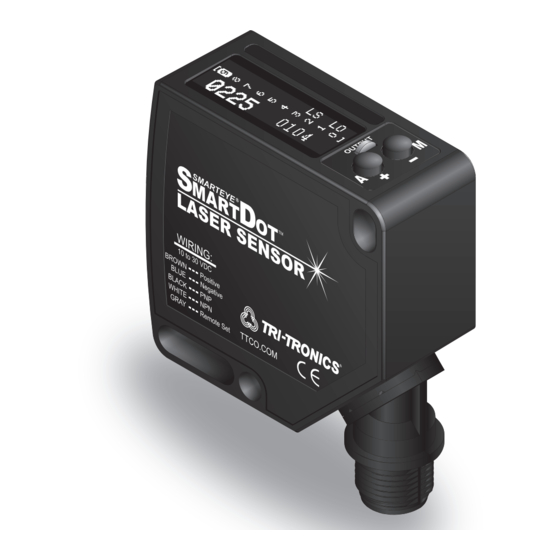

Tri-Tronics SMARTEYE SmartDot Installation Instructions Manual

Specifications

SUPPLY VOLTAGE: LIGHT SOURCE:
• 10 to 30 VDC • Red Laser: Class 1 or II
• Polarity Protected • EN 60825-1 (2003)
Note: For use in Class 2 circuits
SPOT SIZE:
CURRENT REQUIREMENTS: • Short Range: .05" X .03" @ 6"
• 35 milliamps max. at 24VDC • Long Range: .07" X .05" @ 18"
• Retroreflective: .1" X .1" @ 5'
OUTPUT TRANSISTORS:
• (1) NPN and (1) PNP sensor output PUSHBUTTON CONTROL:
transistors • Two push buttons
• Outputs sink or source up to 150
milliamps (current limit) AMBIENT TEMPERATURE:
• All outputs are continuously short circuit • -40ºC to 70ºC (-40ºF to 158ºF)
protected
RUGGED CONSTRUCTION:
REMOTE AUTOSET INPUT: • Chemical resistant high impact
Selectable: Advanced Options ABS plastic housing
• NPN Input, Connect to 0VDC • Waterproof rating: IP68
• PNP Input, Connect to 10-30VDC • Conforms to heavy industry
grade CE requirements
RESPONSE TIME: • RoHS Compliant
• Light state response = 240 microseconds
• Dark state response = 240 microseconds DIMENSIONS:
• Width: 2.037in (51.73mm)
LASER LIGHT EXPECTANCY: • Height: 2.005in (50.9mm)
• 50,000 hours @ 25ºC • Depth: .812in (20.6mm)

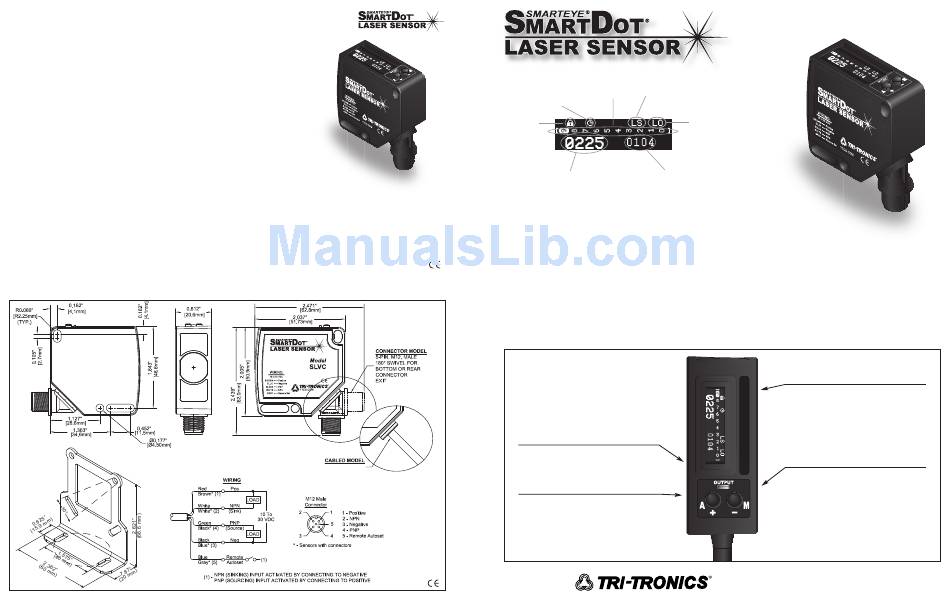

Connections and Dimensions
Accessory:
AR51 High Performance Laser Reflector 51mm
SLB-1
Slot Width:
.173"
(4.4mm)
FOCAL DISTANCE:
152mm)
• Short Range Proximity: 6" (
• Long Range Proximity: 18"(456mm)
• Retroreflective: 5' (1.520m)
Note: Ranges are determined by optimal
beam spot focus. Increased ranges are
possible, but are application specific and
can not be adequately specified herein.
RoHS Compliant
Product subject to change without notice.
SMARTEYE S D
® TM
MART OT
6' (1.83m), 5-CONDUCTOR,
26 AWG, SHIELDED
070-0225
Contrast Light State
Indicator
Dark State
Timer's on
AUTOSET
Locked
Threshold
Signal
Strength Number
AUTOSET: (A)
• Proximity Sensing - Push and hold "A" button for 2 seconds with product in view for Light State AUTOSET. Push and
hold "A" button for 2 seconds with product NOT in view for Dark State AUTOSET.
(Note: Choose Light On Output for leading edge triggering, Dark On Output for trailing edge triggering.
• Retroreflective Sensing - Push and hold "A" button for 2 seconds with reflector in view for Light State AUTOSET.
Push and hold "A" button for 2 seconds with product blocking the reflector for Dark State AUTOSET.
(Note: Choose Dark On Output for leading edge triggering, Light On Output for trailing edge triggering.)
MENU: (M)
Press and hold "M" button for Menu access. Tap "M" button for scrolling through selection options. Tap "A" button to
change selection.
OUTPUT INDICATOR
Red LED illuminates when when outputs
are ON. Flashes when short circuit or
overload detected
AUTOSET
1. Press and hold for 2 seconds to initiate
AUTOSET.
2. When in Menu, momentarily tap for
making changes to Menu Options.
3. When in normal operation, momentarily
tap to adjust threshold up (+).

Installation Manual

Light On
Dark On Output
OLED NUMERICAL DISPLAY
1. 1 to 10 bar Contrast Indicator
2. Numerical display provides visual
feedback of threshold settings and signal
strength feedback.
3. Displays button lockout, AUTOSET
mode, timers on/off, and output mode.
MENU BUTTON
1. Push and Hold for 2 seconds to enter
Menu options mode.
2. When in Menu options mode, tap to
scroll through available options.
3. When in normal operation, momentarily
tap to adjust threshold down (-).
