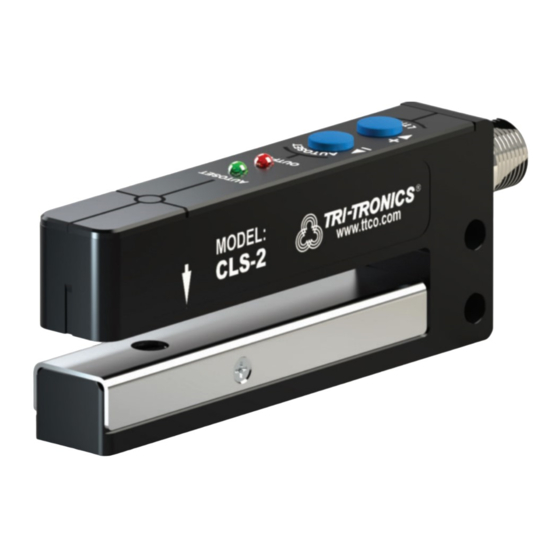

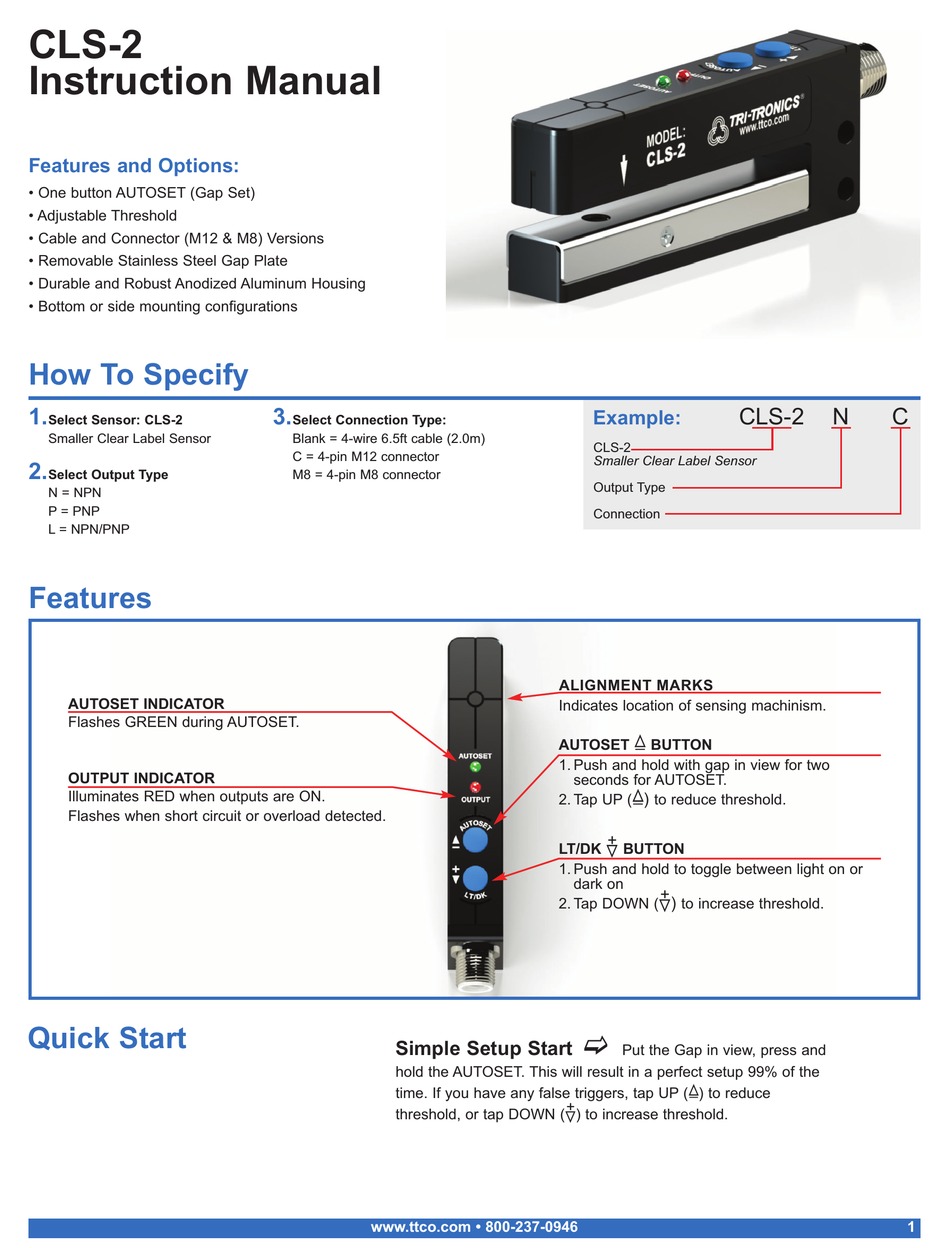

Tri-Tronics CLS-2 Instruction Manual

CLS-2
Instruction Manual
Features and Options:
• One button AUTOSET (Gap Set)
• Adjustable Threshold
• Cable and Connector (M12 & M8) Versions
• Removable Stainless Steel Gap Plate
• Durable and Robust Anodized Aluminum Housing
• Bottom or side mounting configurations
How To Specify
1.
Select Sensor: CLS-2
Smaller Clear Label Sensor
2.
Select Output Type
N = NPN
P = PNP
L = NPN/PNP
Features
AUTOSET INDICATOR
Flashes GREEN during AUTOSET.
OUTPUT INDICATOR
Illuminates RED when outputs are ON.
Flashes when short circuit or overload detected.
Quick Start
3.
Select Connection Type:
Blank = 4-wire 6.5ft cable (2.0m)
C = 4-pin M12 connector
M8 = 4-pin M8 connector
Simple Setup Start
hold the AUTOSET. This will result in a perfect setup 99% of the
time. If you have any false triggers, tap UP ( r _ ) to reduce
threshold, or tap DOWN ( s + ) to increase threshold.
www.ttco.com • 800-237-0946
Example:
CLS-2
Smaller Clear Label Sensor
Output Type
Connection
ALIGNMENT MARKS
Indicates location of sensing machinism.
r _
AUTOSET BUTTON
1. Push and hold with gap in view for two
seconds for AUTOSET.
r _ )
2. Tap UP ( to reduce threshold.
+
s
LT/DK BUTTON
1. Push and hold to toggle between light on or
dark on
+ )
s
2. Tap DOWN ( to increase threshold.
c
Put the Gap in view, press and
CLS-2 N C
1
