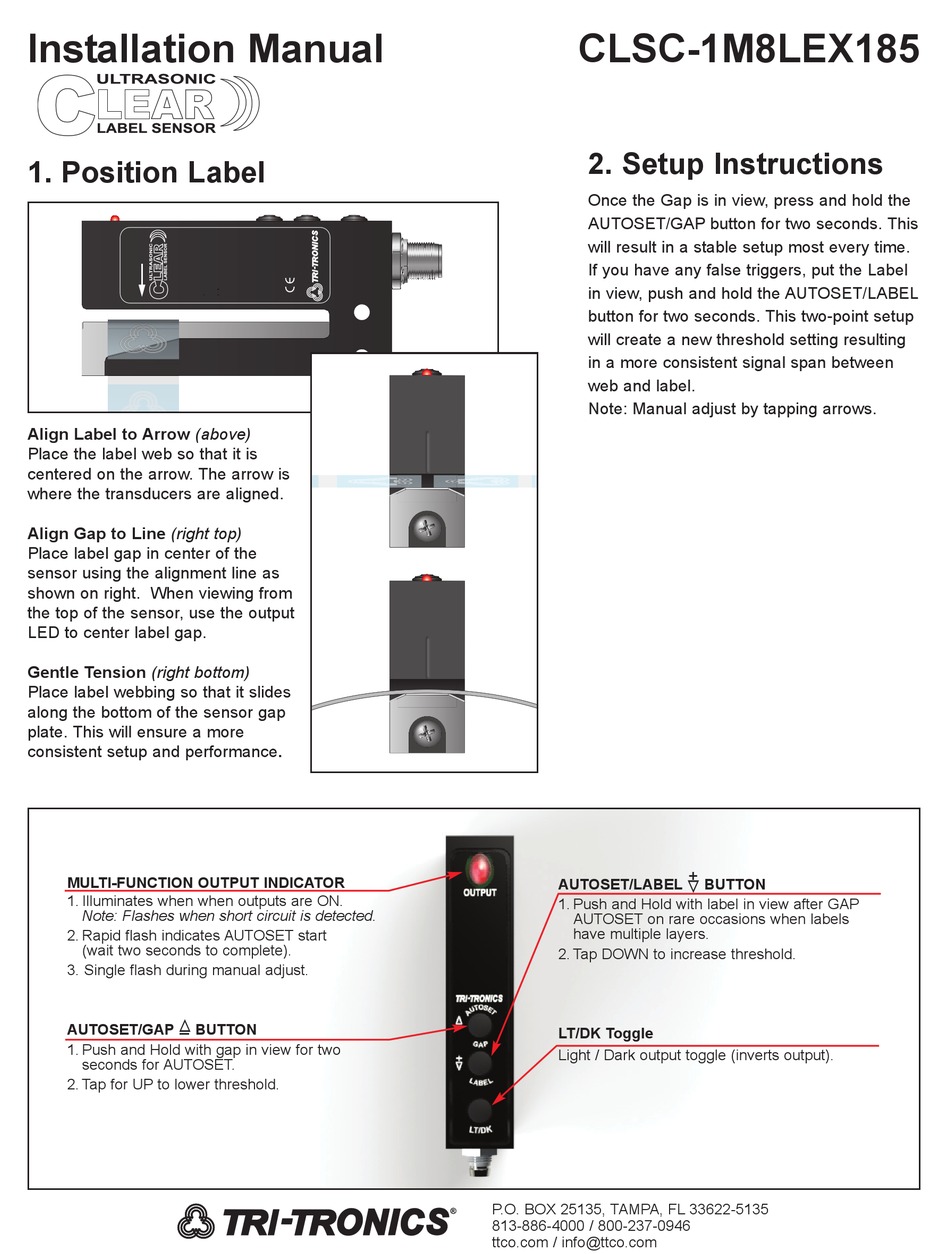

Tri-Tronics CLSC-1M8LEX185 Installation Manual

Installation Manual
1. Position Label
Align Label to Arrow (above)
Place the label web so that it is
centered on the arrow. The arrow is
where the transducers are aligned.
Align Gap to Line (right top)
Place label gap in center of the
sensor using the alignment line as
shown on right. When viewing from
the top of the sensor, use the output
LED to center label gap.
Gentle Tension (right bottom)
Place label webbing so that it slides
along the bottom of the sensor gap
plate. This will ensure a more
consistent setup and performance.
MULTI-FUNCTION OUTPUT INDICATOR
1. Illuminates when when outputs are ON.
Note: Flashes when short circuit is detected.
2. Rapid flash indicates AUTOSET start
(wait two seconds to complete).
3. Single flash during manual adjust.
  _
AUTOSET/GAP BUTTON
1. Push and Hold with gap in view for two
seconds for AUTOSET.
2. Tap for UP to lower threshold.
CLSC-1M8LEX185

2. Setup Instructions

Once the Gap is in view, press and hold the
AUTOSET/GAP button for two seconds. This
will result in a stable setup most every time.
If you have any false triggers, put the Label
in view, push and hold the AUTOSET/LABEL
button for two seconds. This two-point setup
will create a new threshold setting resulting
in a more consistent signal span between
web and label.
Note: Manual adjust by tapping arrows.
AUTOSET/LABEL
1. Push and Hold with label in view after GAP
AUTOSET on rare occasions when labels
have multiple layers.
2. Tap DOWN to increase threshold.
LT/DK Toggle
Light / Dark output toggle (inverts output).
P.O. BOX 25135, TAMPA, FL 33622-5135
813-886-4000 / 800-237-0946
ttco.com / info@ttco.com
+
BUTTON
 
