Instruction Manual
D104425X012
Fisher
V280 Full-Bore Ball Control Valve
™
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Scope of Manual
This instruction manual provides installation, operation, maintenance, and parts information for the Fisher V280
Full-Bore Ball control valve (see figure 1). Refer to separate manuals for information concerning the actuator,
positioner, and accessories.
Do not install, operate, or maintain a V280 valve without being fully trained and qualified in valve, actuator, and
accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is important to
carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. If you
have any questions about these instructions, contact your
Description
The Fisher V280 is a three-piece, trunnion mounted, full-bore control valve designed with features for optimized
pressure, flow, and process control. The V280 comes standard as a single-seal construction with optional dual-seal
construction allowing for bidirectional flow and double block-and-bleed operation, with or without attenuation. Valve
constructions with attenuators combine the efficiency of a rotary valve with the noise reducing capability of a special
trim. Valve constructions without attenuators present little or no restriction to flow at full travel. The V280
construction meets ANSI/NACE MR0175/ISO 15156 as standard.
www.Fisher.com
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .

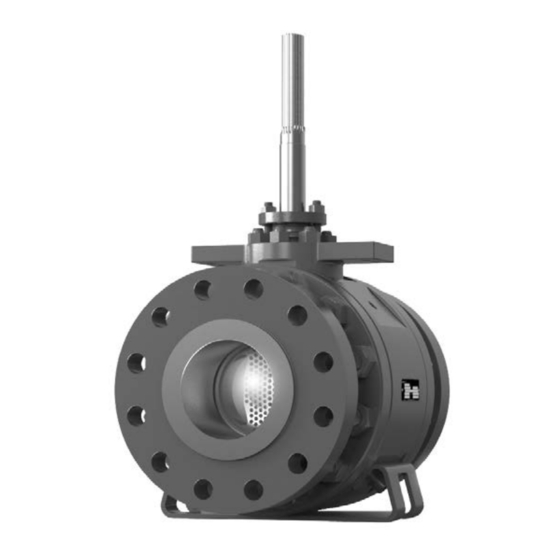

Figure 1. Fisher V280 Control Valve
1
1
1
2
3
4
5
6
6
6
9
9
11
13
13
14
16
X1611
Emerson sales office
before proceeding.
V280 Valve
August 2019
Advertisement
Table of Contents
Related Manuals for Emerson Fisher V280
Summary of Contents for Emerson Fisher V280
-
Page 1: Table Of Contents
Description The Fisher V280 is a three-piece, trunnion mounted, full-bore control valve designed with features for optimized pressure, flow, and process control. The V280 comes standard as a single-seal construction with optional dual-seal construction allowing for bidirectional flow and double block-and-bleed operation, with or without attenuation. Valve constructions with attenuators combine the efficiency of a rotary valve with the noise reducing capability of a special trim. -
Page 2: Specifications
PTFE/PEEK seal insert protection. Bidirectional shutoff requires dual seal Contact your Emerson sales office for other construction options 1. The pressure or temperature limits in this bulletin and any applicable standard or code limitation for this valve should not be exceeded. -
Page 3: Educational Services
2885 6360 1. Dimensions per ASME B16.10-2017. Educational Services For information on available courses for Fisher V280 valves, as well as a variety of other products, contact: Emerson Automation Solutions Educational Services - Registration Phone: 1-641-754-3771 or 1-800-338-8158 E-mail: education@emerson.com... -
Page 4: Installation
4. Provide appropriate flange gaskets, and place the valve in the pipeline. Tighten flange bolting in a star pattern to ensure the flange gaskets are compressed evenly. Note Standard Fisher V280 valve packings (key 105) are composed of: Conductive packing ring (graphite ribbon packing), or... -
Page 5: Maintenance
Instruction Manual V280 Valve D104425X012 August 2019 Partially conductive packing rings (for example: a carbon-filled PTFE female adaptor with PTFE V-ring packing or a graphite-composition packing ring with a PTFE/composition packing ring). To electrically bond the drive shaft to the valve body for hazardous area service, an alternate shaft-to-body bonding strap can be provided by using the follow step (see figure 2). -
Page 6: Packing Maintenance
Instruction Manual V280 Valve August 2019 D104425X012 D Dual‐seal constructions can retain pressure and process fluid even after process pressure has been removed from both sides of the valve. The ball should be partially opened to relieve this pressure before disassembling or removing the valve from the line. - Page 7 Instruction Manual V280 Valve D104425X012 August 2019 Refer to figure 3 which identifies the V280 packing components by key number (also see the Parts List section of this manual). Figure 3. Packing Arrangement Details DRIVE SHAFT (KEY 20) PACKING STUD AND NUT (KEYS 100 AND 101) PACKING FLANGE...
- Page 8 Instruction Manual V280 Valve August 2019 D104425X012 If necessary, use a wheel puller to remove the lever or actuator from the valve drive shaft. Tap the wheel puller screw lightly to loosen the lever or actuator. Do not hit the screw with excessive force. Using excessive force could damage the ball, seal, and valve.
-
Page 9: Seal Ring Maintenance
Instruction Manual V280 Valve D104425X012 August 2019 conditions (only applicable to standard packing), keeping the packing flange parallel with the valve flange (see figure 3). 3. If necessary, install the bonding strap assembly (keys 116 and 117) shown in figure 2. 4. - Page 10 Instruction Manual V280 Valve August 2019 D104425X012 5. Provide a clean soft working surface to protect the tailpiece‐flange serrated surface. Lift the valve and place it on either tailpiece flange face. Be sure the valve is in a stable, upright position before releasing the hoist connection. Note If the packing (key 105) is in good condition, it is possible to remove and replace the seal assembly (key 5) without removing the packing box housing assembly.
-
Page 11: Assembly
Instruction Manual V280 Valve D104425X012 August 2019 13. Turn the ball (key 3) to the closed position. Use an approved lifting sling through the ball bore to lift the ball out of the valve body. Lift the ball and set it on a clean soft surface. 14. - Page 12 Instruction Manual V280 Valve August 2019 D104425X012 10. Lubricate (key 33) the half-dovetail groove on the tailpiece (key 2) and install the O‐rings (key 12) in both tailpieces. 11. If necessary, install the grooved end of the groove pins (key 23) into the bearing plate (key 8) as far as they will go. 12.
-
Page 13: Actuator Mounting
3/4-10 1. Base bracket fasteners must be lubricated to achieve proper preload. 2. Do not lubricate swivel hoist ring fasteners. If lubricated, consult your Emerson sales office for additional torque specifications. Actuator Mounting Use the appropriate actuator instruction manual for mounting the actuator or changing the actuator position. Attach the actuator mounting bracket to the valve packing box and tighten the mounting bracket fasteners as detailed in table 5. -
Page 14: Parts Ordering
WARNING Use only genuine Fisher replacement parts. Components that are not supplied by Emerson Automation Solutions should not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the... - Page 15 Instruction Manual V280 Valve D104425X012 August 2019 Figure 4. V280 Exploded View VIEW A SCALE 1:2.5 VIEW A NOTE: 1. KEY NUMBERS 26, 30, 31, 32, 36, 37, 38, 39, 40, 42, 43, 44, 114, 116, 117 ARE NOT SHOWN APPLY LUBRICANT GH01899...
-
Page 16: Parts List
Fisher and ENVIRO-SEAL are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.
