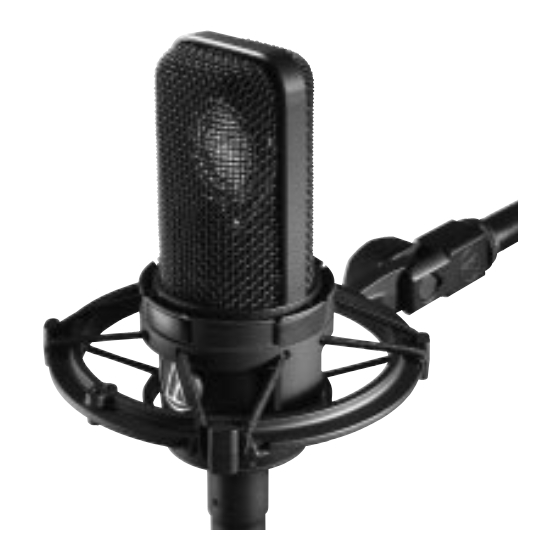

AT4040
CARDIOID CONDENSER MICROPHONE
• Technically-advanced large diaphragm tensioned specifically
to provide smooth, natural sonic characteristics
• Exceptionally low noise, wide dynamic range and high-SPL
capability for greatest versatility
• Transformerless circuitry virtually eliminates low-frequency
distortion and provides superior correlation of high-speed
transients
• Precision-machined, nickel-plated brass, acoustic element baffle
provides enhanced element stability and optimal sensitivity
• State-of-the-art surface-mount electronics ensure compliance
with A-T's stringent consistency and reliability standards
The AT4040 is intended for use in professional applications where
remote power is available. It requires 48V DC phantom power,
which may be provided by a mixer or console, or by a
separate, in-line source such as the Audio-Technica AT8801 single-
channel and CP8506 four-channel phantom power supplies.
Output from the microphone's XLRM-type connector is low
impedance (Lo-Z) balanced. The signal appears across Pins 2 and
3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" –
positive acoustic pressure produces positive voltage at Pin 2.
To avoid phase cancellation and poor sound, all mic cables must be
wired consistently: Pin 1-to-Pin 1, etc.
An integral 80 Hz hi-pass filter provides easy switching from a flat
frequency response to a low-end roll-off. The high-pass position
reduces the microphone's sensitivity to popping in close vocal use.
It also reduces the pickup of low-frequency ambient noise (such
as traffic, air-handling systems, etc.), room reverberation and
mechanically-coupled vibrations.
In use, secure the cable to the mic stand or boom, leaving a slack
loop at the mic. This will ensure the most effective shock isolation
and reduce the possibility of accidentally pulling the microphone out
of its mount.
Avoid leaving the microphone in the open sun or in areas where tem-
peratures exceed 110° F (43° C) for extended periods. Extremely
high humidity should also be avoided.
AT4040 SPECIFICATIONS
†
ELEMENT
POLAR PATTERN
FREQUENCY RESPONSE
LOW FREQUENCY ROLL-OFF
OPEN CIRCUIT SENSITIVITY
IMPEDANCE
MAXIMUM INPUT SOUND LEVEL
NOISE
1
DYNAMIC RANGE (typical)
SIGNAL-TO-NOISE RATIO
1
PHANTOM POWER
REQUIREMENTS
SWITCHES
WEIGHT (less accessories)
DIMENSIONS
OUTPUT CONNECTOR
ACCESSORIES FURNISHED
† In the interest of standards development, A.T .U.S. offers full details on its test
methods to other industry professionals on request.
*1 Pascal = 10 dynes /cm
2
= 10 microbars = 94 dB SPL
1
Typical, A-weighted, using Audio Precision System One.
Polar Pattern
0
330
30
300
60
90
270
240
120
50
210
150
180
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
One-Year Limited Warranty
Audio-Technica brand products purchased in the U.S.A. are warranted for one year from date
of purchase by Audio-Technica U.S., Inc. (A.T.U.S.) to be free of defects in materials and
workmanship. In event of such defect, product will be repaired promptly without charge or, at
our option, replaced with a new product of equal or superior value if delivered to A.T.U.S. or
an Authorized Service Center, prepaid, together with the sales slip or other proof of purchase
date. Prior approval from A.T.U.S. is required for return. This warranty excludes defects
due to normal wear, abuse, shipping damage, or failure to use product in accordance with
instructions. This warranty is void in the event of unauthorized repair or modification, or
removal or defacing of the product labeling.
For return approval and shipping information, contact the Service Department,
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224.
Except to the extent precluded by applicable state law, A.T.U.S. will have no liability for
any consequential, incidental, or special damages; any warranty of merchantability or
fitness for particular purpose expires when this warranty expires.
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
Outside the U.S.A., please contact your local dealer for warranty details.
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited, Old Lane, Leeds LS11 8AG England
www.audio-technica.com
P51464-EN
©2002 Audio-Technica U.S., Inc.
Externally-polarized (DC bias)
condenser
Cardioid
20-20,000 Hz
80 Hz, 12 dB/octave
–32 dB (25.1 mV) re 1V at 1 Pa*
100 ohms
145 dB SPL, 1 kHz at 1% T.H.D.;
155 dB SPL, with 10 dB
pad (nominal)
12 dB SPL
133 dB, 1 kHz at Max SPL
82 dB, 1 kHz at 1 Pa*
48V DC, 4.2 mA typical
Flat, roll-off;
10 dB pad (nominal)
12.7 oz (360 g)
6.69" (170.0 mm) long, 2.10"
(53.4 mm) maximum body
diameter
Integral 3-pin XLRM-type
AT8449 shock mount for
threaded stands; microphone
dust cover; protective carrying
case
Frequency Response
500
100
200
1k
2k
5k
10k
Frequency in Hertz
12" or more on axis
Roll-off
Printed in Japan
5
/
"-27
8
10 dB
20k
