Nauticam 83225 Instruction Manual

83225
Buoyancy Collar for WWL-1
Instruction Manual
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognise the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximise
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorised
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorised modifications and/or repairs of our products will automatically
invalidate the warranty.

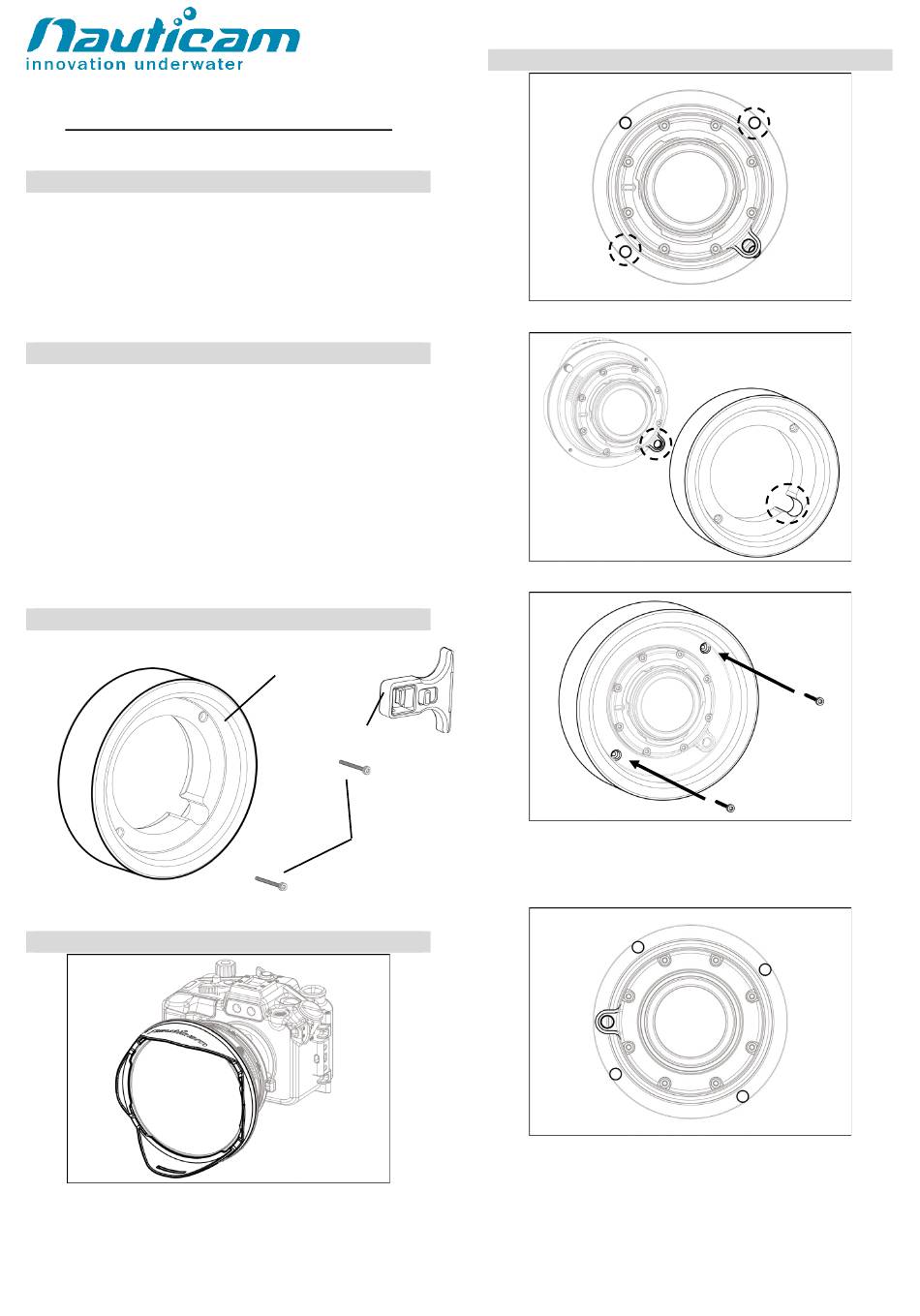

I P
DENTIFICATION OF ARTS
P
REPARATION
Mount the WWL-1 to the port or housing and adjust the lens hood to the
desired position.
Note: Please refer to the WWL-1 instruction manual on how to adjust the lens
hood.
Buoyancy Collar
Lens Release
Extension
Screws x2
M B
OUNTING THE UOYANCY
Remove the two diagonal screws that are not obstructed by the eyelet.
Align the groove on the collar with the eyelet of the WWL-1 and slide in.
Fasten the collar onto the WWL-1 with the two long screws provided.
Tips: Align one at a time, tighten slightly one of the screw and then the other.
Only tighten it when both screws are aligned. When aligning the screw, you
may lift up the collar to get better vision to the threaded hole.
In case a M67 mounting ring for WWL-1 is used, either pair of diagonal
screws can be removed.
--- continue on next page ---
C L
OLLAR TO THE ENS
Remove
Current as of 2016-06-21
