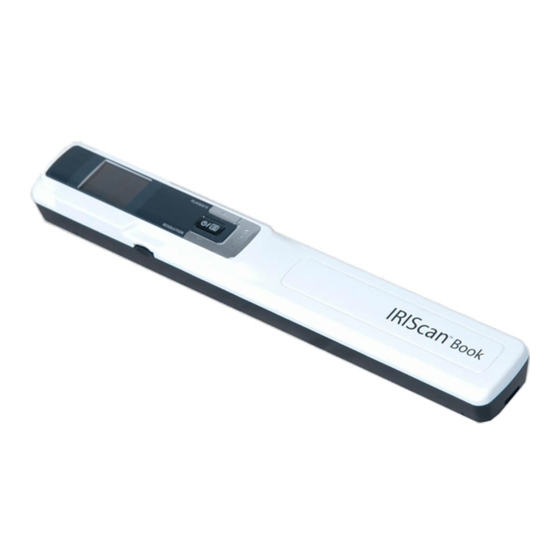

Quick User Guide - IRIScan™ Book 3
Getting Started
This Quick User Guide helps you get started with the IRIScan™ Book 3 scanner.
This scanner is supplied with the software application Readiris™ Pro.
Quick User Guide - IRIScan
Please read this guide before operating this scanner and its software. All information is subject to change without prior notice.
Table of Contents
Getting Started ............................................................................................................................................................................................. 1
1. Introduction ............................................................................................................................................................................................. 2
2. Software installation ................................................................................................................................................................................ 2
2.1 Registration and installation .............................................................................................................................................................. 2
2.2 Software activation ............................................................................................................................................................................ 3
3. Prepare the Scanner................................................................................................................................................................................. 4
3.1 Insert the included batteries .............................................................................................................................................................. 4
3.2 Insert the included microSD card ....................................................................................................................................................... 4
3.3 Format the microSD card ................................................................................................................................................................... 4
4. Choose the Scanner Settings .................................................................................................................................................................... 5
Overview of the Scanner Settings ............................................................................................................................................................ 6
5. Scan Documents ....................................................................................................................................................................................... 7
6. Transfer Scanned Documents to your Computer .................................................................................................................................... 9
6.1 Using the mini USB cable (Windows® and macOS®) .......................................................................................................................... 9
6.2 Using the microSD card adapter (Windows® and macOS®) ............................................................................................................. 10
6.3 Editing your scanned documents with Readiris™ ............................................................................................................................ 10
7. Technical Specifications ......................................................................................................................................................................... 11
7.1 Minimum System Requirements Windows® PC .............................................................................................................................. 11
7.2 Minimum System Requirements macOS® ....................................................................................................................................... 11
7.3 Scanner Specifications ..................................................................................................................................................................... 11
8. Troubleshooting ..................................................................................................................................................................................... 13
9. Legal Notices .......................................................................................................................................................................................... 14
Pro 5
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IRIS IRIScan Book 3
Summary of Contents for IRIS IRIScan Book 3
-
Page 1: Table Of Contents
Quick User Guide – IRIScan™ Book 3 Getting Started This Quick User Guide helps you get started with the IRIScan™ Book 3 scanner. This scanner is supplied with the software application Readiris™ Pro. Quick User Guide – IRIScan Pro 5 Please read this guide before operating this scanner and its software. -
Page 2: Introduction
The IRIScan™ Book 3 is designed to be used on its own, disconnected from any computer. The documents you scan are stored on the scanner's microSD card. Then, you can transfer them to your computer and turn them into editable documents thanks to the IRIS’... -
Page 3: Software Activation
Once the bundled Readiris™ Pro executable (.exe file) is downloaded successfully, you can launch it. Readiris™ Pro requires an activation that can be done automatically by following the instructions on screen: Activation process of a Readiris bundled with an IRIS scanner In case of troubles with the activation process, you can contact the IRIS Helpdesk. -
Page 4: Prepare The Scanner
Quick User Guide – IRIScan™ Book 3 3. Prepare the Scanner 3.1 Insert the included batteries 1. Open the battery compartment as shown in the image. TIP: watch our short video. 2. Insert the 3 alkaline batteries, minding the correct polarity. The correct polarity is shown inside the scanner. -
Page 5: Choose The Scanner Settings
Quick User Guide – IRIScan™ Book 3 4. Choose the Scanner Settings WARNING: before you try to access the scanner settings, make sure the provided microSD card is inserted in the card slot. 1. Press the button for 2 seconds to power on the scanner. The display lights up. 2. -
Page 6: Overview Of The Scanner Settings
Quick User Guide – IRIScan™ Book 3 Overview of the Scanner Settings Scanner Setting Icon Description Color mode IRIScan™ Book scans images in color or black-and-white. Resolution IRIScan™ Book scans images in a resolution of 300 dpi, 600 dpi or 900 dpi. Output format IRIScan™... -
Page 7: Scan Documents
Quick User Guide – IRIScan™ Book 3 5. Scan Documents WARNING: The IRIScan™ Book 3 is designed to scan one page at a time. It does not generate multi-page PDF files. Follow steps 2 to 5 below for each page that you scan. 1. - Page 8 Quick User Guide – IRIScan™ Book 3 TIPS: 1. In case you need to create multi-page PDF's: - Scan your pages one by one. - Transfer the image or single-page PDF files you scanned to your computer. - Use Readiris™ to generate multi-page PDF files. 2.
-
Page 9: Transfer Scanned Documents To Your Computer
Quick User Guide – IRIScan™ Book 3 6. Transfer Scanned Documents to your Computer There are two ways to transfer scanned documents to your computer: by using the mini USB cable and by using the microSD card adapter. 6.1 Using the mini USB cable (Windows® and macOS®) 1. -
Page 10: Using The Microsd Card Adapter (Windows® And Macos®)
Quick User Guide – IRIScan™ Book 3 6.2 Using the microSD card adapter (Windows® and macOS®) 1. Press the microSD card to unlatch it. Then remove it from the card slot. 2. Insert it in the provided microSD card adapter. 3. -
Page 11: Technical Specifications
Quick User Guide – IRIScan™ Book 3 7. Technical Specifications 7.1 Minimum System Requirements Windows® PC Operating System Windows® 10, Windows® 8.1, Windows 8®, and Windows® 7 1 GHz processor or higher 1 GB HD space 300 MB Hardware 1 free USB port 7.2 Minimum System Requirements macOS®... - Page 12 Quick User Guide – IRIScan™ Book 3 Display panel 1.4" TFT LCD USB Port USB 2.0 high speed External memory MicroSD card (TF Card) up to 32 GB 3 AAA alkaline or NiMh rechargeable batteries. Supported batteries Or USB powered.
-
Page 13: Troubleshooting
Quick User Guide – IRIScan™ Book 3 8. Troubleshooting Problem Cause Solution Low battery power. Replace the batteries. I cannot turn on the scanner. Battery not inserted properly. Insert the batteries properly. No batteries inserted. Connect the scanner to a PC. There is no microSD card in the card Insert a microSD card. -
Page 14: Legal Notices
If the product overheats or produces smoke or an unusual odour, discolours or becomes deformed in an abnormal way, immediately turn off the scanner, remove the batteries where applicable, and disconnect the cables. Stop using the scanner and contact your dealer or IRIS customer support to receive instructions on the procedure to follow. •... - Page 15 Shielded cables must be used with this equipment to maintain compliance with FCC regulations. IC RSP-100 Hereby, IRIS s.a declares that their “RIScan™ Mouse Wifi, IRIScan™ Book Executive, IRISPen™ Air” devices are in compliance with the essential requirements and other relevant provisions of IC RSP-100 Canadian directive.
- Page 16 Quick User Guide – IRIScan™ Book 3 Disposal of Waste Equipment by Users in Private Households in the European Union This symbol on the product or on its packaging indicates that the product can not be disposed of with your other household waste. Instead it should be sent to appropriate facilities for recovery and recycling in an effort to protect human health and the environment.
