VIOMI S9 User Manual

Robot vacuum uv-automatic dirt disposal
Hide thumbs

Advertisement

Table of Contents

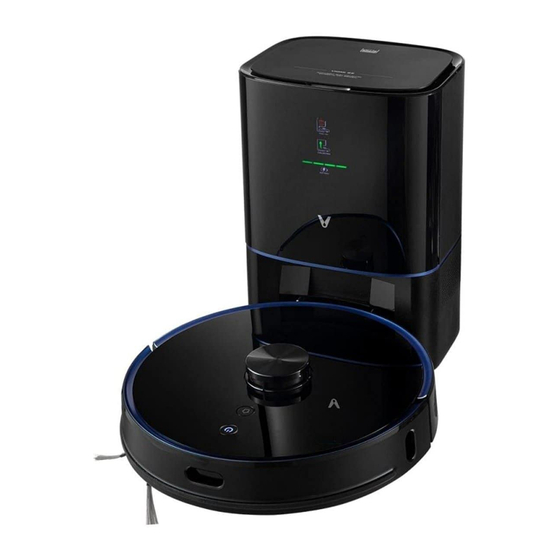

Viomi Robot Vacuum S9 UV-Automatic Dirt Disposal
User Manual
Please read this manual carefully before use and keep it properly.
This product shall be operated only in location at altitude below 2,000 meters.
Please read this manual carefully to ensure proper and safe use of the product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIOMI S9

Summary of Contents for VIOMI S9

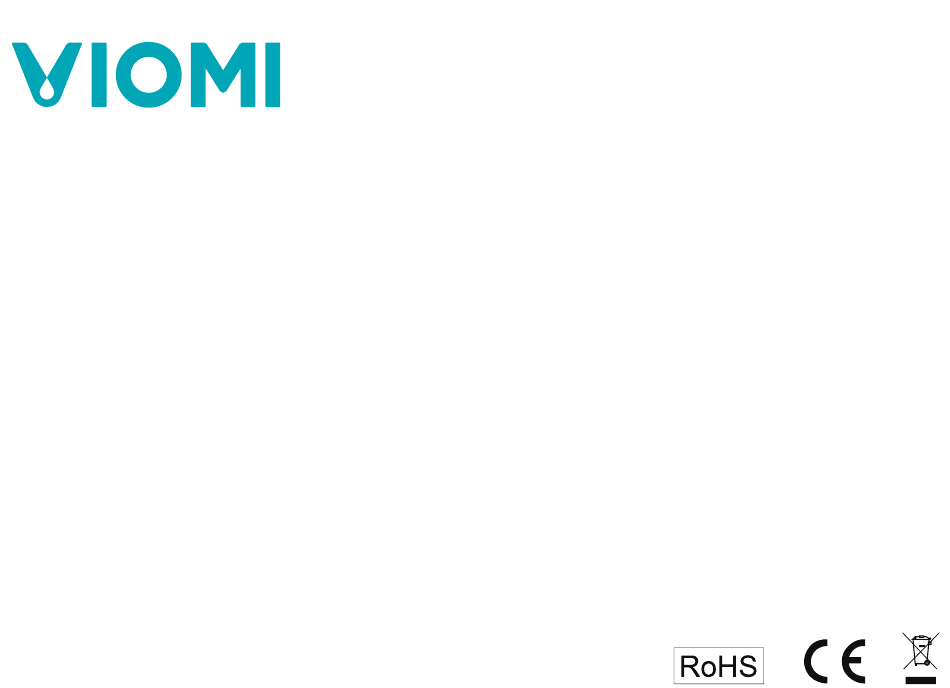

  • Page 1 Viomi Robot Vacuum S9 UV-Automatic Dirt Disposal User Manual Please read this manual carefully before use and keep it properly. This product shall be operated only in location at altitude below 2,000 meters. Please read this manual carefully to ensure proper and safe use of the product.
  • Page 2 Considerations Operation Restrictions Ba ery and Charging • This product shall be used only for cleaning of ground surface in • Do not use any third-party ba ery, power adapter and charging dock. residential house, but not for outdoors, other surface (e.g. couch) or •...

  • Page 3: Product Introduction

    Product Introduction Smart recharging Short press the bu on to start smart recharging. The LED indicator keeps flash slowly in yellow color, indicating recharging/ low ba ery level. Flicker in yellow color, indicating recharging. Power on/off Global sweeping Short press the bu on to start/cease sweeping. Long press the bu on for 3 seconds to power on/off.
  • Page 4 Main machine and sensor Cliff sensor Laser radar Main brush cover Surface cover Bu on Rolling brush IR sensor Le caster Collision sensor Right caster Integrated automatic Universal caster dirt disposal/water tank UV Light . Charging electrode Side brush...
  • Page 5 2-in-1 Dust Compartment with Water Tank Automatic dirt disposal (Two-in-one for dust collection and charging) Inlet Top cover Water Tank Remove the top cover. Mount/remove dust bag. Dust Compartment release bu on Dust Compartment clamp Dust Compartment Dust bag holder Mop holder IR lens Recharging/automatic dirt...

  • Page 6: Instructions On Installation

    Instructions on Installation 1.Install the automatic dirt disposal (1) Place automatic dirt disposal on flat floor near wall, and connect the plug to a approved socket and switch power supply on. Place it near wall Blower filter (2) Make sure there is no obstacle within 1.2 m in front and 0.5 m at both Dust bag handle sides of it.
  • Page 7 Operation Instructions 1.Switch on/off 5.Network configuration and firmware update Long press power bu on for 3 seconds to switch machine on/off. Download App by scanning the QR code on the machine and reset WiFi Power LED indicator flashes slowly for 4 seconds and then lights on by following the tips on APP.
  • Page 8 Operation Instructions (1) Place the vacuum-mop on flat floor indoors. (4) Mount the 2-in-1 Dust Compartment with Water Tank into the Remove the limit protector at both sides of bumper. machine. Remove (5) Long press bu on for 3 seconds to switch the vacuum-mop on, and then short press bu on to recharge it.

  • Page 9: How To Connect To Wi-Fi

    How to connect to Wi-Fi Maintenance 2-in-1 Dust Compartment with Water Tank This product works with Mi Home/Xiaomi Home app *. Control your (1) Press Dust Compartment release bu on and pull the tank out to device, and interact it and other smart home devices with Mi remove it.
  • Page 10 (4) Clean the filter screen and clamp with cleaning brush. Tips: Clean the mop regularly, since contaminated mop will impair sweeping performance. Be sure to remove the mop and clean, and then dry it by twisting. Do not clean it with it mounted to tank, or otherwise waste water may block the filter element.
  • Page 11 (2) Cut off hairs around the brush with knife, and clean the main brush (2) Mount side rush a er cleaning, or replace the side brush. with the other end of the knife. Installation (3) Mount the main brush and main brush cover and lock the clamp. Clean/replace side brush Tips: It is recommended to replace side brush every 3-6 months to ensure proper cleaning performance.
  • Page 12 Clean dust duct Clean sensor It is recommended to weekly clean each sensor with clean and so cloth In case that the FULL DUST BAG icon is still in orange color even a er to ensure proper cleaning performance. the bag is replaced, it is recommended to disconnect power plug, turn the charging pile upside down to check whether dust duct is blocked by Robot vacuum: any foreign ma er.

  • Page 13: Specifications

    Specifications Automatic dirt disposal charging dock: Main machine IR lens × 2 Automatic dirt disposal charging probe × 2 Name Viomi Robot Vacuum S9 UV-Automatic Dirt Disposal Model number V-RVCLMD28D / V-RVCLMD28C Dimensions φ350mm×98mm Rated voltage 14.4V Rate power IR lens...

  • Page 14: Troubleshooting

    Trouble Shooting Fault Prompt Solution Problem Solution Error #1. Make sure the Check for or remove any foreign Low ba ery level. Keep the machine close Cleaner fails to start up， laser ranging sensor is not ma er around laser radar, or relocate to charging dock and try again.
  • Page 15 Manufactured by: Foshan VIOMI Electrical Technology Co., Ltd. (a Mi Ecosystem company) Address: 2nd Floor, No.1 Building And 4th Floor of No.7 Building, North of Four Xinxi Street, Lunjiao, Shunde, Foshan, Guangdong, P.R. China...
