Summary of Contents for SycoTec easyDrive TV 4504

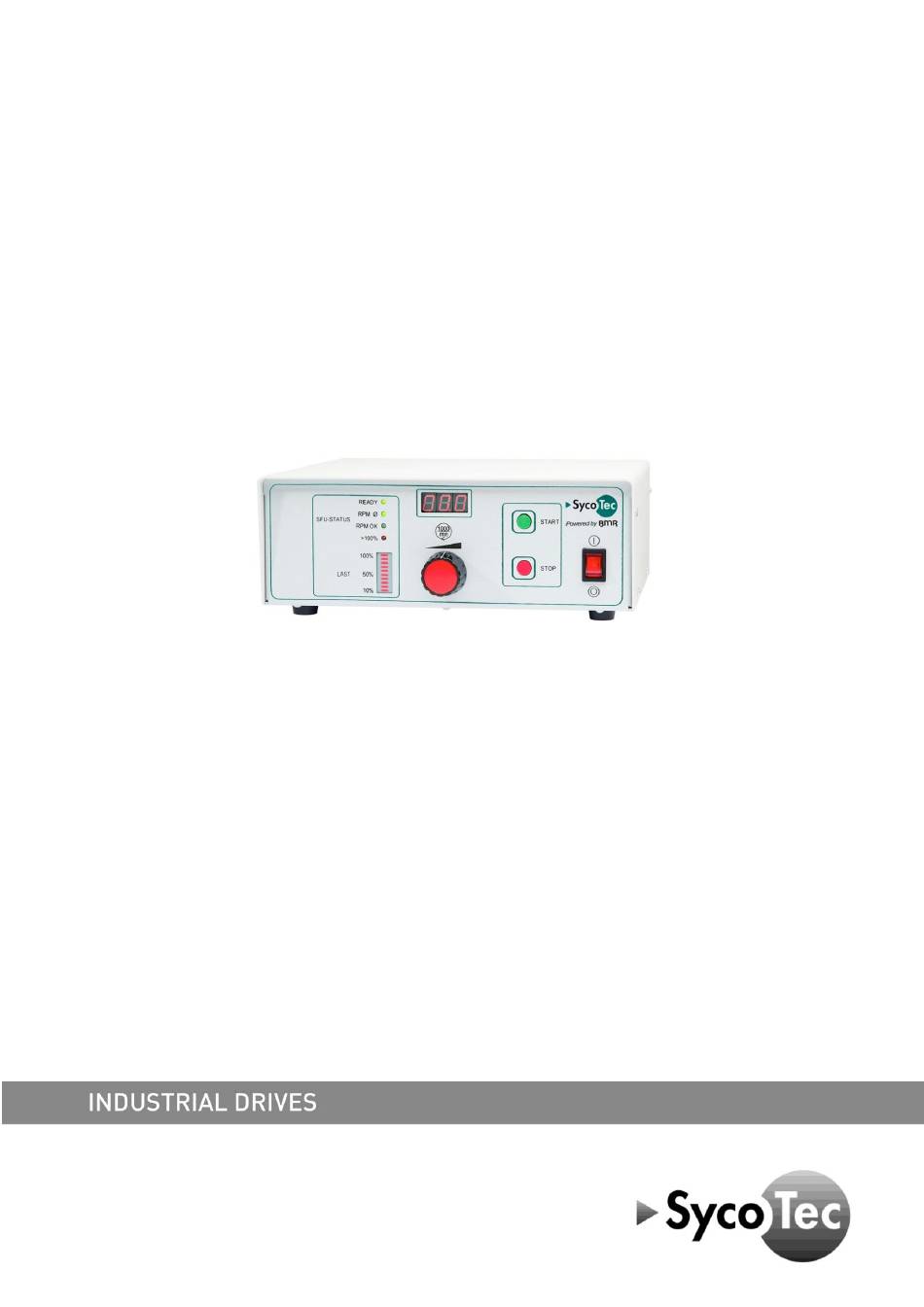

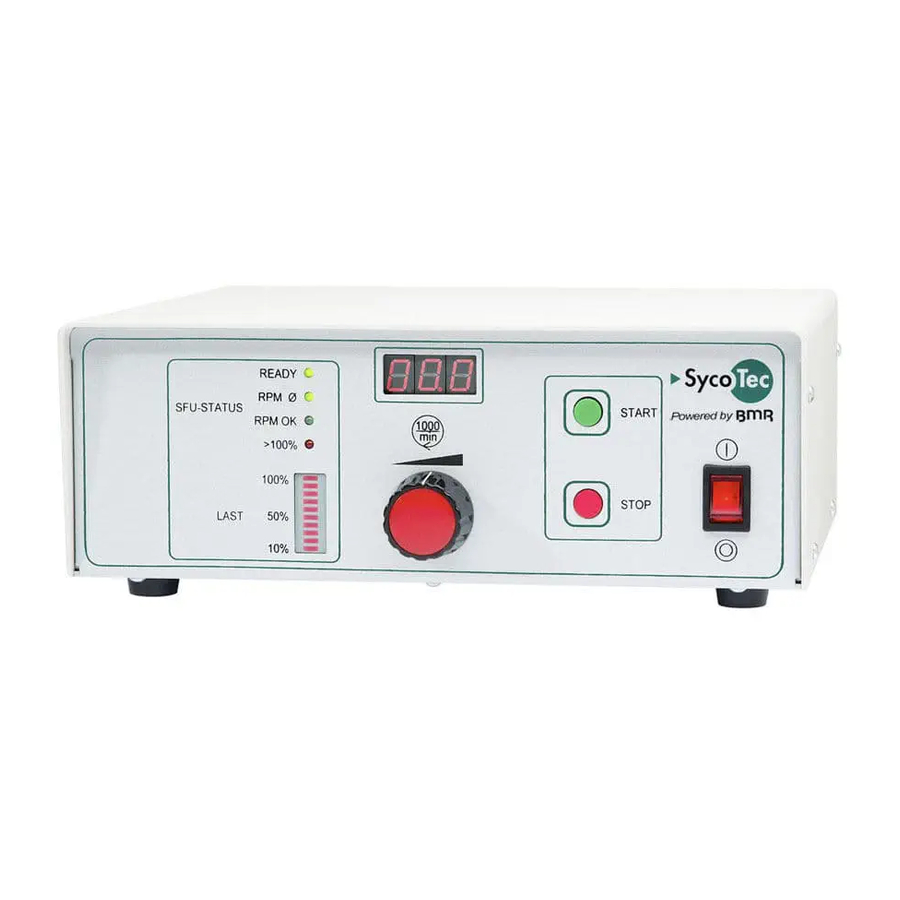

- Page 1 Short Instruction For Use HF Inverter e@syDrive® TV 4504...
-
Page 2: Table Of Contents
9.0 Status Display and Error Messages 10.0 Safety Functions Warranty Conditions CE Declaration of Conformity Distribution: Manufacturer: SycoTec GmbH & Co. KG BMR GmbH Wangener Strasse 78 Walpersdorfer Straße 38 88299 Leutkirch, Germany D 91126 Schwabach Phone +49 7561 86-0 Tel.:... -
Page 3: Scope Of Supply
1.0 Scope of Supply HF Inverter e@syDrive® TV 4504 Material no. 2.001.9226 (Drive System SFU 0200/2) SycoTec – Short Instruction For Use Material no. 2.001.9377 HF Inverter e@syDrive® TV 4504 BMR – CD "Manuals & Software" Mains cable, length approx. 2 m 15-pole female Submin D connector 2.0 Connections... -
Page 4: Operation
5.0 Operation 5.1 Assignment of the Spindle Characteristics Assignment Type of motor spindel 4010, 4025, 4026, 4029 4033 AC, 4033 AC-ESD 4033 AC "2ST-60", 4033 AC-ESD-LS "2ST-60" 4033 AC-LN15, 4033 AC-ESD-LN15 4015 DC, 4015 DC-G, 4015 DC-M, 4015 DC-R 4020 DC 4025 DC-T, 4025 DC-T "Sperrluft"... -
Page 5: Digital And Analog Inputs / Outputs
6.0 Digital and Analog Inputs / Outputs Name Meaning Set Value Rotational Speed (0-10V) DIN1 Start / Stop (24V) DIN2 Locking (Emergency Stop) (24V) DIN3 Direction of Rotation (24V) +24 V Auxillary voltage +24 V to Pin 8 Ground AOUT Effective Load 1 V = 10% Common Relay Relay 1 (normally closed) -
Page 6: Digital Outputs
7.2 Digital Outputs With the "relays outputs" button assign the desired message to the relay. Confirm with "OK". 7.3 Analog Inputs With the "analog inputs" button for the duty speed setting select the analog input and set the required scaling or select "poti frontpanel". Confirm with "OK". 7.4 Analog Outputs With the "analog outputs"... -
Page 7: Write Configuration Into The Inverter
7.5 Write Configuration into the Inverter To write the configured inputs and outputs into the inverter select "Write Project Data (F5)". 8.0 Example of Remote Control Element 9.0 Status Display and Error Messages • The current rotational speed is displayed on a 3 digit 7 segment LED. •... -
Page 8: Safety Functions
12 months from the date of sale certified by the vendor. In the event of justifiable complaints, SycoTec shall supply spare parts or carry out repairs free of charge under warranty. SycoTec accepts no liability for defects and their consequences which have arisen or could... - Page 10 (DE = original)
