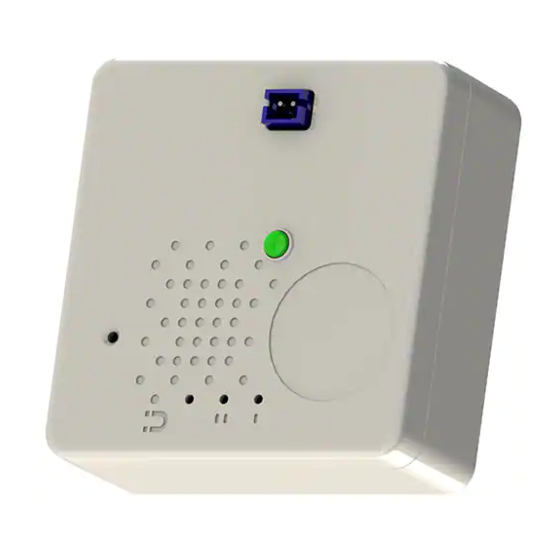

LoRa IoT Smart Room Sensor
User Guide
D
T
:
OCUMENT
YPE
D
N
:
OCUMENT
UMBER
D
V
:
OCUMENT
ERSION
P
N
:
RODUCT
AME
P
C
:
RODUCT
ODE
R
D
:
ELEASE
ATE
© 2019 TEKTELIC Communications Inc., all rights reserved.
All products, names, and services are trademarks and registered trademarks of their respective companies.
TEKTELIC Communications Inc.
th
7657 10
Street NE
Calgary, AB, Canada T2E 8X2
Phone: (403) 338-6900
User Guide
T0006338_UG
1.5
LoRa IoT Smart Room Sensor
T0006115 (Base Model, NA)
T0006116 (PIR Model, NA)
T0006117 (Base Model, EU)
T0006118 (PIR Model, EU)
T0006161 (Base Model, CN)
T0006162 (PIR Model, CN)
T0006163 (Base Model, DN)
T0006164 (PIR Model, DN)
February 25, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LoRa IoT Smart Room Sensor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TEKTELIC Communications LoRa IoT Smart Room Sensor

Summary of Contents for TEKTELIC Communications LoRa IoT Smart Room Sensor

  • Page 1 T0006163 (Base Model, DN) T0006164 (PIR Model, DN) February 25, 2020 ELEASE © 2019 TEKTELIC Communications Inc., all rights reserved. All products, names, and services are trademarks and registered trademarks of their respective companies. TEKTELIC Communications Inc. 7657 10 Street NE...

  • Page 2: Revision History

    0.3 and 0.4. • Updated the document format. February 25, 2020 Release Carter Mudryk Updated LED Behaviour section to include typical dead battery behaviour. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 2 of 30...

  • Page 3: Table Of Contents

    Required Equipment ...................... 23 Power Up/Down Procedure ................... 23 Operation, Alarms, and Management ................... 24 Configuration ........................24 Default Configuration ..................... 24 LED Behaviour ........................ 24 LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 3 of 30...
  • Page 4 Reset Button Function ....................25 Battery Replacement ......................26 Compliance Statements ......................28 References ..........................30 LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 4 of 30...

  • Page 5: List Of Tables

    Table 1-2: Smart Room Sensor Functional Variants ..............8 Table 1-3: Smart Room Sensor Specifications ................10 Table 1-4: Smart Room Sensor Interface Connector Types ............18 LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 6: List Of Figures

    Figure 2-1: The Smart Room Sensor external connector signals..........21 Figure 2-2: The cable clip to be attached to the Base model as shown, should a cable be connected to the External Connector................... 22 LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 7: Product Description

    KR920 EU Base (non-PIR) T0006117 EU868 IN865 RU864 EU PIR T0006118 EU868 IN865 RU864 CN Base (non-PIR) T0006161 CN470 CN PIR T0006162 CN470 LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 7 of 30...

  • Page 8: Table 1-2: Smart Room Sensor Functional Variants

    Figure 1-1 illustrates the two Smart Room Sensor functional variants. Both variants share the same external dimensions (42mm x 42mm x 17mm). LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 9: Physical Interfaces

    Also, the PIR variant does not have the External Connector. Not shown in Figure 1-2, the Base variant has two internal moisture probes for moisture (leak) detection. The PIR variant does not have these probes and does not offer moisture detection. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 10: Specifications

    42 mm x 42 mm x 20 mm (with bracket assembly) Weight 25 g CR2477 Battery operated, with FET based reverse polarity Power source protection. Network technology/Frequency band LoRaWAN in the following regions: LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 10 of 30...
  • Page 11 Temperature: 23°C Tx power: 14 dBm LoRa SF: Tx periodicity: 4 times/hour for 10 hours and 2 times/hour for 14 hours (= 68 times/day) LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 11 of 30...

  • Page 12: Temperature And Relative Humidity Transducer

    The impact alarm is cleared after a grace period of no impact alarms. Both acceleration and impact alarm functions can be independently disabled or enabled. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 13: Ambient Light Transducer

    5 m x 4 m. This corresponds to X-angle and Y-angle being approximately 86° and 74°. In another test, the Z- range with the wall-mount lens for a walking person within the center of the FoV was measured to be about 4 m. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5...

  • Page 14: Figure 1-3: The Pir Transducer Theoretical Sense Pattern With The Ceiling-Mount Lens

    Any deformation of the lens will distort the sense pattern. Figure 1-3: The PIR Transducer theoretical sense pattern with the ceiling-mount lens. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 15: Figure 1-4: The Pir Transducer Theoretical Sense Pattern With The Wall-Mount Lens

    Figure 1-4: The PIR Transducer theoretical sense pattern with the wall-mount lens. 5 m View 4 m View LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 15 of 30...

  • Page 16: Magnetic Switch

    In the analog mode, the External Connector is connected to a 10-kΩ thermistor (recommended CWF3AA103G3380 or NTCAIMME3) for remote temperature sensing. The Sensor in this mode LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.
  • Page 17 = 10 and �� = 273.15 + 25 = 298.15. 3. Steinhart–Hart Equation: In this method the temperature of the thermistor, in K, is given as: LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 17 of 30...

  • Page 18: Moisture Detection Transducer

    A calibration command can be sent to the Sensor to set a "dry" condition. The alarm point can also be set directly as a value. Sample period for moisture detection can be set to one of 4 LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5...
  • Page 19 16, 32, 64, or 128 seconds. Smaller sample periods (faster sampling) uses more energy and shortens battery life. The default sample period is 32 seconds. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 19 of 30...

  • Page 20: Installation

    The following should be considered during the unpacking of a new Smart Room Sensor: 1. Inspect the shipping carton and report any significant damage to TEKTELIC. 2. Unpacking should be conducted in a clean and dry location. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 21: Required Equipment For Installation

    EMI performance of the Sensor. The cable length in any mode MUST NOT exceed 3 meters. Also ensure that the cable connection is not routed outdoors. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 22: Figure 2-2: The Cable Clip To Be Attached To The Base Model As Shown, Should A Cable Be Connected To The External Connector

    Figure 2-2: The cable clip to be attached to the Base model as shown, should a cable be connected to the External Connector. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc. Page 22 of 30...

  • Page 23: Power Up And Commissioning, And Monitoring

    To turn off the device the battery must be removed, but to simply reset the device, the external reset button can be pushed; see Section 4.4 for description of the reset function. Refer to Section 5 Battery Replacement for instructions on battery removal. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 24: Operation, Alarms, And Management

    3. Immediately after the boot pattern, the join procedure will begin. During this time the System LED will blink continuously until the sensor has joined a network. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 25: Reset Button Function

    Figure 1-2). The button should not be pushed hard. The reset is instant, i.e. the button does not need to be kept pushed. The reset restarts the microprocessor. All the FW load and configuration parameters in the Flash are remembered during the reset. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 26: Battery Replacement

    • Remove the two screws on the bottom of the case. • While holding the sensor with the bottom facing up, remove the bottom of the case by gently prying the case apart. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.
  • Page 27 Push the cell into the holder until it hits the closed end of the holder. • Check for LED activity. If the LEDs are lit, the battery replacement was successful. • Replace the sensor cover and insert the two screws. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 28: Compliance Statements

    This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.
  • Page 29 ⚠ WARNING: This product can expose you to chemicals including lead, nickel & carbon black, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5 TEKTELIC Communications Inc.

  • Page 30: References

    7 References [1] LoRa Alliance, "LoRaWAN 1.02 Regional Parameters," Revision B, Feb 2017. [2] TEKTELIC Communications Inc., "LoRa IoT Smart Room Sensor Technical Reference Manual (TRM)," ver. 1.0. [3] LoRa Alliance, "LoRaWAN Specification," ver. 1.0.2, rev. B, Jul 2016. LoRa IoT Smart Room Sensor User Guide T0006338_UG Version 1.5...
