Underwater Lights USA Sea Vision SV14 LED Product Information

T

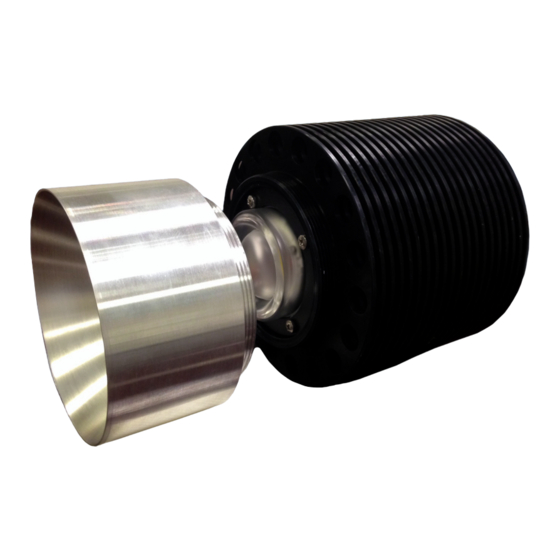

he Sea Vision SV14 LED weld in model
for aluminum or steel hulls can be
installed in the transom or the hull, it utilizes
high density LED chip technology which
combined with the latest award winning
silicone optics produce an industry leading
lighting effect. Additionally the silicone optic
protects the LED chip from moisture thus
ensuring a long life and overcoming one of
the major reasons for light failure. The lights
can be welded at adjustable angles to suit all
hull shapes. The hull shape and positioning
will dictate the angle of the light you require,
angles available are 0 to 50 degree. The
vessel must be hauled out for installation
although any maintenance can be done in
the water from within the hull. The light body
is designed to act as a cofferdam / second-
ary containment for additional security.
Application for: Aluminum or Steel hulls
––––––––––––––––––––––––––––––––––––––––––––––
Light source: High density LED array
Available in: White, blue, green, red or RGB
––––––––––––––––––––––––––––––––––––––––––––––
approx. 40,000 hours plus
Life length:
––––––––––––––––––––––––––––––––––––––––––––––
21,685 in white
Lumens:
––––––––––––––––––––––––––––––––––––––––––––––
Kelvin colour temp: 6500 in white
––––––––––––––––––––––––––––––––––––––––––––––
Glass lens: Borosilicate glass
Thickness:
12.7mm / 0.5"
Diameter: 58mm / 2.3"
––––––––––––––––––––––––––––––––––––––––––––––
Power supply: 90 – 295 VAC 50/60Hz
1.1 – 0.45 amps
––––––––––––––––––––––––––––––––––––––––––––––
Casing material: Aluminum 5086 or Stainless Steel 316L
––––––––––––––––––––––––––––––––––––––––––––––
Angles available: Flush
30 degree
38 degree
50 degree
———————————————————————
SV14 LED technical specifications
Only required between the light and driver
Cable:
(maximum distance 16 feet / 5 meters).
Marine grade electrical cable 18/2 stranded
copper wire. Normal ships cable can be used
from the ballast to the power supply.
———————————————————————
Code: SV14 LED
———————————————————————
Total shipping weight: Approx. 25 – 50 lbs
———————————————————————
Installation: Recommended at least 10" (250mm) below the
waterline between 3 – 8 feet (1 – 2.5 meters)
apart.
This is a guideline only, for specific requirements please contact us.
———————————————————————
All information is subject to change without prior notice,
please confirm details prior to ordering.
