T

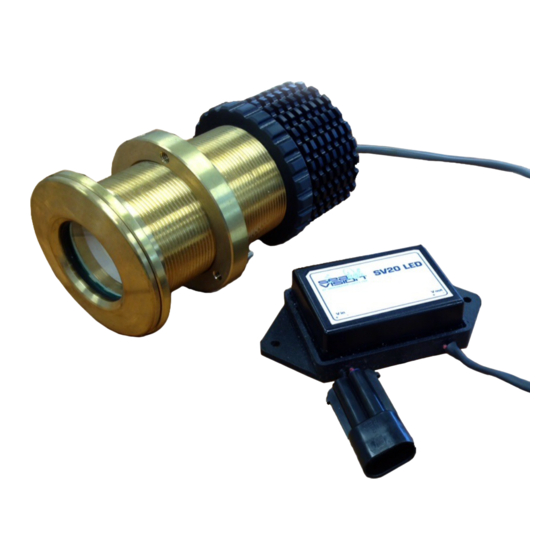

he SV20 LED is the perfect light for the small to mid size boater that
requires the reliability and serviceability of a thru-hull fixture. The
COB LED chip , the latest development in this technology , produces an
industry leading 3040 lumens creating an amazing lighting effect for its
size. The aluminum/bronze housing, previously used in the SV20 HID,
has been sold worldwide to the leading builders for many years with
proven reliability. Lights can be serviced from the inside so hauling to
work on the lights is not required.
Application for:
GRP/fiberglass/wood hulls
———————————————————————
Lamp:
High density COB LED
——————————————————————
approx. 40,000 hours plus
Life length:
———————————————————————
3040
Lumens:
———————————————————————
Kelvin colour temp: 5000
———————————————————————
Glass lens:
Borosilicate glass
Thickness:
9.5mm / 0.38"
Diameter:
41mm / 1.61"
———————————————————————
Power supply:
12VDC nominal (18VDC max)
4.2 amps continuous
24 VDC nominal (32VDC max)
2.0 amps continuous
———————————————————————
Casing material:
Marine Bronze
Dimensions:
Flange diameter: 80 mm (3.15")
Body length: 159mm (6.26")
———————————————————————
Angles available: Flush
———————————————————————
Weight:
2kg / 4.5lbs
———————————————————————
SV20 LED technical specifications
Code:
SV20 LED
———————————————————————
Driver:
12VDC or 24VDC
———————————————————————
Dimensions:
Length: 122mm / 4.8"
Width: 60mm / 2.36"
Depth: 29mm / 1.14"
———————————————————————
Total shipping weight: 112 grams / 0.25lbs
———————————————————————
Recommended at minimum 6" (152 mm) below
waterline between 3 - 6 feet (1 - 2 meters)
apart. (60mm) 2.36" cut out hole
———————————————————————
Note: Please specify voltage when ordering.
All information is subject to change without prior
notice, please confirm details prior to ordering.
3406 SW 26th Terrace, C-6/7, Fort Lauderdale, FL 33312 USA
T. 954 760 4447 Toll Free 1 866 772 0130 F. 954 525 3261
sales@seavision.com www.seavision.com
