Summary of Contents for Magic Chef M38COD

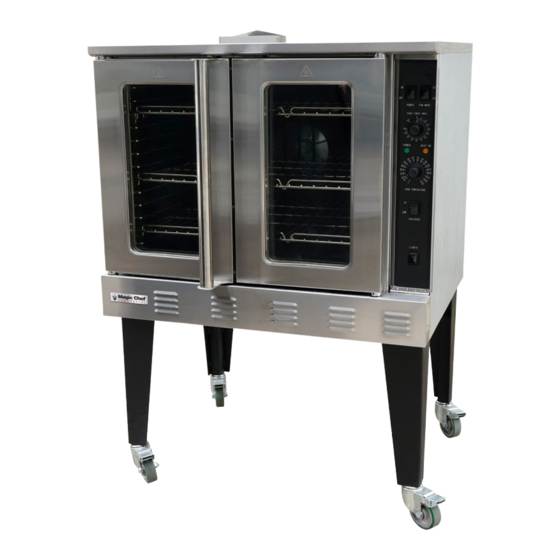

- Page 1 Commercial Gas Convection Oven User's Manual Model M38COD PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR COMMERCIAL STOCKPOT RANGE AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a Magic Chef Commercial product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following: Registering your product will allow us to contact you regarding a safety notification or product update. -
Page 3: Table Of Contents
CONTENTS PRODUCT REGISTRATION ........... . . 2 PRECAUTIONS . -
Page 4: Precautions
PRECAUTIONS EXPLANATION OF SYMBOLS WARNING Hazards or unsafe practices which COULD result in severe personal injury or death. CAUTION Hazards or unsafe practices which COULD result in minor personal injury or property damage. WARNING: Read and understand all safety precautions. Failure to follow all instructions described in this user manual may result in electric shock, fire and/or serious personal injury. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY IN STRUCTIONS WARNING Hazards or unsafe practices which COULD result in severe personal injury or death. CAUTION Hazards or unsafe practices which COULD result in minor personal injury or property damage. IMPORTANT In the event a gas odor is detected, shut down units at main shutoff valve and contact the local gas company or gas supplier for service. - Page 6 22. The appliance is strictly for professional use and must be used by qualified personnel. 23. The installation, start-up and maintenance of the appliance must be carried out by qualified personnel. 24. Installation must be done in accordance with all local and federal codes. The manufacturer is not responsible for damages due to an incorrect installation, bad maintenance or incorrect use.
-
Page 7: Specifications
Gas Type Dimensions Model Net Weight (W x H x D) Pressure Pressure (PSI/W.C.) (PSI/W.C.) 38.2” x 57.8” x 40.1” 0.144 PSI 0.36 PSI 10” 408 lbs. M38COD 54,000 54,000 970 x 1468 x 1019 (mm) 4” W.C. W.C. (185 kg) -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS CAUTION : Read all instructions before installing BEFORE INSTALLING 1. Remove all packing material and tape, as well as any protective plastic from the equipment. 2. Place the equipment in the desired position and height. 3. Install the four (4) legs onto the equipment. 4. - Page 9 ELECTRICAL CONNECTION Your oven is supplied for connection to a 115V, single phase grounded circuit. The electric motor, oven lights, indicator lights and control circuits are connected through an electric supply cord found at the rear of the oven. Warning: This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.
- Page 10 INSTRUCTIONS FOR FIELD CONVERSION TO LPG GAS WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing equipment. WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction.
- Page 11 GAS VALVE CONVERSION 1. Remove the regulator cap screw and pressure regulator adjusting screw. (See Figure 3) 2. Remove the existing regulator spring from the regulator housing. 3. Insert the replacement spring into regulator housing 4. Install the pressure regulator adjusting screw and give it eight (8) full turns.
- Page 12 • Example B Installation Plate • Example C Warning Label fixed to side of the unit...
- Page 13 OPERATION CONTROL PANEL Power Switch: Fan Mode: Main power supply to this oven In COOK mode, the fan runs continuously unless the door is open. In COOL mode, the fan runs continuously even if the doors are Cook Timer: open. This is to cool down the unit Turn knob to set cooking time.
-
Page 14: Care And Maintenance
Wait until the HEAT ON indicator cycles on and off three times, indicating that the pre-set temperature has been reached. Open the oven doors, load the food to be cooked into the oven, and close the doors. Set the cook timer as desired (up to 55 minutes). Be aware that the timer does not control the temperature of the oven. -
Page 15: Troubleshooting
TROUBLESHOOTING Before requesting any service on your unit, please check the following points: Problem Possible Cause Solution Defective Ignitor Call Customer Service Power switch on control panel is off Turn Power Switch to ON No Heat Doors are open Close Doors Defective door switch Call Customer Service Gas valve set to the closed position... -
Page 16: Limited Warranty
Model Parts & Labor Parts & Labor Type of Service Type of Service M38COD One Year One Year In Field Service In Field Service For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service For Service or Assistance please call 888-775-0202 or visit us on the web at www.mcappliance.com to request warranty service... - Page 17 CNA International, Inc. d/b /a MC Appliance Corporation. All rights reserved. Magic Chef® logo is a registered trademark of CNA International, Inc. www.mcappliance.com Printed in China...
