7/23/2020

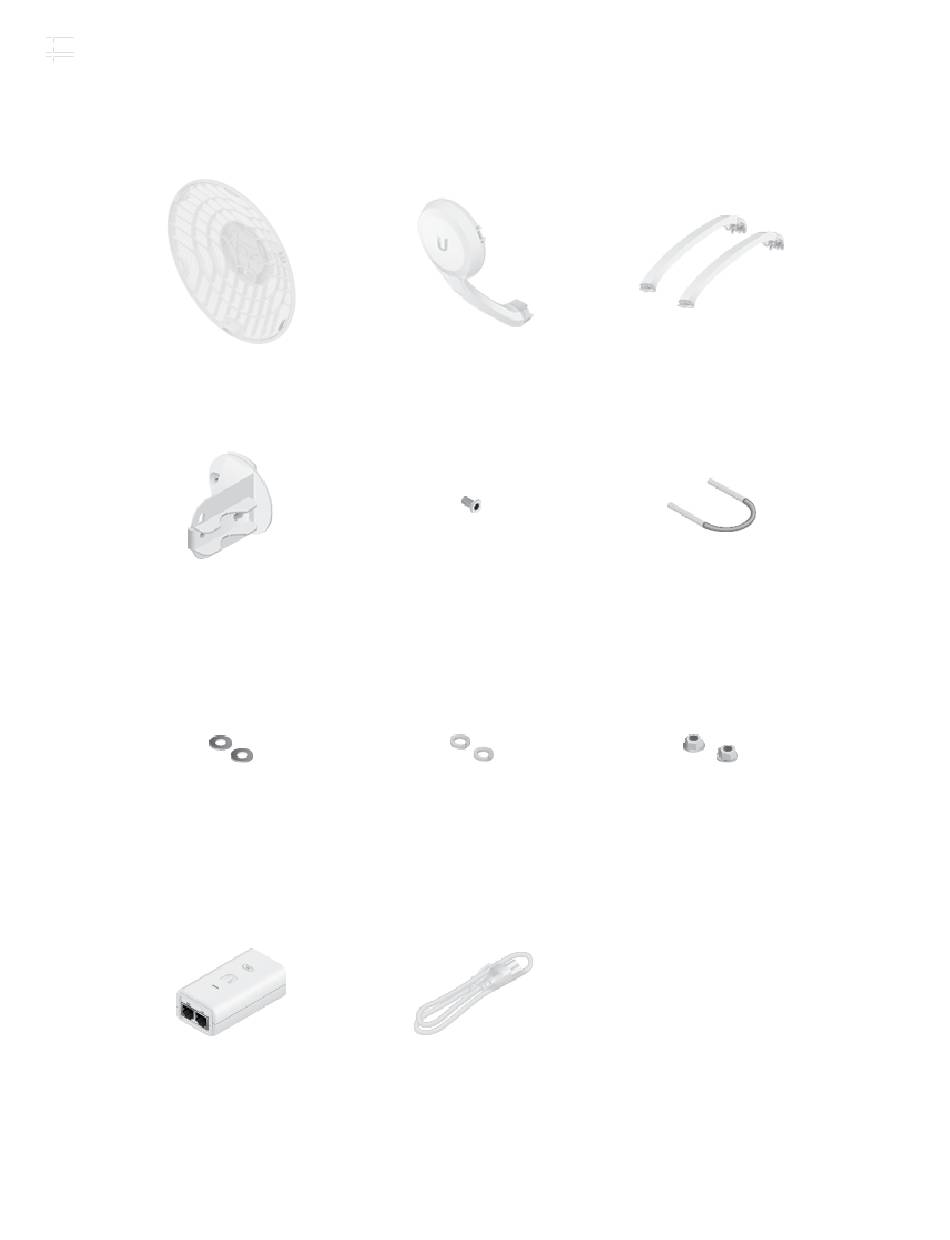

Package Contents
Mounting Bracket
Flat Washers (Qty. 2)
Gigabit PoE (24V, 0.5A) with
Mounting Bracket
Installation Requirements
https://dl.ubnt.com/qsg/AF60/AF60_EN.html
AF60 Quick Start Guide
Dish
Lock Washers (Qty. 2)
AF60 Quick Start Guide
Main Arm
Screw
Power Cord
Stabilizer Arms (Qty. 2)
U-Clamp
Flange Nuts (Qty. 2)
1/23

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti AF60

Summary of Contents for Ubiquiti AF60

  • Page 1 7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide Package Contents Dish Main Arm Stabilizer Arms (Qty. 2) Mounting Bracket Screw U-Clamp Flat Washers (Qty. 2) Lock Washers (Qty. 2) Flange Nuts (Qty. 2) Gigabit PoE (24V, 0.5A) with Power Cord...

  • Page 2: Hardware Overview

    7/23/2020 AF60 Quick Start Guide Clear line of sight between airFiber AP and station AF60 Quick Start Guide Clear view of the sky for proper GPS operation Vertical mounting orientation Mounting point: At least 1 m below the highest point on the structure...
  • Page 3 7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide GPS LED The LED will light blue when the GPS signal strength Blue is sufficient. This requires a minimum of three GPS satellite connections. 60G LED Blue The LED will light blue when the 60 GHz link is ready.

  • Page 4: Installation Overview

    Ethernet connection is made to the Ethernet port and AF60 Quick Start Guide flash when there is activity. Power LED Flashing White Bootup in progress. Ready for use, not connected to Ubiquiti® Network White Management System (UNMS™). See “UNMS Management”. Blue Ready for use, connected to UNMS.

  • Page 5: Configuring The Settings

    7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide Configuring the Settings The device is set to DHCP by default, so it will try to automatically obtain an IP address. If that fails, it will use the default fallback IP address, 192.168.1.20. Proceed to the appropriate section, “DHCP”...
  • Page 6 7/23/2020 AF60 Quick Start Guide 1. Launch your web browser. Type the appropriate address in the address field. AF60 Quick Start Guide Press enter (PC) or return (Mac). 2. Select your Country and Language. You must agree to the Terms of Use to use the product.
  • Page 7 7/23/2020 AF60 Quick Start Guide 7. Configure each airFiber radio with a unique IP address: AF60 Quick Start Guide a. Click the icon. b. Review the Network settings to ensure that each airFiber radio has a unique IP address. Each can get its IP address via DHCP, or use a static IP address.

  • Page 8: Installation

    7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide 7. Configure the following settings: a. For one airFiber radio, enable Access Point mode. For the other airFiber radio (the Station), keep Access Point disabled. b. Enter a name in the SSID field. This must be the same on both the AP and the Station.
  • Page 9 7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide Optional Attach the stabilizer arms for added support. (This is recommended for long-range installations.) https://dl.ubnt.com/qsg/AF60/AF60_EN.html 9/23...
  • Page 10 7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide https://dl.ubnt.com/qsg/AF60/AF60_EN.html 10/23...
  • Page 11 7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide Note: The AF60 can mount on either side of the pole. This section shows the AF60 mounted on the left; the procedure for mounting on the right is similar. Left Right https://dl.ubnt.com/qsg/AF60/AF60_EN.html...
  • Page 12 7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide Note: Rotate the Mounting Bracket clockwise until it locks into position. https://dl.ubnt.com/qsg/AF60/AF60_EN.html 12/23...
  • Page 13 7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide (Pole not shown) https://dl.ubnt.com/qsg/AF60/AF60_EN.html 13/23...
  • Page 14 7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide https://dl.ubnt.com/qsg/AF60/AF60_EN.html 14/23...

  • Page 15: Connecting Power

    7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide Connecting Power WARNING: The switch port must comply with the power specifications listed in “Specifications”. https://dl.ubnt.com/qsg/AF60/AF60_EN.html 15/23...

  • Page 16: Establishing A Link

    7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide Optional Alignment Tips To accurately align the airFiber radios for best performance, you MUST align only one end of the link at a time. You may need to use additional hardware to compensate for issues such as the improper orientation of a mounting pole or significant elevation differences between airFiber radios.
  • Page 17 7/23/2020 AF60 Quick Start Guide Adjust the aim of the AP and the Station to establish a link. AF60 Quick Start Guide Note: The AP must be aimed first at the Station because the Station does not transmit any RF signal until it detects transmissions from the AP.

  • Page 18: Installer Compliance Responsibility

    7/23/2020 AF60 Quick Start Guide Note: Do NOT make simultaneous adjustments on the AP and Station. AF60 Quick Start Guide Station Visually aim the Station at the AP. To adjust the Station’s position, adjust the azimuth and elevation as described in step 1.

  • Page 19: Specifications

    7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide Antenna The 5GHz Output Power field is provided to the professional installer to assist in meeting regulatory requirements. Specifications AF60 Dimensions 413 x 413 x 320 mm (16.26 x 16.26 x 12.60")

  • Page 20: Safety Notices

    7/23/2020 AF60 Quick Start Guide AF60 AF60 Quick Start Guide ESD/EMP Protection ± 24kV Contact/Air Operating Temperature -40 to 60° C (-40 to 140° F) Operating Humidity 5 to 95% Noncondensing Certifications FCC, IC, CE System Maximum Throughput 1.8 Gbps...

  • Page 21: Electrical Safety Information

    7/23/2020 AF60 Quick Start Guide AF60 Quick Start Guide Electrical Safety Information 1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.

  • Page 22: Important Note

    AF60 Quick Start Guide interference in which case the user will be required to correct the interference at his own expense. This radio transmitter FCC ID: SWX-AF60 / IC: 6545A-AF60 has been approved by FCC / ISED Canada. The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

  • Page 23: Weee Compliance Statement

    Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band. WEEE Compliance Statement Declaration of Conformity Online Resources © 2020 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/AF60/AF60_EN.html 23/23...
