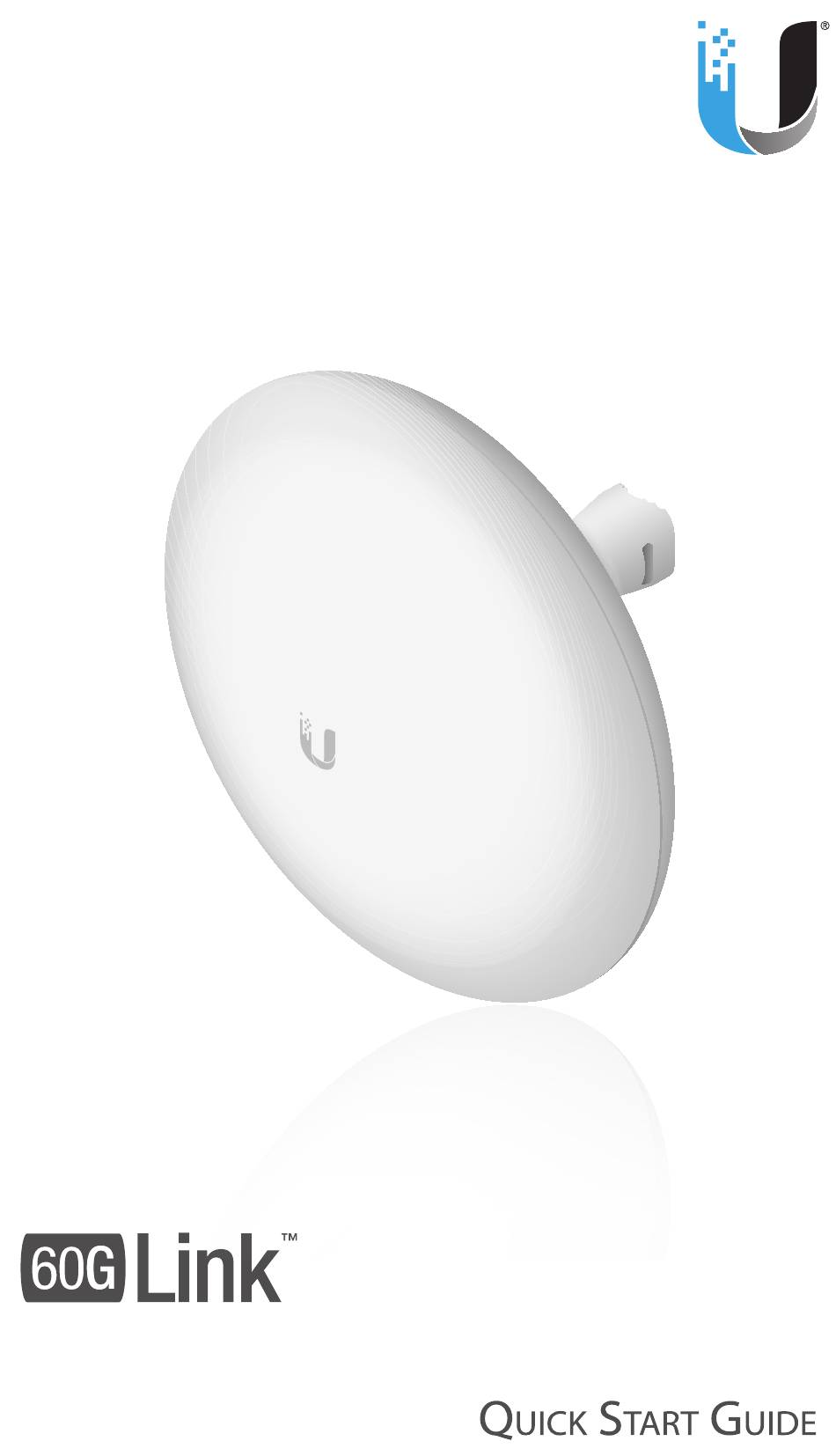

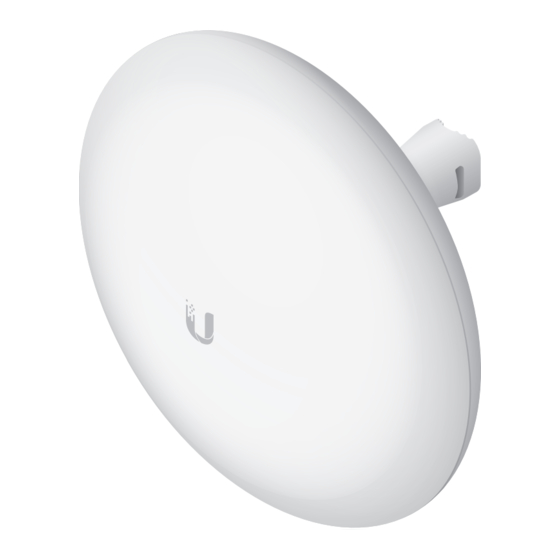

  • Page 1 60 GHz/5 GHz Radio System with 1 Gbps+ Throughput Model: 60G-Link...
  • Page 2: Package Contents

    Package Contents 60G Link Ball Joint Lock Ring Mount Metal Strap Gigabit PoE (24V, 0.5A) Power Cord with Mounting Bracket...
  • Page 3: Installation Requirements

    AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable • Surge protection should be used for all outdoor installations.
  • Page 4: Hardware Overview

    Hardware Overview Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is powered on. Alternatively, the device may be reset remotely via a Reset button located on the bottom of the Gigabit PoE Adapter.
  • Page 5 LEDs Lights steady blue when there is a strong GPS signal. . 60 GHz Lights steady blue when 60G link is ready. 5 GHz Lights steady blue when the 5 GHz link is ready. The LED will light steady blue when an active Ethernet connection is made to the Ethernet port and flash when there is activity.
  • Page 6: Hardware Installation

    Hardware Installation Go to the appropriate mounting instructions: Pole Mounting or “Wall Mounting” . Pole-Mounting...
  • Page 8: Wall Mounting

    Wall Mounting The device must be mounted directly to a wood stud or other structurally stable surface to avoid damage to the mounting hole when you adjust the aim. Optional Accessory To enhance stability, you can use the NanoBeam® Wall Mount Kit, model NBE-WMK (sold separately).
  • Page 9 Fastener (not included) NanoBeam Wall Mount Kit...
  • Page 10 Aiming...
  • Page 11: Connecting Power

    Connecting Power...
  • Page 12 4. Connect the power using: • included Gigabit PoE Adapter • PoE switch WARNING: The switch port must comply with the power specifications listed in the Specifications section of this Quick Start Guide. Connecting to the PoE Adapter Mounting the PoE Adapter (Optional)
  • Page 13: Web Portal

    If necessary, you can power cycle the device to re-enable its Wi-Fi. UNMS App 1. Download the UNMS app. 2. Connect your device’s Wi-Fi to the SSID named: 60G-Link:<MAC Address> Note: Ensure that DHCP is enabled on your Wi-Fi adapter. 3. Launch the app and follow the on-screen instructions.
  • Page 14 3. Select your Country and Language. You must agree to the Terms of Use to use the product. Click Continue. 4. Create a username and password. Confirm your new password and then click Save. The airOS Configuration Interface will appear, allowing you to customize your settings as needed.
  • Page 15: Installer Compliance Responsibility

    Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements.
  • Page 16: Specifications

    Specifications 60G-Link Dimensions 140 x 140 x 90 mm (5.51 x 5.51 x 3.54") Weight 376 g (13.3 oz) Gain 5 GHz 10 dBi 60 GHz 17.2 dBi Networking Interface 10/100/1000 Ethernet Ports Wi-Fi for Management Enclosure UV-Resistant Polycarbonate Max. Power Consumption Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
  • Page 17: Safety Notices

    Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in a location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 18 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 19 IMPORTANT NOTE: Radiation Exposure Statement: • This equipment complies with radiation exposure limits set forth for an uncontrolled environment. • This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. • This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 20 CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. Country List AT BE BG CY CZ DE DK EE EL ES FR HR LU MT NL PL PT RO BFWA (Broadband Fixed Wireless Access) members noted in blue Note: This device meets Max.
  • Page 21 Deutsch Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische und elektronische Geräte über die dafür zuständigen und von der Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu...
  • Page 22: Declaration Of Conformity

    English Hereby, UBIQUITI, declares that this 60G-Link device, is in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU, 2014/30/EU, 2014/35/EU. The full text of the EU declaration of conformity is available at the following internet address: ui.com/compliance...
  • Page 23 Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: ui.com/compliance Íslenska [Icelandic] Hér, UBIQUITI, því yfir að þetta 60G-Link tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/53/ESB, 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: ui.com/compliance...
  • Page 24: Online Resources

    ©2019 Ubiquiti Inc. All rights reserved. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries.
