RX-4 Receiver

Front

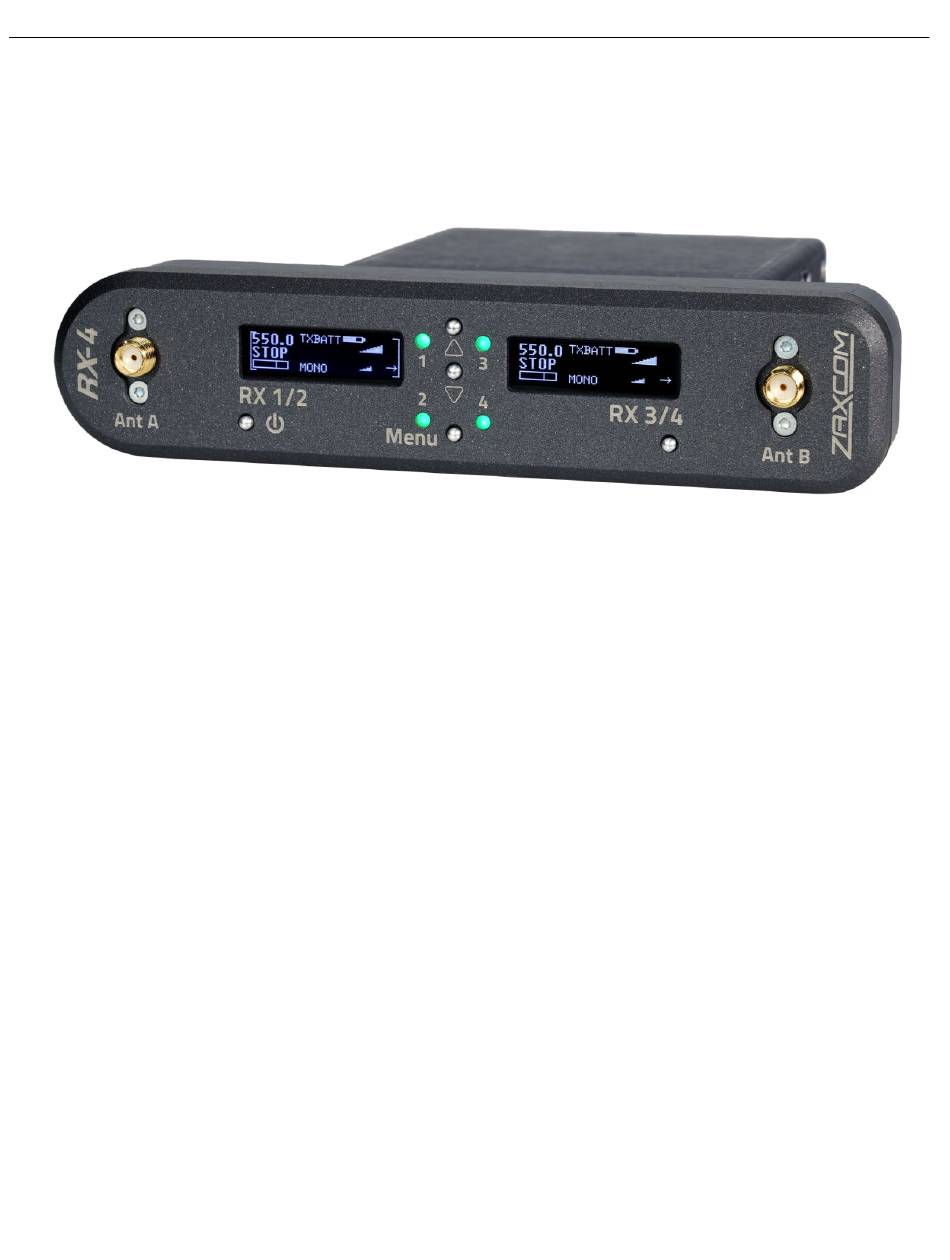

1. OLED Displays (2)
2. INC Key - Used to increase the parameters of a menu item.
3. Dec Key - Used to decrease the parameters of a menu item.
Press and hold to access the extended menu.
4. Menu Key - Press to advance to the next menu item.
5. UHF Antenna Connectors (2) - SMA connectors.
6. Receiver Status Indicators (4)
Green - Receiver is receiving a valid signal.
Red - Receiver is not getting a valid signal.
7. Receiver Select keys (2) -Press to alternate between receivers.
The RX 1/2 key will power the RX-4. Press and hold the key for 5 seconds to power down the RX-4.
Press the RX 1/2 key to toggle thru receivers when choosing frequencies.
