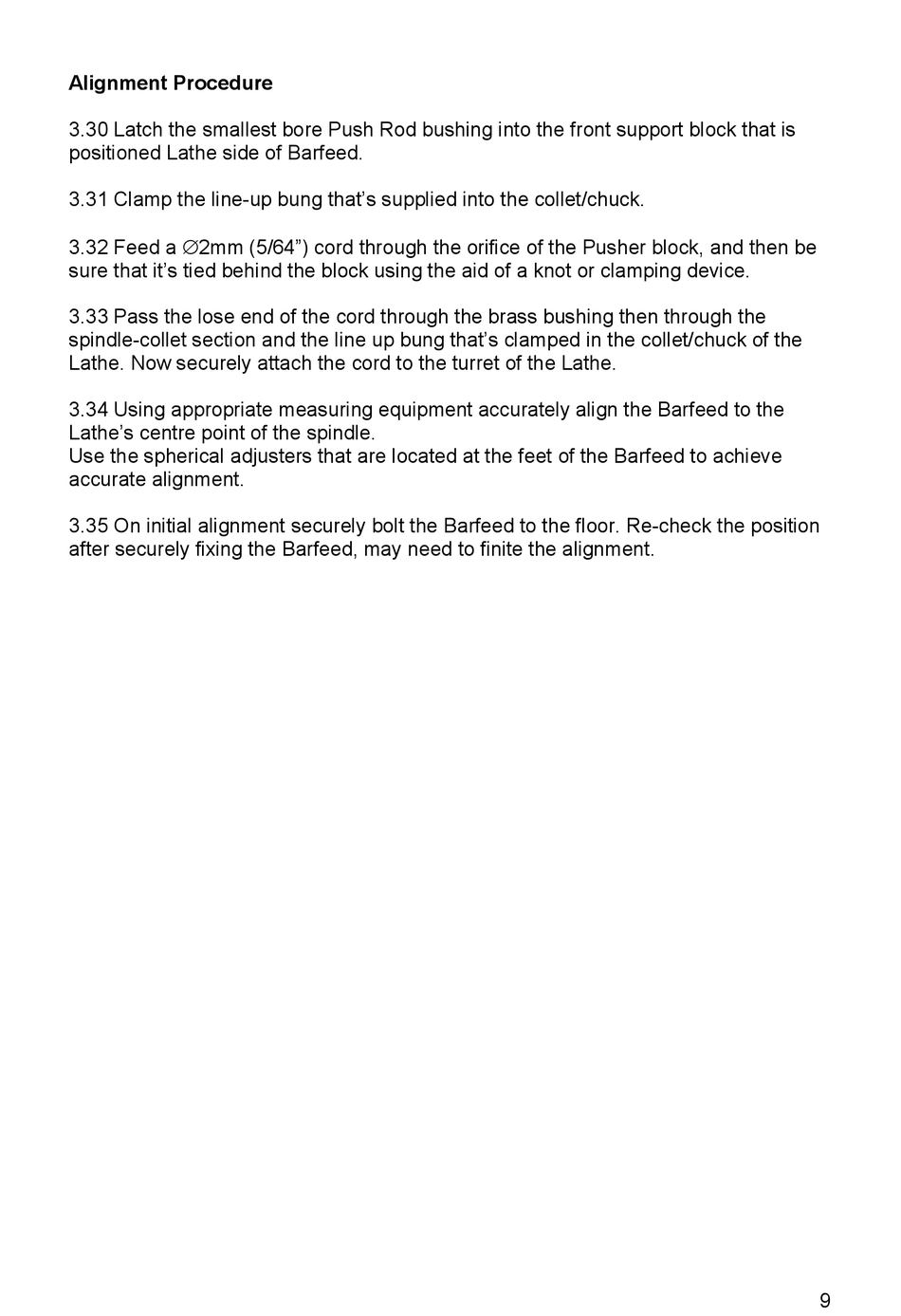

Alignment Procedure

3.30 Latch the smallest bore Push Rod bushing into the front support block that is
positioned Lathe side of Barfeed.
3.31 Clamp the line-up bung that's supplied into the collet/chuck.
3.32 Feed a 2mm (5/64") cord through the orifice of the Pusher block, and then be
sure that it's tied behind the block using the aid of a knot or clamping device.
3.33 Pass the lose end of the cord through the brass bushing then through the
spindle-collet section and the line up bung that's clamped in the collet/chuck of the
Lathe. Now securely attach the cord to the turret of the Lathe.
3.34 Using appropriate measuring equipment accurately align the Barfeed to the
Lathe's centre point of the spindle.
Use the spherical adjusters that are located at the feet of the Barfeed to achieve
accurate alignment.
3.35 On initial alignment securely bolt the Barfeed to the floor. Re-check the position
after securely fixing the Barfeed, may need to finite the alignment.
9
