4.4. HEIGHT ADJUSTMENT OF THE SUPPORT CHANNEL

Ensure that Cross Slide and support channel are in the 'out' position.
Place the material to be used on the support channel, and slide material forward by
hand towards the lathe spindle. Unclamp the two locking handles indicated in figure
10.
Raise or lower the channel to the height at which the material can easily be inserted
into the spindle with out much interference.

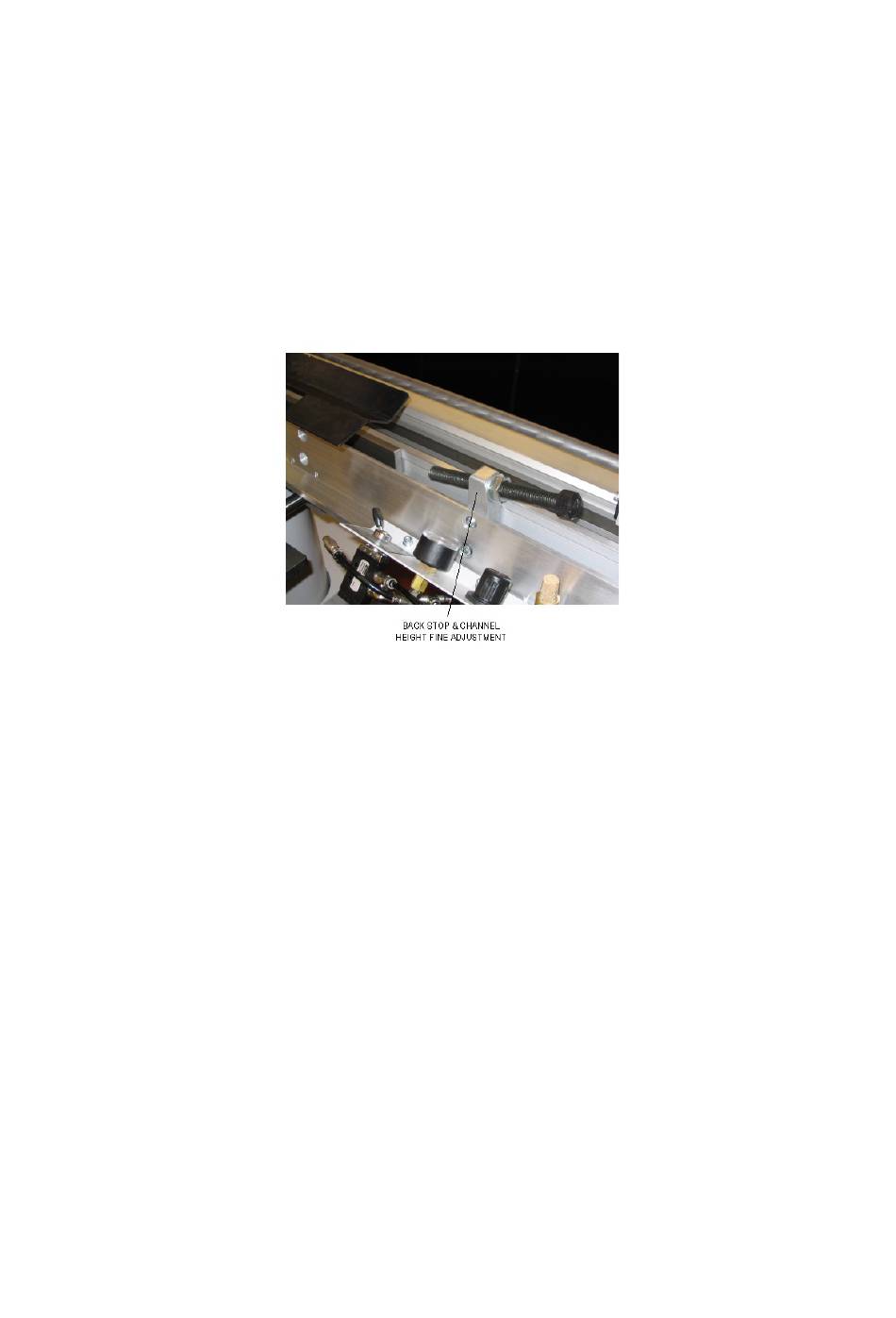

Figure 12
Once the channel is set to the correct height, the stop screw shown in figure 12 is to
be set against the channel plate, this will also enable finite adjustment when lowering
and raising the channel, the nut is to be tighten once the height is established so that
the channel is unable to move when material is being loaded.
4.5. BAR STOPS AND ADJUSTMENTS
Note: There are two sets of magazine bar stops;
Small stops are for 25mm diameter and over.
Large stops are for diameters approximately 25mm and under.
In figure 01 shows where the material stops are located;
Loosen the cap head screws that lock the stops in place,
Make sure the correct stops are used
In figure 03 illustrates how the stops are to be adjusted so that only one bar can be
loaded.
