SEASIDE CASUAL FURNITURE ENVIRO WOOD 095 Instruction

Instruction Revision: B
S

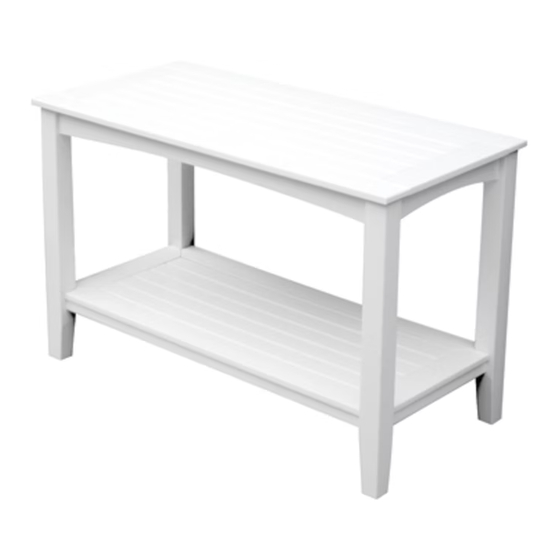

(095) 24In X 50In Windsor Buffet Table rev. A
(195) 19In X 36In Windsor Buffet Table rev. A

Parts List:

(1) Table Top
(1) Shelf
(2) Leg Assemblies

Tools Required:

Phillip's Head Screwdriver
4MM Allen Wrench (Included)
READ ENTIRE INSTRUCTIONS BEFORE BEGINNING! Carefully remove contents
from box. Make sure that all parts and hardware are included.

Step Three: Short Apron Attachment (095,195)

Attach Short Apron, which is pre-assembled on Leg Assembly to Ta-
ble Top using (2) 1-3/4" Phillips Head Screws. (Right Picture) Re-
peat process on other side.
!!!WARNING!!! Do not use a Portable Screw Gun. This may cause
screws to go through the Table Top.
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
C
EASIDE ASUAL
ENVIRO

Assembly Instructions

Step One: Set Up

Step Two: Leg Assembly (095,195)

Place Table Top face down on a flat clean
surface. Place Leg Assembly upside down
on each side of Table Top aligning pre-
drilled holes and facing the Aluminum
Cleat inside the Table Top (Left Picture).
Attach using (2) 3" Hex 1/4" Lags. Repeat
process on other side. (Right Picture)
F
URNITURE
WOOD

Hardware:

(8) 3" Hex 1/4" Lags
(4) 1-3/4" Phillip's Head Screws
(4) 1-1/4" Phillip's Head Screws
(8) 5/8" Plugs
(12) 3/4" Pan Head Screws -
(095 Only)

Note:

095 Does have Aluminum
195 Dose not have Aluminum.
1
