SEASIDE CASUAL FURNITURE Adirondack Classic Assembly Instructions

Instruction Revision: B
S

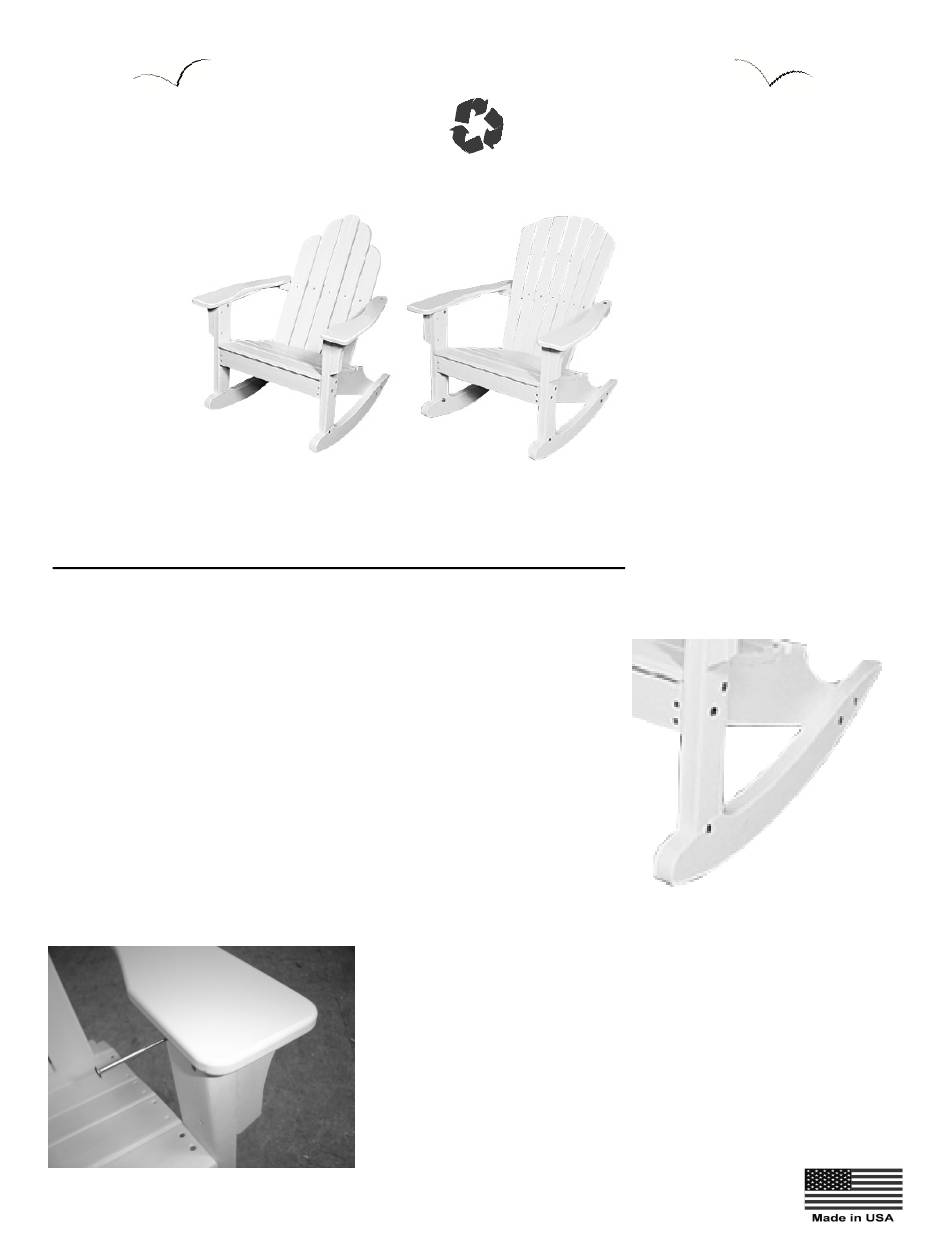

(11,19) Adirondack Classic & Shellback Rockers rev. A

Parts List:

(1) Seat As-
sembly
(1) Back As-
sembly
(2) Front
Rocker Legs
(2) Arms
READ ENTIRE INSTRUCTIONS BEFORE BEGINNING! Carefully remove contents
from box. Make sure that all parts and hardware are included.
Place Seat Assembly on it's side on a flat clean surface. Locate
the Front Leg with Rocker that you will be installing (Right Pic-
ture). Insert a 3-1/2" connector bolt up through the outermost
pre-drilled hole in front leg and align this with the pre-drilled
hole in the seat assembly and install the flat washer, lock
washer, & nut. Finger tighten nut, then install second and third 3
-1/2" connector bolts next to the one you have just installed. In-
stall (2) 3-1/2" connector bolts to attach back of Rocker to Rear
Leg (Right Picture). Flip the chair over and repeat process for
the other side. Do not tighten at this time.
WARRANTY QUESTIONS OR COMMENTS PLEASE CALL TOLL FREE AT 1-800-809-3114
C
EASIDE ASUAL
ENVIRO
Assembly Instructions

Step One: Set Up

Step Two: Leg Assembly

Step Three: Arm Assembly

Arms should be installed with curve side on the inside of the
chair (Left Picture). Place Arm on top of Front Leg. Align
pre-drilled hole in arm with the pre-drilled hole located at
the top of the Front Leg. Install a 3-1/2" connector bolt
through pre-drilled hole in Front Leg, then through pre-
drilled hole under arm. Install flat washer, lock washer, and
nut. Do not tighten at this time. Repeat process on other
side.
F
URNITURE
WOOD

Hardware List:

(12) 3-1/2" Connector Bolts
(2) 2-3/4" Connector Bolts
(14) Flat Washers
(14) Lock Washers
(14) Nuts
(4) 1-3/4" Phillip's Head Screws

Tools Required:

Philip's Head Screwdriver
7/16 Socket or Wrench
(1) 4MM Allen Wrench (Included)
1
