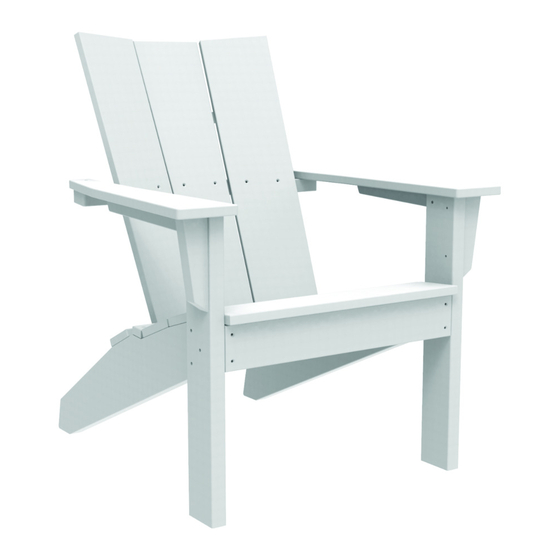

COASTLINE MONTEREY ADIRONDACK
310
1
PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING. Carefully remove contents from box.
Make sure that all parts and hardware are included using the Parts List below.
Right & Left Arm Set
x 1
Seat Assembly
x 1
ASSEMBLY INSTRUCTIONS
Right & Left Leg Set
x 1
Back Assembly
x 1
75mm Connector Bolt
(Actual Size)
Part Code: 316-1/4-20-75B
60mm Connector Bolt
(Actual Size)
Part Code: 316-1/4-20-60B
4mm Allen Wrench
(Actual Size)
Part Code: 4MMALLEN
1/4 Lock Washer
Part Code: 316-1/4LW
x 6
1/4 Flat Washer
Part Code: 316-1/4FW
Lock Nut
1/4 Nut
(Actual Size)
x 4
Part Code:
316-1/4-20N
x 6
1-3/4 Phillips Head Screw
x 1
Part Code: 316-8x1-3/4PFDS
(Actual Size)
x 6
(Actual Size)
x 10
(Actual Size)
Part Code:
316-1/4-20LN
x 4
(Actual Size)
x 2
Page 1
Advertisement
Table of Contents
Related Manuals for SEASIDE CASUAL FURNITURE COASTLINE MONTEREY ADIRONDACK 310
Summary of Contents for SEASIDE CASUAL FURNITURE COASTLINE MONTEREY ADIRONDACK 310
- Page 1 COASTLINE MONTEREY ADIRONDACK ASSEMBLY INSTRUCTIONS PLEASE READ INSTRUCTIONS COMPLETELY BEFORE BEGINNING. Carefully remove contents from box. Make sure that all parts and hardware are included using the Parts List below. Right & Left Arm Set Right & Left Leg Set 75mm Connector Bolt 1/4 Lock Washer (Actual Size)
- Page 2 ATTACH LEGS TO SEAT ASSEMBLY ATTACH ARMS TO TOP O F LEGS Attach using (3) 75mm Place Arm on top of Front connector bolts through the Leg. Align pre-drilled pre-drilled holes. Finger tight- holes. Install a 60mm con- en flat washer, lock washer, nector bolt, starting from and attach nut on each bolt.
