Assembly AND CARE GUIDE
Brookbury 5-Piece Sectional
Need Ass istance?
Contact our manufacture Customer Service toll free number:
(877) 980-6928 or e-mail us at walmart@aeoutdoor.com
Office operation hours: Monday ~ Friday 7:30 am to 4:30 pm (PST).
¿Necesitas ayuda?
Llama a nuestra linea gratuita de atenci6n al' diente al:(877) 980-6928
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brookbury 5-Piece Sectional and is the answer not in the manual?

Questions and answers

Marsha Debruyne
May 7, 2025

I’m from a Walmart store in Canada. A set came with missing part A3. My store number is 1027 the address is 1016 Manitoba Ave Selkirk,Manitoba r1a 4m1

1 comments:
Mr. Anderson
May 19, 2025

To obtain a replacement part A3 for the Better Homes and Gardens Brookbury 5-Piece Sectional, follow these steps:

1. Confirm you are the original purchaser.
2. Locate your proof of purchase (store receipt or walmart.com order confirmation).
3. Contact customer service at (877) 980-6928 or email walmart@aeoutdoor.com during office hours (Monday–Friday, 7:30 am to 4:30 pm PST).
4. Provide the proof of purchase when requested.

Note: The warranty covers manufacturing defects for three years but does not cover purchased parts, commercial use, or damage from weather or misuse.

This answer is automatically generated

Celena Arthur
March 6, 2025

Need a replacement pillow, set came missing this one pillow…..

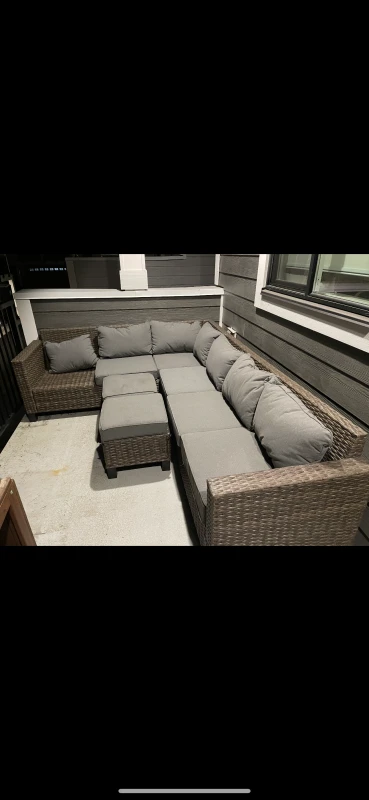

User image 67c9e28660abb
1 comments:
Mr. Anderson
March 6, 2025

To obtain a replacement pillow for the Better Homes and Gardens Brookbury 5-Piece Sectional, contact the manufacturer’s customer service. You can call their toll-free number at (877) 980-6928 or email them at walmart@aeoutdoor.com. Their office operates Monday through Friday from 7:30 AM to 4:30 PM (PST). A copy of the proof of purchase, such as a store receipt or a Walmart.com order confirmation, is required for warranty replacement parts.

This answer is automatically generated

Hervé Muamba
May 30, 2025

Where are all the screws hidden, don't see them

Subscribe to Our Youtube Channel

Summary of Contents for Better Homes and Gardens Brookbury 5-Piece Sectional

  • Page 1 ASSEMBLY AND CARE GUIDE Brookbury 5-Piece Sectional Need Ass istance? Contact our manufacture Customer Service toll free number: (877) 980-6928 or e-mail us at walmart@aeoutdoor.com Office operation hours: Monday ~ Friday 7:30 am to 4:30 pm (PST). ¿Necesitas ayuda? Llama a nuestra linea gratuita de atenci6n al' diente al:(877) 980-6928...
  • Page 2 Warranty 3 YEAR LIMITED WARRANTY WHAT IS COVERED We warrant the frame and fabric to be free of manufacturing defects to the original purchaser for three years. Copy of proof of purchase must be presented for warranty replacement parts. Either in store purchase receipt or walmart.com order confirmation.
  • Page 3 PART PICTURE DESCRIPTION QUANTITY LETTER BACK SEAT LEFT ARMREST MIDDLE LEG SUPPORT CORNER CHAIR OTTOMAN TABLE TOP TABLE LEG SHORT FEET...
  • Page 4 SEAT CUSHION BACK CUSHION 1 BACK CUSHION 2 OTTOMAN CUSHION FIXING CLAMP BOLT M6*15 BOLT M6*50 BOLT M6*85 WASHER LOCK NUT RATCHET TOOL WRENCH LARGE COVER SMALL COVER...
  • Page 5 Assembly LEFT ARM CHAIR Parts needed for these steps A, B, C, D, E, AA x 6, BB x 10, CC x 4, DD x 26, EE x 10, J x 4, FF, GG ● ATTACHING SHORT LEGS o Place the Back (A) on its back and attach 1 Short Leg ( ) using Bolt M6*85 (CC). Pay attention to the direction of the plastic adjustable foot peg which is under the short legs(J).
  • Page 6 ATTACHING SEAT FRAME TO BACK FRAME place down through the Seat (B) and place the washer and nut on the back frame. ATTACHING LEFT ARMREST AND TIGHTEN ALL BOLTS Nut (EE). Note:First twist out the bolt about 3cm,then lift up the Left Armrest (C) to insert the bolt into the hole.
  • Page 7 ● ATTACHING MIDDLE LEG TO LEFT ARM CHAIR ● ATTACHING SUPPORT TO LEFT ARM CHAIR...
  • Page 8 CORNER CHAIR Parts needed for these steps F, D, AA X4, CC X 4, DD X 4, J X4, FF, GG ● ATTACHING SHORT LEGS o Place the Corner Chair Frame (F) on its back and attach 4 Short Legs (J) using Bolts M6*85 (CC). o Pay attention to the direction of the plastic adjustable foot peg which is under the short legs(J).
  • Page 9 OTTOMAN Parts needed for these steps G, , J X 4, CC X 4, FF ● ATTACHING SHORT LEGS o Place the Ottoman Frame (G) on its side and attach 4 Short Legs (J) using Bolts M6*85 (CC). o Pay attention to the direction of the plastic adjustable foot peg which is under the short legs(J). Make sure the adjustable foot peg is on the outer corner of each short Leg(as highlight in the circles).
  • Page 10 TABLE Parts needed for these steps H, I x 2, AA x 8, DD x 8, FF ● ATTACHING TABLE LEGS o Place the Table Top ( ) face down on a soft surface. o Attach the Table Legs ( ) to the Table Top ( ) using 8 Bolts M6*15 (AA) and 8 Washers (DD).
  • Page 11 Finishing Steps Parts needed for these steps P x 1 ● ATTACHING THE CORNER CHAIR TO THE LEFT ARM CHAIR First twist out the bolt about 3cm, m Chair and make them close to each other. ● PLACING THE CLIP ON THE SECTIONAL ●...
  • Page 12 Small storage cover instruction 1. Put 2 ottomans (G) and ottoman cushions (N) under the table. 2. Cover with the small cover (II) and pull the buckle to fasten. Step 1 Step 2...
  • Page 13 Large storage cover instruction 1. Put 4 seat cushions (K) and 2 back cushions 2 (M) on the seat of corner chair (F). 2. Put the le� armrest chair upside down on the seat of corner chair (F). 3. Put 2 seat cushions (K) and 5 back cushions 1 (L) on the bottom of left armrest chair.
