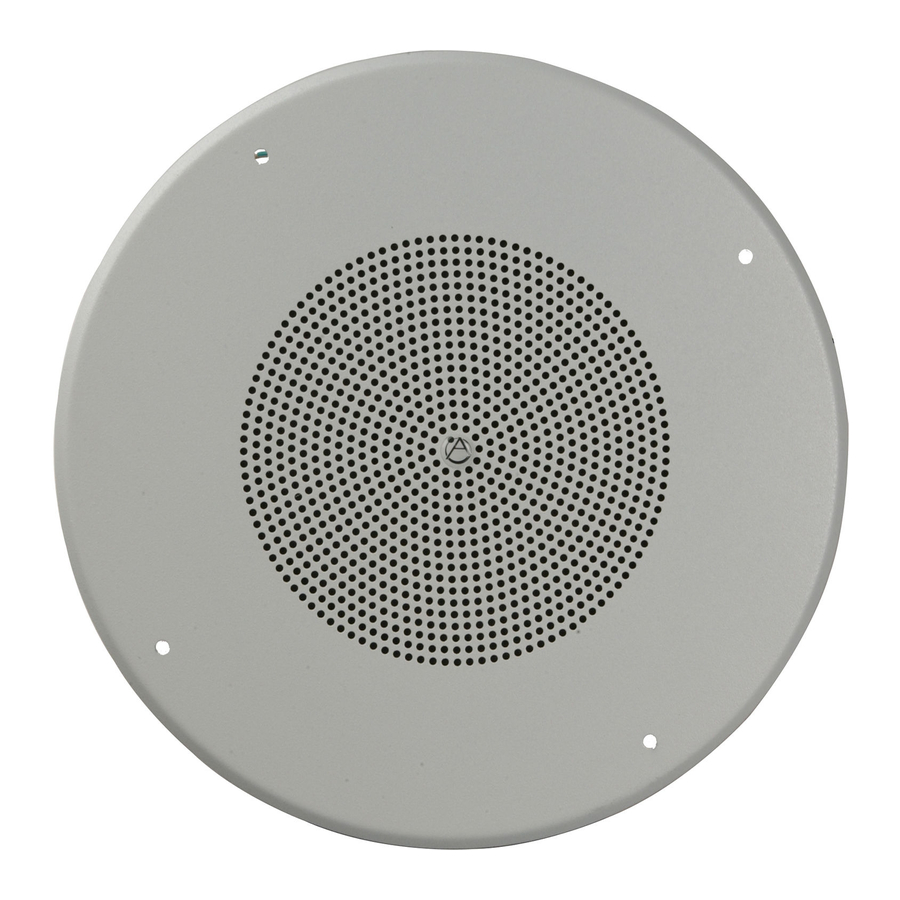

Atlas SD72W Installation Instructions

SD72, SD72W, SD72WV
1. Use two wire nuts to attach the appropriate
transformer wires to the field wiring.
2. Cut off the bare portion of the un-used leads.

Hardware Reference:

Model SD72 Mounts to all Atlas Sound 8" baffles
except FA series
Models SD72W & SD72WV are compatible with
the following Atlas Sound hardware items:
Mounting Rings: 75-8(E2), 76-8(E2), P77-8, P78-8
T-Bridges: 81-8R, 81-8S

Enclosures:

(EZ)95-8 Series, T95-8 Series,
Q408, CS95-8, BMT95-8,
BMT95-8-7
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. •
©2003 ATLAS SOUND LP
SD72, SD72W, SD72WV
1. Use two wire nuts to attach the appropriate
transformer wires to the field wiring.
2. Cut off the bare portion of the un-used leads.
Hardware Reference:
Model SD72 Mounts to all Atlas Sound 8" baffles
except FA series
Models SD72W & SD72WV are compatible with
the following Atlas Sound hardware items:
Mounting Rings: 75-8(E2), 76-8(E2), P77-8, P78-8
T-Bridges: 81-8R, 81-8S
Enclosures: (EZ)95-8 Series, T95-8 Series,
Q408, CS95-8, BMT95-8,
BMT95-8-7
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. •
©2003 ATLAS SOUND LP

INSTALLATION INSTRUCTIONS

2

TAP WATTAGE

COMMON
Specifications are subject to change without notice
AtlasSound.com
Printed in China
INSTALLATION INSTRUCTIONS
2
TAP WATTAGE
COMMON
Specifications are subject to change without notice
AtlasSound.com
Printed in China
70.7V
0.25 Red
0.5 White
1 Yellow
2 Blue
5 Brown
BLACK

Frequency Response:

Sensitivity:

TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435
00303 ATS001198 RevC 3/03
70.7V
0.25 Red
0.5 White
1 Yellow
2 Blue
5 Brown
BLACK
Frequency Response:
Sensitivity:
TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435
00303 ATS001198 RevC 3/03
2
TAP WATTAGE 25V
0.25 Blue
0.5 Gray
1 White/wGreen
2 Violet
5 Orange
COMMON BLACK
55Hz-8kHz
97dB
(1W/1M)
2
TAP WATTAGE 25V
0.25 Blue
0.5 Gray
1 White/wGreen
2 Violet
5 Orange
COMMON BLACK
55Hz-8kHz
97dB
(1W/1M)
