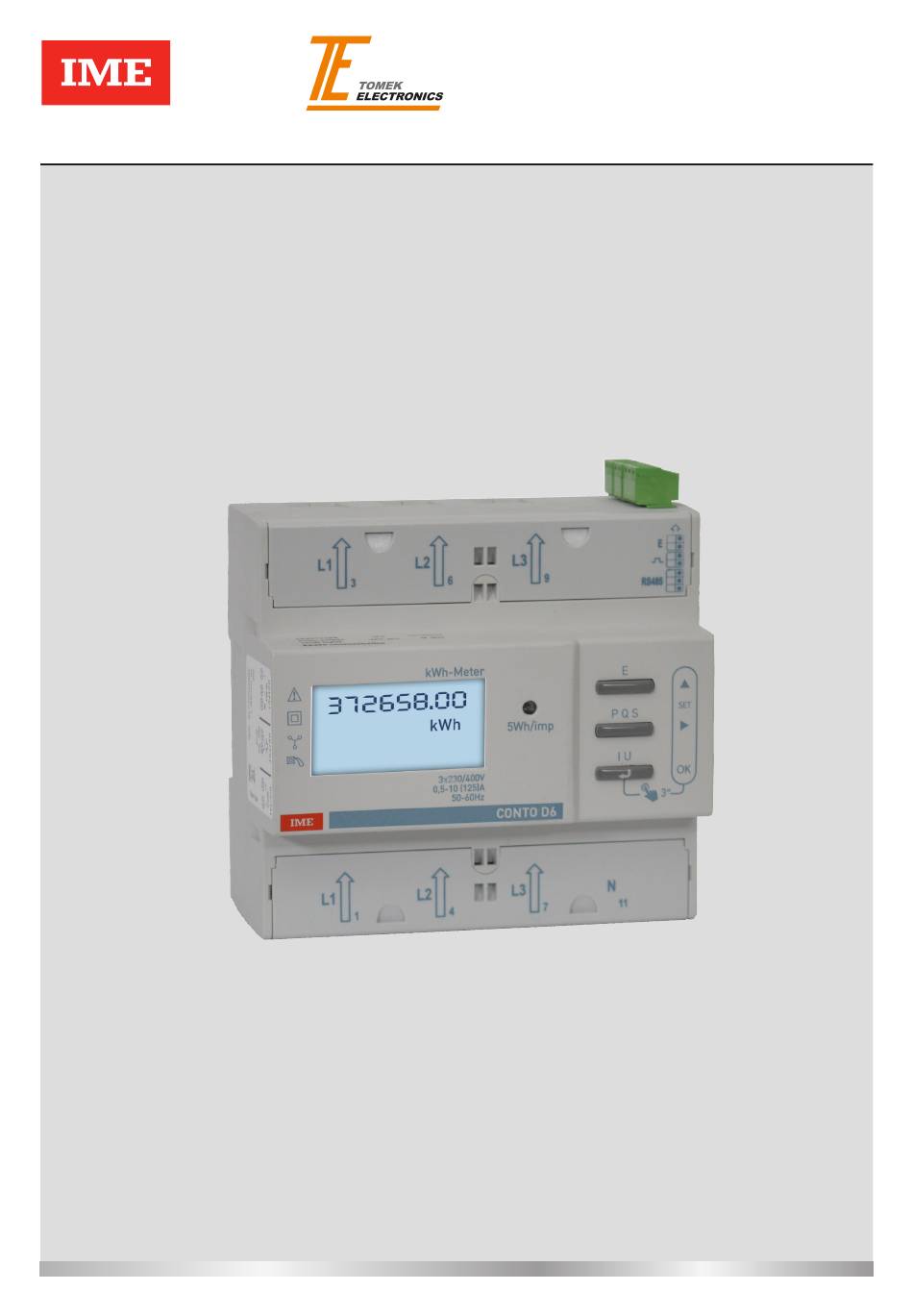

- Page 1 CE6DT1252 CE6DMID52 CE6DT1256 CE6DMID56 CONTO D6 Three-phase energy meter Installation manual • Installationsanweisung LE11068AA -07/18-03 IM Tomek GmbH - messtechnik@tomek.at - 01/61003-0...
- Page 2 Tomek GmbH - messtechnik@tomek.at - 01/61003-0...
-
Page 3: Table Of Contents
CONTO D6 Three-phase energy meter Contents Dangers and warnings Preliminary operations Presentation Installation Programming Assistanance Communication Technical characteristics List of abbreviation Summary Gefahren und Warnungen Vorarbeiten Presentation Installieren Programmierung Verwendung Unterstützung Kommunikation Technische Daten Liste der Abkürzungen • Dangers and warnings This equipment must only be mounted by professionals. -
Page 4: Conto D6
CONTO D6 Three-phase energy meter • Preliminary operations For personnel and product safety read the contents of these operating instructions carefully before connecting. Check the following points as soon as you receive the box containing the device: - the packing is in good condition;... -
Page 5: Installation
CONTO D6 Three-phase energy meter • Installation • Installation • Empfehlung • Recommendations • Nähe zu Generatorsystemen vermeiden • Avoid proximity to systems which generate elektromagnetische Störungen. electromagnetic interference. • Connection For the maximum terminal torque see the table 197...480 V~ (three phase) CAT III •... - Page 6 CONTO D6 Three-phase energy meter • Installation • Installation • Wiring diagram • Anschlussbilder • During wiring carefully comply with the connection diagram; a connection error may affect proper operation, or cause damage to the device. • Beachten Sie bei der Verdrahtung unbedingt das Anschlussschema; Ungenauigkeiten in den Anschlüssen können zu Fehlbedienungen oder Schäden am Gerät führen.
- Page 7 • Programming • Programmierung · Increases the value · Den Wert erhöhen • To access programming - Password = CodE1000 Zugriff auf die Programmierung - Kennwort = CodE1000 P Q S • · Moves the cursor · Cursor verschieben · The programming phase can be entered from any display page ·...
- Page 8 • Programming • Programmierung RS485 (CE6DT1256 • CE6DMID56) • Communication address - Example: Addr = 105 • Kommunikationsadress - Beispiel: Addr = 105 P Q S · Selectable values: 1...255 · Anwählbare Werte: 1...255 3” P Q S 3” P Q S 3”...
- Page 9 • Programmazione • Programming • Programmation • Programmierung RS485 (CE6DT1256 • CE6DMID56) • Parity bit - Example: PAR = odd • Paritätsbit - Beispiel: PAR = odd · Selectable values: EVEn - odd - nonE · Anwählbare Werte: EVEn - odd- nonE P Q S 3”...
- Page 10 CONTO D6 Three-phase energy meter • Programmazione • Programming • Programmation • Programmierung RS485 (CE6DT1256 • CE6DMID56) • Time Out - Example: tIM = 20ms • Time Out - Beispiel: Addr = tIM = 20ms · Selectable values: 3...99 ·...
- Page 11 • Programming • Programmierung • Pulse weight Selectable values: active energy 1pulse/10Wh - 1pulse/100Wh - 1pulse/1000Wh - 1pulse/10kWh - 1pulse/100kWh reactive energy 1pulse/10varh - 1pulse/100varh - 1pulse/1000varh - 1pulse/10kvarh - 1imp./100kvarh • Impulswertigkeit Anwählbare Werte: Wirkenergie 1imp./10Wh - 1imp./100Wh - 1imp./1000Wh - 1imp./10kWh - 1imp./100kWh Blindenergie 1imp./10varh - 1imp./100varh - 1imp./1000varh - 1imp./10kvarh - 1imp./100kvarh P Q S...
- Page 12 • Programming • Programmierung • Change Password = PSU 2000 Kennwort ändern = PSU 2000 • P Q S 3sec 3” P Q S 3” P Q S 3” confirm - bestätigen • Important! The last password saved must be used for future access. Remember to make a note of the new password and store it in a secur e place.
-
Page 13: Use
CONTO D6 Three-phase energy meter • Use • Verwendung XXXXXXXX XXXXXXXX P Q S P Q S Reset k W h k W h 3sec Nullstellung 3” 3” 3” Partial active energy Total active energy Teilwirkenergie Gesamtwirkenergie XXXXXXXX XXXXXXXX P Q S... - Page 14 • Use • Verwendung XXXX XXXX P Q S P Q S v a r 3” 3” Three-phase active power Reactive power L2 Dreiphasenwirkleistung Blindleistung L2 XXXX XXXX P Q S P Q S v a r 3” 3” Reactive power L3 Active power L1 Blindleistung L3 Wirkleistung L1...
- Page 15 CONTO D6 Three-phase energy meter • Use • Verwendung XXXX XXXX P Q S P Q S 3” 3” Linked voltage L1-L2 Current L1 Verkettete Spannung L1-L2 Strom L1 XXXX XXXX P Q S P Q S 3” 3” Linked voltage L2-L3...
-
Page 16: Communication
CONTO D6 Three-phase energy meter • Communication The "CE6DT1256 - CE6DMID56" energy counters communicate using the MODBUS® protocol which implies a dialogue using a master-slave logic. structure. Addressing type: • point-point (the master communicates one slave at once). The communication takes place with RTU (Remote Terminal Unit) mode. -
Page 17: Technical Characteristics
CONTO D6 Three-phase energy meter • Technical characteristics Case Dimension (w x h x d) 107,2 x 111,5 x 65,6mm Recommended 8 mm torque: 1 Nm 1 x 16 mm 0,8 x 4mm 1 x 16 mm 1 x 16 mm... - Page 18 • Technical characteristics Digital inputs Voltage: 12-24V DC Current: Max. 10 mA Pulse output Type: Optorelays with potential-free SPST-NO contact Voltage: Max. 27 V AC/DC Current: Max. 50 mA Operating conditions Operating temperature: (-25°C) ÷ (55°C) [23°F ÷ 131°F] Storage temperature: (-25°C) ÷...
-
Page 19: Technische Daten
CONTO D6 Three-phase energy meter • Technische Daten Gehäuse Abmessung (L x H x T) 107,2 x 111,5 x 65,6mm Recommended 8 mm torque: 1 Nm 1 x 16 mm 0,8 x 4mm 1 x 16 mm 1 x 16 mm... - Page 20 • Technische Daten Digitaleingänge Spannung: 12-24V DC Strom: Max. 10 mA Impulsausgang Typ: Optorelais mit SPST-NO Kontakt potentialfrei Spannung: Max. 27 V AC/DC Strom: Max. 50 mA Gebrauchsbedingungen Betriebstemperatur: (-25°C) ÷ (55°C) [23°F ÷ 131°F] Lagertemperatur: (-25°C) ÷ (70°C) [-13°F ÷ 158°F] Feuchtigkeit: Geeignet für den Einsatz in tropischem Klima Maximale Verlustleistung:...
-
Page 21: Liste Der Abkürzungen
CONTO D6 Three-phase energy meter • Liste der Abkürzungen • List of abbreviations CodE Zugriffscode CodE Password tIME Integrationszeit Leistungen tIME Power integration time Addr Adresse Addr Address bAUd Kommunikationsgeschwindigkeit in kbps bAUd Communication speed in kbps Parität Parity nonE Parität keine...
