Bison VERSADJUST Installation Details

BISON INNOVATIVE PRODUCTS
1975 W. 13th Ave Denver, CO 80204
Phone: 800-333-4234 | Email: info@BisonIP.com
Online: www.BisonIP.com

UNDERSTANDING THE VERSADJUST

The Versadjust, adjustable V-Series line reaches
heights from 2 ¼ inches to 24 inches, has a 1500
pound weight bearing capacity and contains built in
slope compensation from zero to one half inch per
foot slope. Accessories are available to compensate
for additional slope and accommodate heights from
1/8 inch to 2 ¼ inches.
Precise spacer tabs allow for deck drainage,
and the screw-to-adjust height setting assures
a perfectly straight and level deck. Quick clip cou-
plers © (patent pending) increase the speed and
efficiency installing pedestals at heights over 9 ¾
inches. Accessories are available to compensate for
additional slope and accommodate low heights from
1/8 inch to 2 ¼ inches.
The Bison Versadjust pedestal has a broad footprint
that provides stability, is impervious to freeze thaw
cycles, and offers a range of heights suited to almost
any application.
BUILT IN SLOPE BASE COMPENSATION
Each V-Series pedestal comes with base slope
compensation for up to 1/2" per foot (4%) slope.
Slope Adjustment:
Point each finger tab downhill for 1/2" per foot (4%) slope.
Rotate base pieces for precise slope compensation.
To create a flat base:
Position finger tabs opposite one another.
To Remove VB Base Leveller:
Slide pedestal base out of VB base leveller
For additional slope compensation:
A maximum of two (2) Model LD4 base levellers can be
used with the V-Series adding an additional 1/2" per foot
(4%) slope for a total of 1 inch per foot (0-8%) slope. Each
LD4 adds an 3/8" to the overall height of the pedestal.
V2
V1
2 ¼"- 2 ¾"
2 ¾"- 3 ¾"
INSTALLATION DETAILS
Patent and Patent Improvements Pending
V3
V4
3 ¾"- 5 ¾"
5 ¾"- 9 ¾"
Copyright 3-1-2010 United Construction Products, Inc. All Rights
V Tab
V Top
Comes screwed into V Base Unit. Unscrew top
until "engagement" bumps are felt and heard.
DO NOT extend beyond bumps EXCEPT to add
a coupler to Model V4.
VC2 Coupler

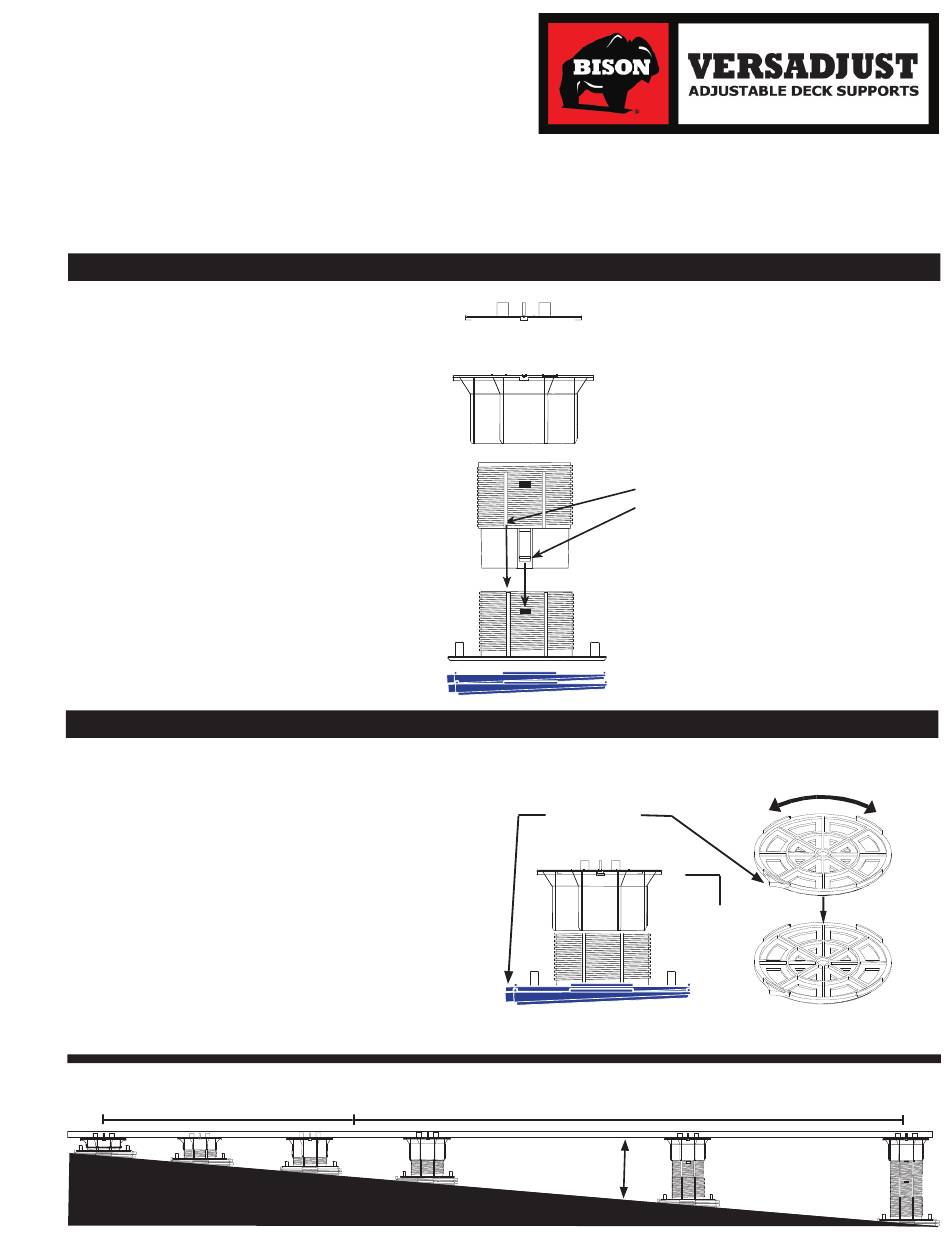

To Assemble:
Align lines on coupler and base
Align tab with Quick Connect slot.
Slide together until tab locks into place.
To Separate:
Hook C2 Coupler Release Tool into slots on the
side of the coupler, detach tool & pull apart.
V Base
Comes screwed into V Top Unit. Unscrew top
until "engagement" bumps are felt and heard.
DO NOT extend beyond bumps EXCEPT to add
a coupler to Model V4.
VB Leveller Base
Built-in base 0 - ½" (4%) slope compensation.
Finger tab
V4 + VC2 Quick Clip Coupler
9 ¾" - 13 ¾"
CAVITY HEIGHT
MARCH 2010
1/8" standard or 3/16" optional
Place Spacer Tab on top of pedestal
To remove tabs:
strike with hammer from above
(Works with Model V4 Only.)
ROTATE
90°
Maximum Height 24"
V4 + 4 ea VC2
