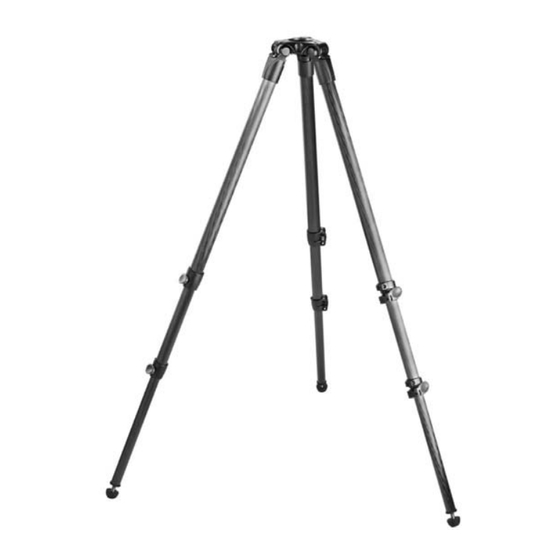

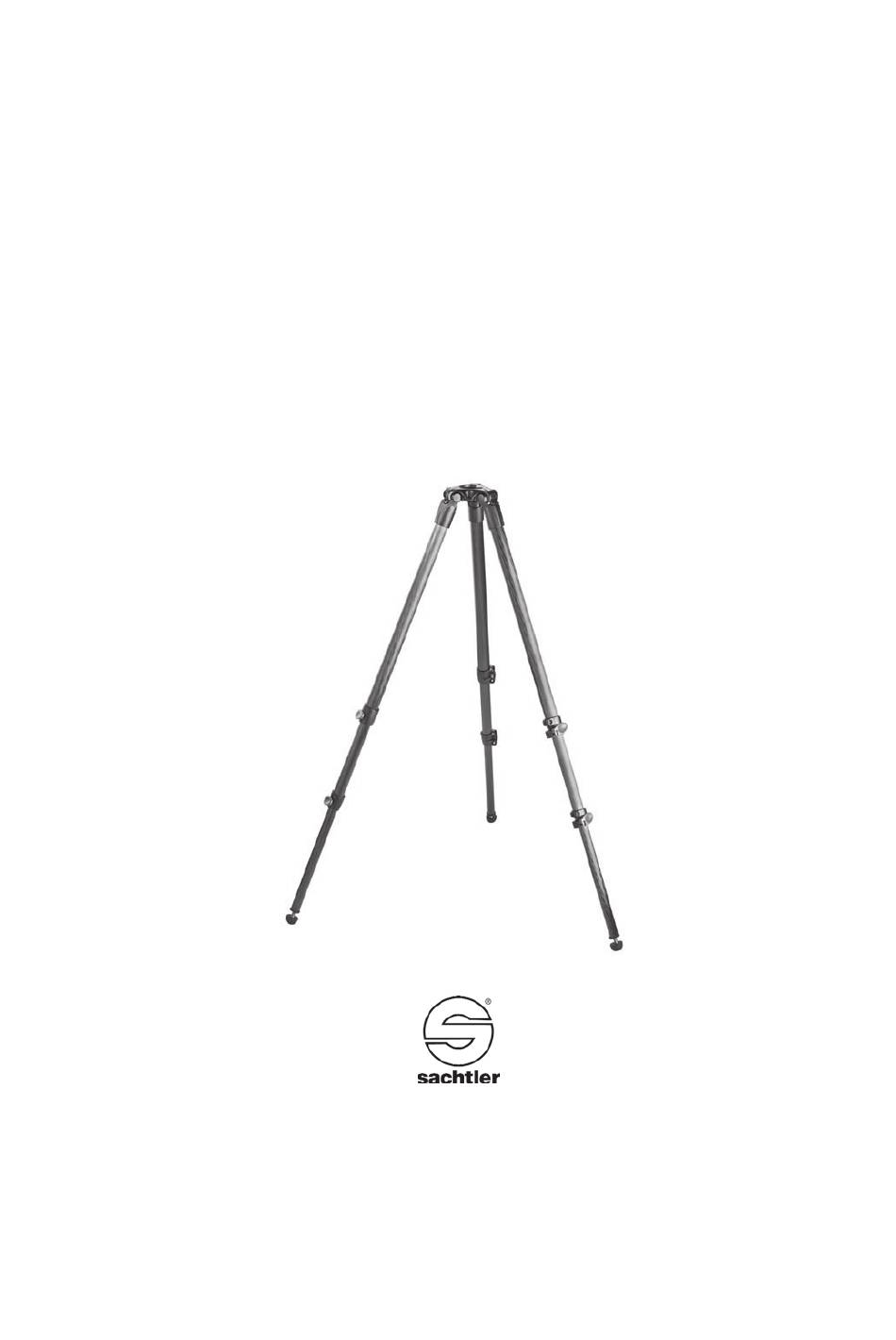

- Page 1 TT 75/2 CF Tripod Manual...
- Page 2 The tripod is easy to setup, the different leg angles can be quickly adjusted. The tripod comes with footpads with retractable spikes. The TT 75/2 CF only weights 5.3 lbs (2.4 kg) and is therefore an ideal choice when looking for lightweight, compact tripod systems. Specifications:...
- Page 3 Manual TT 75/2 CF Operating Elements bowl 75 mm angle adjustment button (C) locking collar lever (A) foodpad with retractable spikes Set Up Tripod Legs Open the tripod legs. Each leg has telescopic extensions that can be released by opening lever (A). When the required tripod height is achieved, lock lever (A).
- Page 4 TT 75/2 CF Manual Leg Angle Adjustment Each leg can be set at 3 spread angles (X, Y, Z). To change the angle on a leg, close the leg towards the centre slightly, press button “C” to select the new leg angle, then open the leg.
