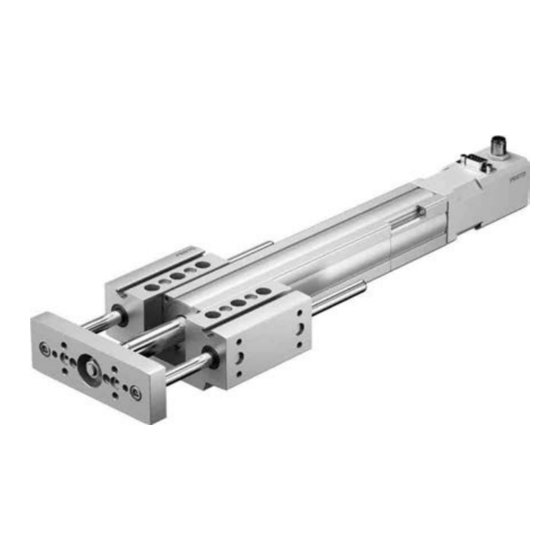

- Page 1 Electric cylinder with guide unit EPCO-...-KF Appendix to the operating instructions 8071278 1704a [8071280]...
- Page 2 Text designations: • Activities that may be carried out in any order 1. Activities that should be carried out in the order stated – General lists è Result of an action/References to more detailed information Festo – EPCO-...-KF – 1704a...
-
Page 3: Table Of Contents
............Festo – EPCO-...-KF – 1704a English... -
Page 4: Control Sections And Connections
Carefully read and observe the additional information in this appendix. Keep this appendix together with the operating instructions for the EPCO electric cylin der. For all available product documentation è www.festo.com/pk Control sections and connections Yoke plate Slots for slot nuts... -
Page 5: Transport And Storage
Direct mounting 4 / 7 Thread M5 (M6 for through-hole) Max. tightening torque [Nm] 4 (6) 7H8 / 9H8 Centring holes [mm] Slot nut mounting 6 Max. tightening torque [Nm] Tab. 1 Festo – EPCO-...-KF – 1704a English... -
Page 6: Fault Clearance
7H8 / 8H7 / Centring holes [mm] 9H8 Tab. 2 Fault clearance Malfunction Remedy Possible cause Running noises or Guide unit incorrectly mounted Align guide unit and electric vibrations (tension) cylinder again (èMounting instructions) Tab. 3 Festo – EPCO-...-KF – 1704a English... -
Page 7: Technical Data
[kg] 1.22 … 1.28 2.12 … 2.36 4.40 … 4.68 Per 100 mm stroke [kg] 0.25 0.46 0.73 1) Observe max. lateral force (è Characteristic curve chapter) 2) Depending on motor version Tab. 4 Festo – EPCO-...-KF – 1704a English... -
Page 8: Characteristic Curves
Max. lateral force Fy and Fz as a function of the cantilever load A for 5000 km operation EPCO-16-KF EPCO-25-KF EPCO-40-KF Fig. 4 Deflection f of the piston rod as a function of the cantilever load A EPCO-16-KF EPCO-25-KF EPCO-40-KF Fig. 5 Festo – EPCO-...-KF – 1704a English... - Page 9 EPCO-40-KF (F = 10 N) Fig. 6 Slope á (due to torque) as a function of cantilever load A EPCO-16-KF (M = 2 Nm) EPCO-25-KF (M = 2 Nm) EPCO-40-KF (M = 2 Nm) Fig. 7 Festo – EPCO-...-KF – 1704a English...
- Page 10 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 200 mm m = 0 kg m = 12 kg Fig. 8 Festo – EPCO-...-KF – 1704a English...
- Page 11 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 200 mm m = 0 kg m = 24 kg Fig. 9 Festo – EPCO-...-KF – 1704a English...
- Page 12 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 200 mm m = 0 kg m = 4 kg Fig. 10 Festo – EPCO-...-KF – 1704a English...
- Page 13 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 200 mm m = 0 kg m = 8 kg Fig. 11 Festo – EPCO-...-KF – 1704a English...
- Page 14 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 300 mm m = 0 kg m = 30 kg Fig. 12 Festo – EPCO-...-KF – 1704a English...
- Page 15 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 300 mm m = 0 kg m = 60 kg Fig. 13 Festo – EPCO-...-KF – 1704a English...
- Page 16 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 300 mm m = 0 kg m = 10 kg Fig. 14 Festo – EPCO-...-KF – 1704a English...
- Page 17 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 300 mm m = 0 kg m = 20 kg Fig. 15 Festo – EPCO-...-KF – 1704a English...
- Page 18 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 400 mm m = 0 kg m = 60 kg Fig. 16 Festo – EPCO-...-KF – 1704a English...
- Page 19 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 400 mm m = 0 kg m = 120 kg Fig. 17 Festo – EPCO-...-KF – 1704a English...
- Page 20 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 400 mm m = 0 kg m = 20 kg Fig. 18 Festo – EPCO-...-KF – 1704a English...
- Page 21 Acceleration a and speed v as a function of the effective load m and travel distance l l = 0 mm l = 400 mm m = 0 kg m = 40 kg Fig. 19 Festo – EPCO-...-KF – 1704a English...
- Page 22 Copyright: Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany Phone: +49 711 347-0 Fax: +49 711 347-2144 Reproduction, distribution or sale of this document or communica E-mail: tion of its contents to others without express authorization is service_international@festo.com...
