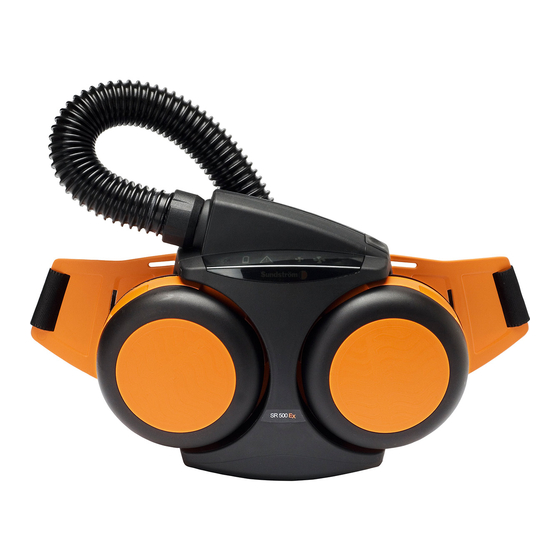

Intrinsically safe powered air purifiing respirator papr
Hide thumbs Also See for SR500EX:
Table of Contents

Advertisement

Quick Links

Download this manual

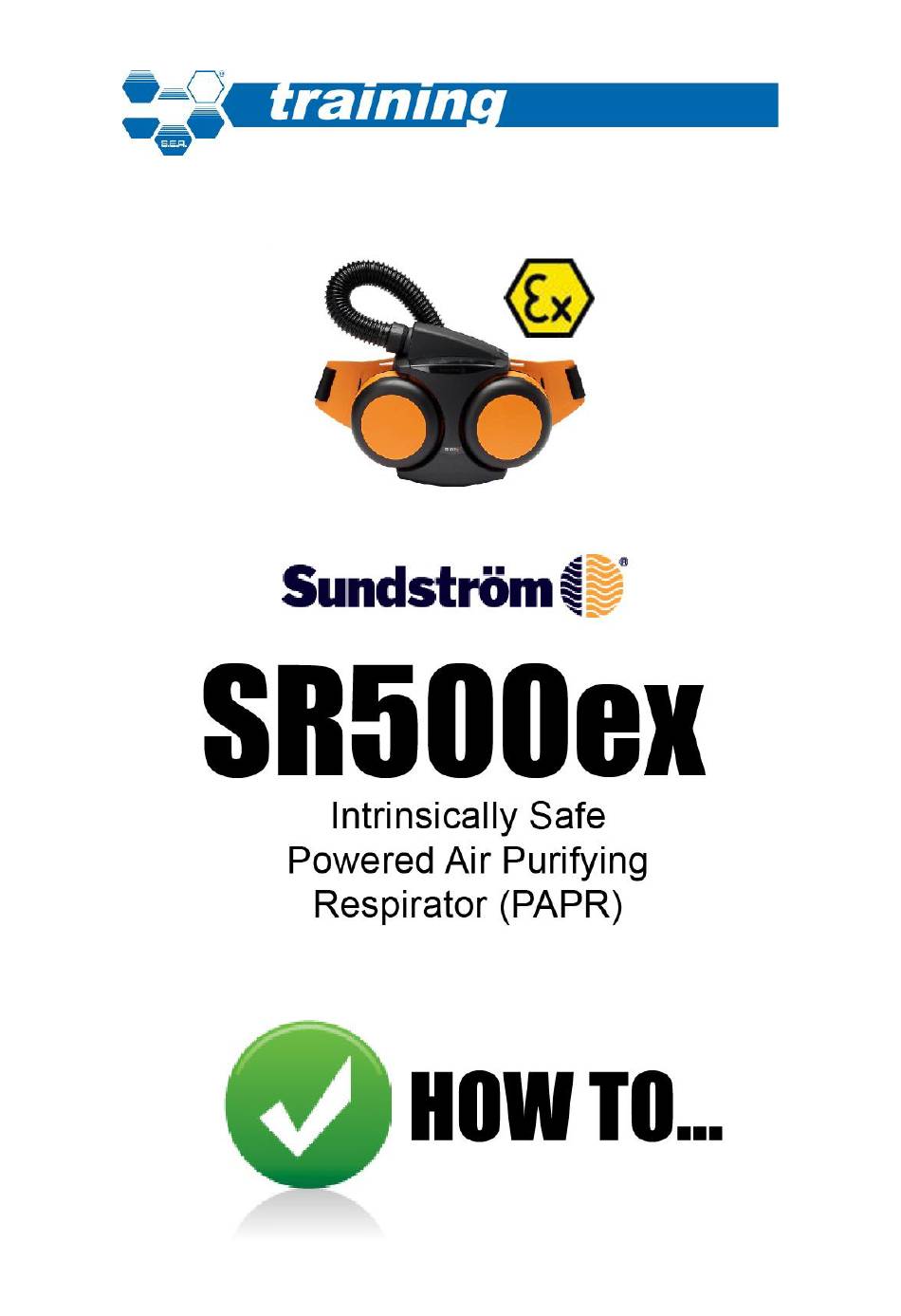

SR500ex PAPR — How to
Copyright © 2020 by The S.E.A. Group
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR500EX and is the answer not in the manual?

Questions and answers

Related Manuals for Sundstrom SR500EX

Summary of Contents for Sundstrom SR500EX

  • Page 1 SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 2 …prepare the SR500ex PAPR for first use BEFORE YOU START: Check that the equipment is complete in accordance with the packing list and has not been damaged in transit. Packing list (on top): • User instructions • Pre-filter holders EX, 2x •...

  • Page 3: Prepare The Battery

    LED. Top of charging mode. Green LED. Charging completed. Switches to maintenance charging mode. When charging has been completed, pull the plug out of the socket before separating the battery from charger. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 4 P3 R. Press the filters together so that the arrows on the particle filter point towards gas filter. A click confirms that the filters are fully together. This now works as a combined filter. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...

  • Page 5: Assemble The Battery

    …assemble the waist belt Place the fan upside down. The belt should be mounted so that the belt is pointing upwards. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 6 Press down the three lips locking the belt half. Correctly mounted belt. …fit a particle filter Check that the gaskets in the filter mounting of the fan unit are in place and are in good condition. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 7 Then turn it about 1/8 turn further in order to ensure a good seal. Fit one pre-filter into the filter holder. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 8 Snap the particle filter onto the gas filter. The arrows on the particle filter must point towards the gas filter. Do not press onto the centre of the filter, as it might damage the filter paper. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 9 SR 510 P3 or two SR 518 A2/SR510 P3, etc. When filters are changed, both filters/combined filters must be changed at the same time. Correctly mounted pre-filter holder. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 10 225 l/min. This is indicated by the larger green fan symbol lighting up. To revert to normal operation, press the control button once again. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 11 SR 530, hood SR 561, hood SR 562 or full face mask SR 200. Connect the hose from the head top to the fan unit and turn clockwise about 1/8 of a turn. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 12 Cause an air flow stoppage by gripping the top part of the bag or by shutting off the flow meter outlet. The fan unit should then initiate alarms by sound and light signals. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 13 Before putting it on, read the user instructions for the head-top. Grip the right part of the belt with your right hand. Then grip the left belt with your left hand. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...

  • Page 14: Clean And Disinfect

    Put the belt ends in the clips on each side of the belt. …clean and disinfect Sundström cleaning and disinfection tissues SR 5226 are recommended for daily care. Clean the outside of the fan unit. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 15 Check that all surface are clean. Clean the battery gasket. N.B. Check that the gasket which is situated around the contact plate opening underneath the battery is intact. If not, change battery. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...

  • Page 16: Schedule Maintenance

    Then prise out the filter. Change pre filter by pressing it in the middle and then removing it. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 17 Remove the old gasket Fit the new gasket onto the flange. Check that the gasket is in place all round. SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
  • Page 18 Check that there are filters in Incorrect filter combination. the fan unit and that they are No filter mounted. of the same type, e.g. SR 518 A2 + SR 510 P3 SR500ex PAPR — How to Copyright © 2020 by The S.E.A. Group...
