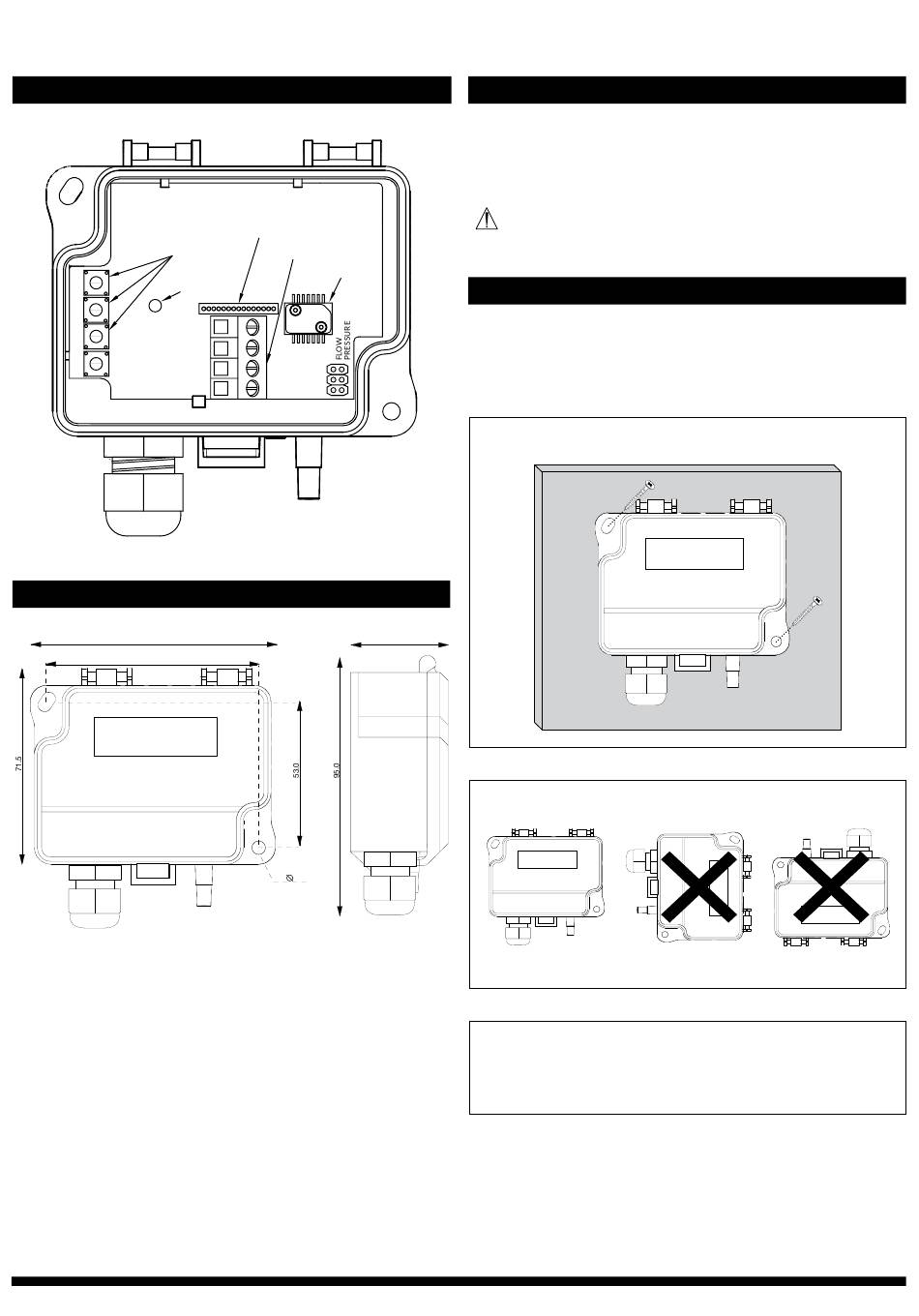

HK Instruments DPT-Flow Series Installation Instructions page 2

SCHEMATICS
Menu buttons
SELECT
LED
UP
V OUT
DOWN
P OUT
ZERO
DIMENSIONAL DRAWINGS
90.0
77.0
DPT-Flow
Copyright HK Instruments 2018
Connection for display
Terminal block
Pressure
sensor
24 V
4–20 mA
Out
GND
0–10 V
4.2
INSTALLATION
1) Mount the device in the desired location (see step 1).
2) Open the lid and route the cable through the strain relief and
connect the wires to the terminal block(s) (see step 2).
3) The device is now ready for configuration.
WARNING! Apply power only after the device is properly wired.
STEP 1: MOUNTING THE DEVICE
1) Select the mounting location (duct, wall, panel).
2) Use the device as a template and mark the screw holes.
3) Mount with appropriate screws.
36.0
YES
The pressure tubes are connected to a flow measurement probe (i.e. FloXact), or to the
measurement ports specified by the fan manufacturer. Please see the FloXact installation
guide or the fan manufacturer's technical specifications for more information.
www.hkinstruments.fi
Figure 1a - Surface mounting
Figure 1b - Mounting orientation
NO
Figure 1c - Application connections
NO
Installation version 7.0 2018
