Installation manual 2-SMART panel
1
Description of the 2VOICE system
The 2VOICE intercom system has the following characteristics:
•
Capability to manage up to 4 automatic switching main door units.
•
Capability to manage up to 32 columns, each one with 2 secondary call stations max.
•
Capability to manage up to 128 apartment stations for each column with a single power sup-
ply unit.
•
Capability to manage up to 4 apartment stations in parallel for each user.
•
Only 2 non-polarized wires in each system part.
•
No local power supply needed for call stations or apartment stations.
•
Wiring for derived branches made with 4-user distributor or directly in in/out mode on de-
vices terminal pins.
•
Short circuit protection on derived branches (use the 4-user distributor Ref. 1083/55).
•
Electric lock activation from all apartment stations; programmable activation time and mode
(free/secret).
•
Activation of a second lock (driveway) from all apartment stations.
•
A concierge switchboard can be connected to the system.
2
Description of the 2-SMART panel

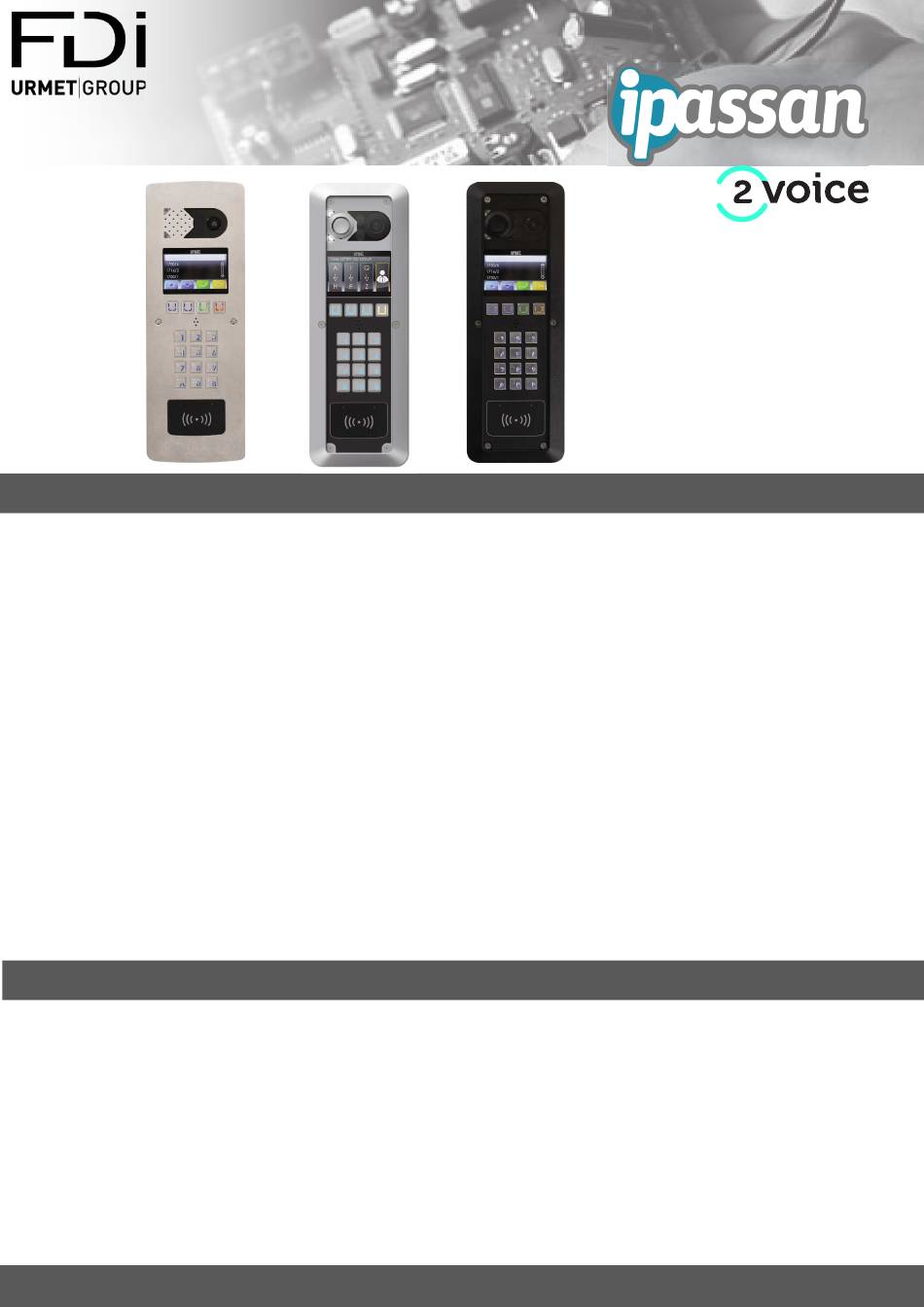

The door entry panel is made in ZAMAC material and can be with a black or grey frame. They are
composed of a graphical screen 4.3'' and a built-in 2-SMART reader which will be the gateway
between the iPassan controller and the 2VOICE panel.
A built-in color camera is included with a sensor for automatic lighting.
A built-in sensor which detects if the door stays opened.
They are DDA compliant with a built-in audio system for the hearing impaired.
DOC.50-001-759.A
FDI MATELEC SA Route de St Symphorien 85130 Les landes Génusson - France
www.fdimatelec.com
1
Advertisement
Table of Contents
Related Manuals for urmet domus FDi ipassan 2VOICE
Summary of Contents for urmet domus FDi ipassan 2VOICE
- Page 1 Installation manual 2-SMART panel Description of the 2VOICE system The 2VOICE intercom system has the following characteristics: • Capability to manage up to 4 automatic switching main door units. • Capability to manage up to 32 columns, each one with 2 secondary call stations max. •...

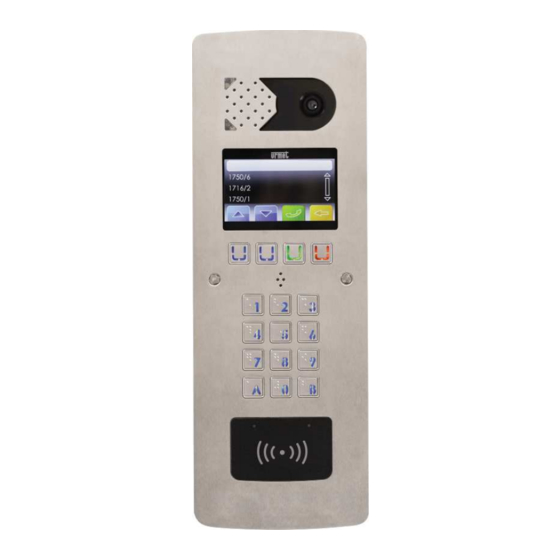

- Page 2 Front panel Zamac Screws: type Torx – vandal resistant Video camera Color screen TFT 4.3’’ Scrolling button and 4th button for concierge call or change the language 12 buttons keypad Built-in 2-SMART reader for iPassan Installation of the embedded box The embedded box is similar for any 2-SMART panel.
- Page 3 Settings The 2-SMART panel has been developed to be managed by ipassan Manager. By connection it to the ipassan controller, you are able to manage all the intercom functionnalities with the software and have a HLI for lift management. 4.1 ADMINISTRATOR CODE: When you fi...
- Page 4 1-Quit 2-Administration 1-Quit 2-Change password 3-Time and date 3-Maintenance 1-Quit 2-Logs 3-Events 4-Settings 1-Quit 2-Audio/Video 1-Quit 2-General 3-Volume audio messages 3-Sensor 4- LEDs camera ON 5-RAZ 6-General info 7-PSU Info. 4-Settings 1-Quit 2-Panel settings 3- Codes clavier internes 5-Settings 1-Keypads sound Information on union harmonisation legislation FDI MATELEC, as a manufacturer, declares under its sole responsibility that the product IPassan complies with the relevant...
