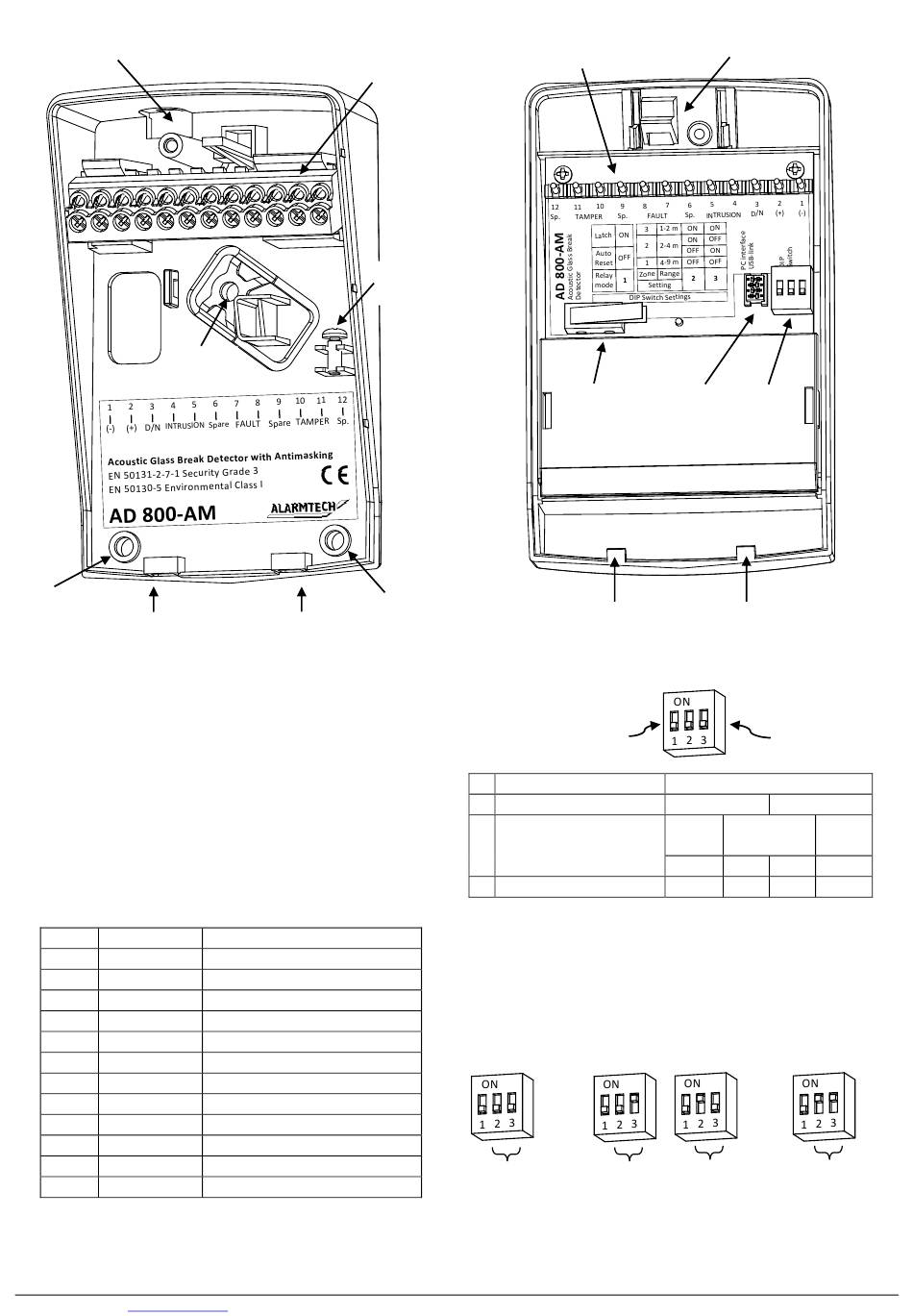

DETECTOR BASE AFTER REMOVAL OF THE COVER
Cable jacket
„knock-out"
Mounting
hole #1
Mounting
Slots for assembling
hole #2
the cover hooks
INSTALLATION
1. Choose the best mounting position on the wall or ceiling.
2. Loosen the cover screw and remove the upper part
3. Use the bottom part as a template and mark the place of the
holes of with a pen
4. Use a 2.5 mm drill for the self-tapping screws provided. If
necessary, use wall anchors
5. If necessary, cut out the marked "knockout hole" on the
back of the base with a pair of tongs
6. Pull the wiring cable through the "knockout hole" in the bot-
tom plate
7. Connect the wires to the screw terminals
Pin Marking
1 (-)
2 (+)
3 D/N
4 INTRUSION
5 INTRUSION
6 Spare
7 FAULT
8 FAULT
9 Spare
10 TAMPER
11 TAMPER
12 Spare
8. Use the cable strap provided to fix the wiring cable to the
detector.
9. Fix the detector firmly to the base with the enclosed screws.
© 2016 Alarmtech – www.alarmtech.se
Terminal
block
Cover
screw
Mounting
hole #3
Function
Ground
Plus 7 to 30 V DC
Day and Night control of LED
INTRUSION relay output C
INTRUSION relay output NC
Spare contact (unconnected)
FAULT relay output C
FAULT relay output NC
Spare contact (unconnected)
Tamper switch output C
Tamper switch output NC
Spare contact (unconnected)
COVER SEEN FROM BELOW
Terminal block pins
Tamper
switch
Hooks holding the cover to the base
UNDERSTANDING THE DIP SWITCH
INTRUSION relay mode
(DIP1)
# Function
1 INTRUSION relay mode
2 Range setting
3 Range setting
DIP1=ON: INTRUSION relay mode ON means the INTRUSION re-
lay will Latch and be open in alarm.
DIP1=OFF: INTRUSION relay mode OFF means the INTRUSION re-
lay will be auto reset after 2 seconds in alarm.
10. Set the desired range, i.e. the detector sensitivity setting by
using the DIP switch no 2 and 3.
4-9 m, Zone 1
OFF, OFF OFF, ON or ON, OFF
11. Check the window constructions and note what kind of glass
is used and especially in the pane closest to the room.
2 / 4
Cover lock
ON
1 2 3
PC DIP
interface switch
Range setting
(DIP2, DIP3)
Setting
ON - Latch OFF - Auto
4-9 m 2-4 m
Zone1 Zone 2
OFF OFF ON
OFF ON OFF
1-2 m, Zone 3
2-4 m, Zone 2
ON, ON
AD800-AM manual nh1643a_en
1-2 m
Zone 3
ON
ON
