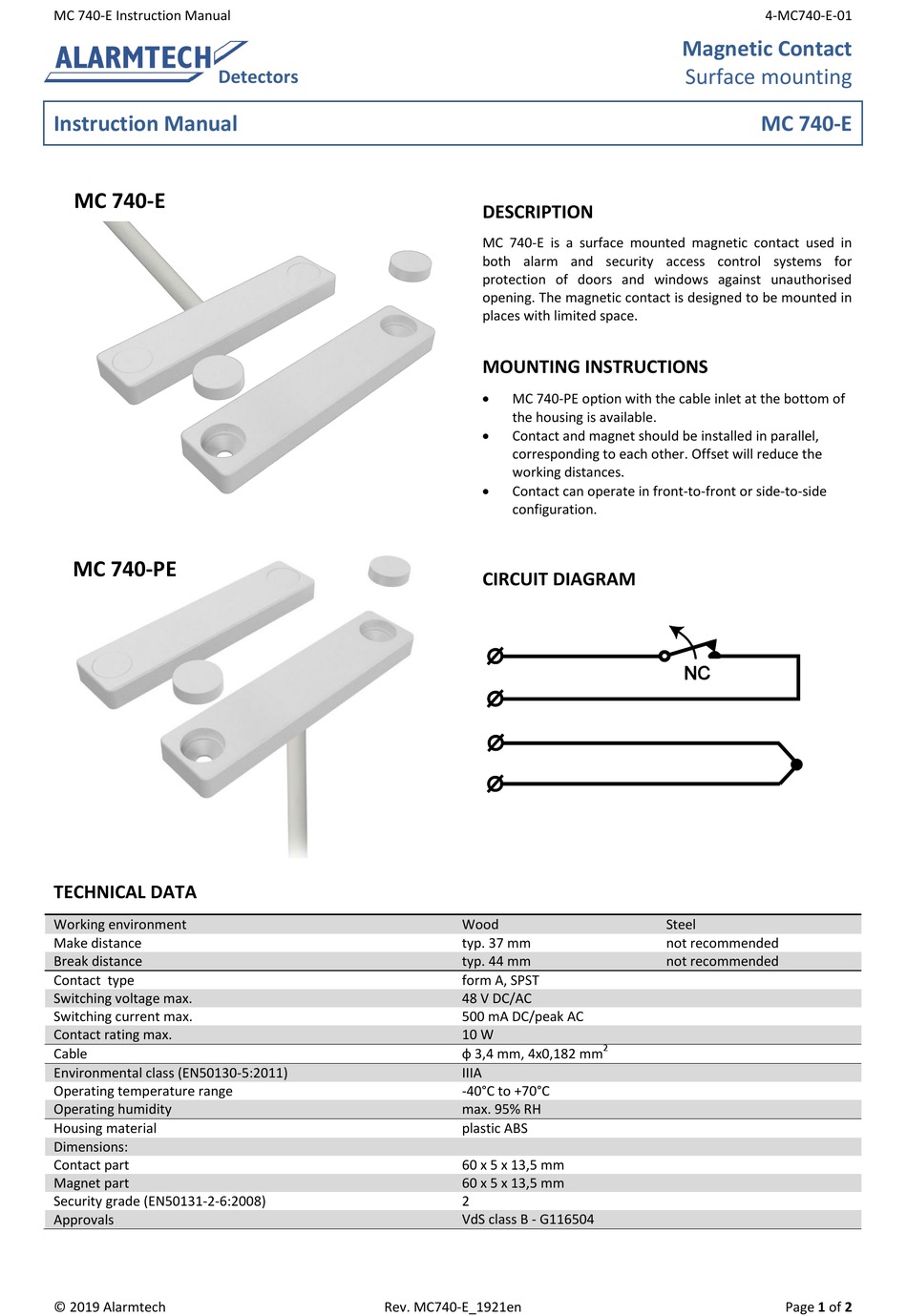

Alarmtech MC 740-E Instruction Manual

MC 740-E Instruction Manual
Detectors
Instruction Manual
MC 740-E
MC 740-PE
TECHNICAL DATA
Working environment
Make distance
Break distance
Contact type
Switching voltage max.
Switching current max.
Contact rating max.
Cable
Environmental class (EN50130-5:2011)
Operating temperature range
Operating humidity
Housing material
Dimensions:
Contact part
Magnet part
Security grade (EN50131-2-6:2008)
Approvals
© 2019 Alarmtech
DESCRIPTION
MC 740-E is a surface mounted magnetic contact used in
both alarm and security access control systems for
protection of doors and windows against unauthorised
opening. The magnetic contact is designed to be mounted in
places with limited space.
MOUNTING INSTRUCTIONS

MC 740-PE option with the cable inlet at the bottom of
the housing is available.

Contact and magnet should be installed in parallel,
corresponding to each other. Offset will reduce the
working distances.

Contact can operate in front-to-front or side-to-side
configuration.
CIRCUIT DIAGRAM
Wood
typ. 37 mm
typ. 44 mm
form A, SPST
48 V DC/AC
500 mA DC/peak AC
10 W
ф 3,4 mm, 4x0,182 mm
IIIA
-40°C to +70°C
max. 95% RH
plastic ABS
60 x 5 x 13,5 mm
60 x 5 x 13,5 mm
2
VdS class B - G116504
Rev. MC740-E_1921en
4-MC740-E-01
Magnetic Contact
Surface mounting
MC 740-E
Steel
not recommended
not recommended
