MC 740-E Instruction Manual
Detectors

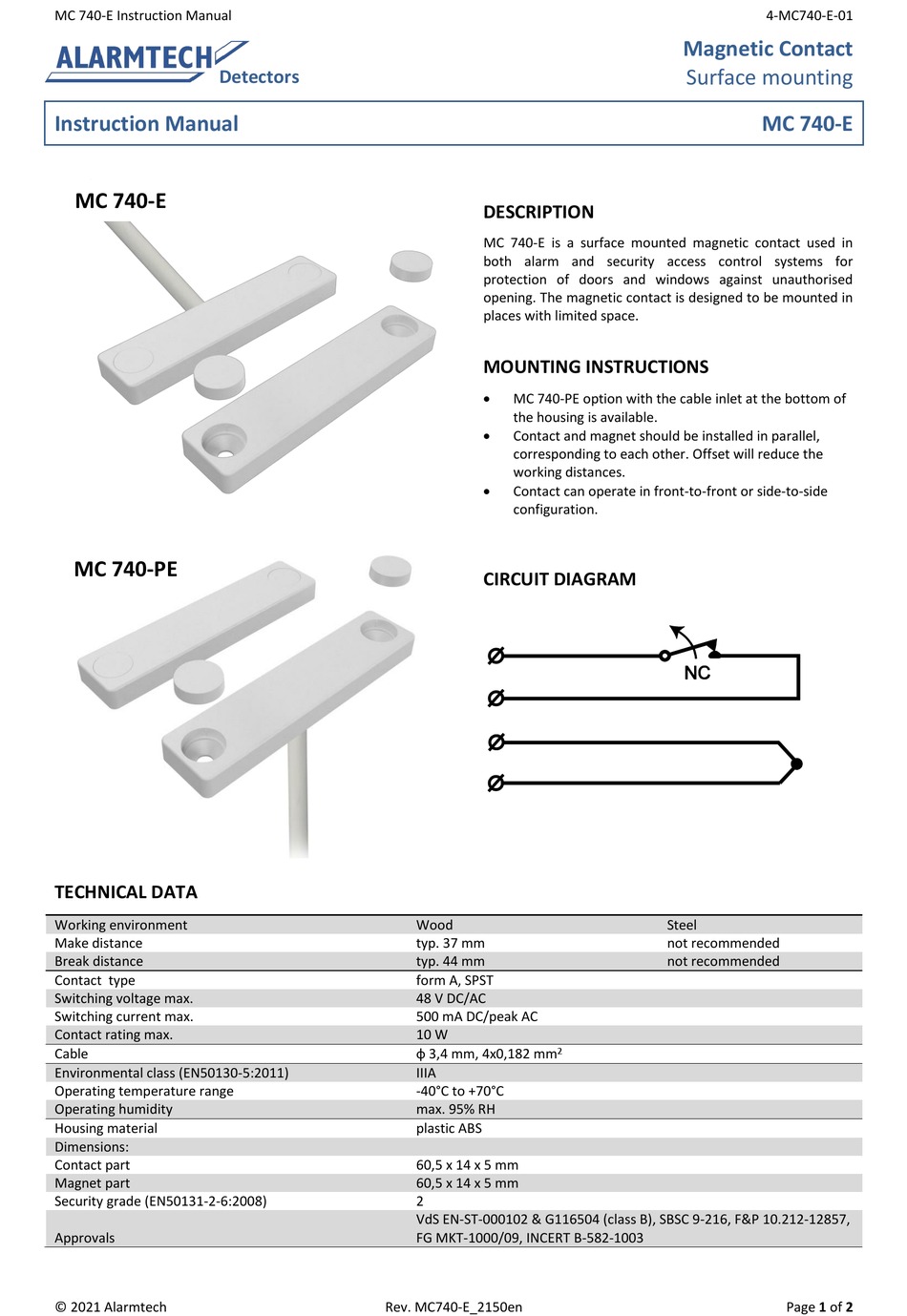

Instruction Manual
MC 740-E
MC 740-PE

TECHNICAL DATA

Working environment
Make distance
Break distance
Contact type
Switching voltage max.
Switching current max.
Contact rating max.
Cable
Environmental class (EN50130-5:2011)
Operating temperature range
Operating humidity
Housing material
Dimensions:
Contact part
Magnet part
Security grade (EN50131-2-6:2008)
Approvals
© 2021 Alarmtech

DESCRIPTION

MC 740-E is a surface mounted magnetic contact used in
both alarm and security access control systems for
protection of doors and windows against unauthorised
opening. The magnetic contact is designed to be mounted in
places with limited space.

MOUNTING INSTRUCTIONS


MC 740-PE option with the cable inlet at the bottom of
the housing is available.

Contact and magnet should be installed in parallel,
corresponding to each other. Offset will reduce the
working distances.

Contact can operate in front-to-front or side-to-side
configuration.

CIRCUIT DIAGRAM

Wood
typ. 37 mm
typ. 44 mm
form A, SPST
48 V DC/AC
500 mA DC/peak AC
10 W
ф 3,4 mm, 4x0,182 mm
IIIA
-40°C to +70°C
max. 95% RH
plastic ABS
60,5 x 14 x 5 mm
60,5 x 14 x 5 mm
2
VdS EN-ST-000102 & G116504 (class B), SBSC 9-216, F&P 10.212-12857,
FG MKT-1000/09, INCERT B-582-1003
Rev. MC740-E_2150en
Magnetic Contact
Surface mounting
Steel
not recommended
not recommended
2
4-MC740-E-01
MC 740-E
