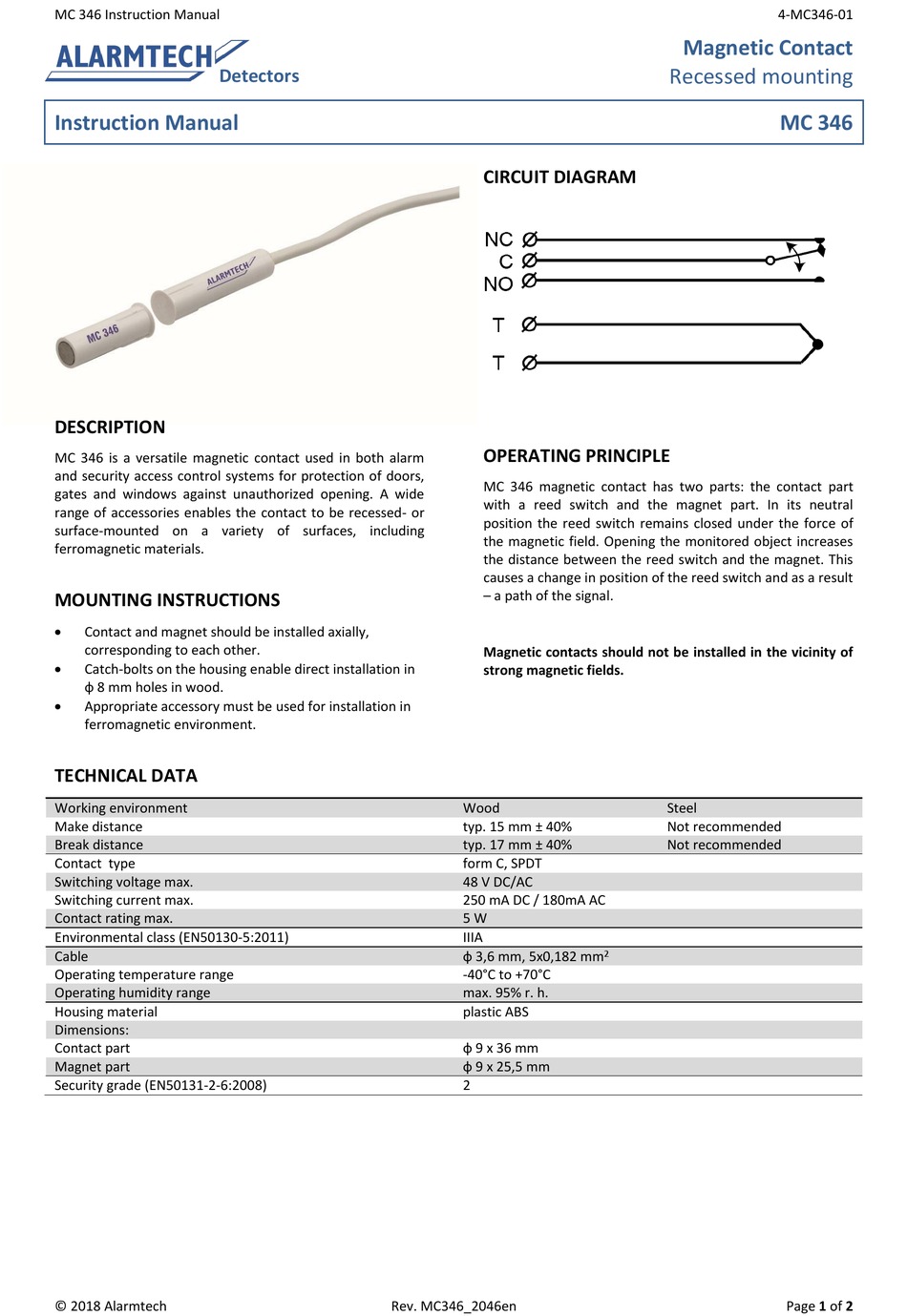

Alarmtech MC 346 Instruction Manual

MC 346 Instruction Manual
Detectors
Instruction Manual

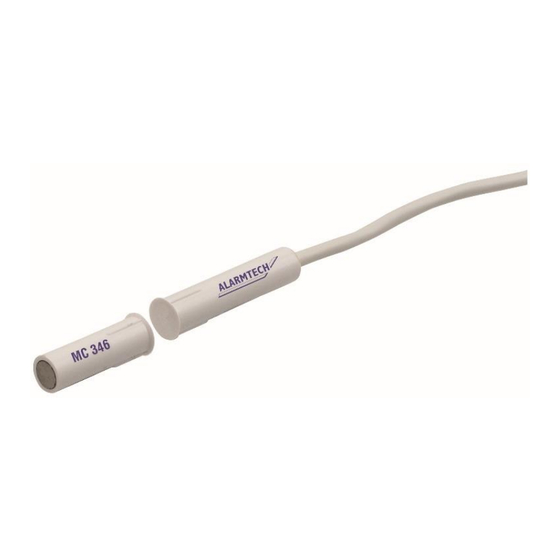

DESCRIPTION
MC 346 is a versatile magnetic contact used in both alarm
and security access control systems for protection of doors,
gates and windows against unauthorized opening. A wide
range of accessories enables the contact to be recessed- or
surface-mounted on a variety of surfaces, including
ferromagnetic materials.
MOUNTING INSTRUCTIONS

Contact and magnet should be installed axially,
corresponding to each other.

Catch-bolts on the housing enable direct installation in
ф 8 mm holes in wood.

Appropriate accessory must be used for installation in
ferromagnetic environment.
TECHNICAL DATA
Working environment
Make distance
Break distance
Contact type
Switching voltage max.
Switching current max.
Contact rating max.
Environmental class (EN50130-5:2011)
Cable
Operating temperature range
Operating humidity range
Housing material
Dimensions:
Contact part
Magnet part
Security grade (EN50131-2-6:2008)
© 2018 Alarmtech
CIRCUIT DIAGRAM
OPERATING PRINCIPLE
MC 346 magnetic contact has two parts: the contact part
with a reed switch and the magnet part. In its neutral
position the reed switch remains closed under the force of
the magnetic field. Opening the monitored object increases
the distance between the reed switch and the magnet. This
causes a change in position of the reed switch and as a result
– a path of the signal.
Magnetic contacts should not be installed in the vicinity of
strong magnetic fields.
Wood
typ. 15 mm ± 40%
typ. 17 mm ± 40%
form C, SPDT
48 V DC/AC
250 mA DC / 180mA AC
5 W
IIIA
ф 3,6 mm, 5x0,182 mm
-40°C to +70°C
max. 95% r. h.
plastic ABS
ф 9 x 36 mm
ф 9 x 25,5 mm
2
Rev. MC346_2046en
Magnetic Contact
Recessed mounting
Steel
Not recommended
Not recommended
2
4-MC346-01
MC 346
Page 1 of 2
