3 ） Move the unit with installed heat pipe and fittings before the window, and the distance between the body and walls or
other objects shall be least 50 cm (as shown in Fig.4).
4 ） Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of the window sealing
plate assembly (as shown in Fig.5 and Fig.6).
Notes ： 1: The flat end of the exhaust pipe joints must be snapped into place.
2: The pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep the ventilation of the exhaust
pipe unblocked.
Important Notice:
The length of the exhaust hose shall be 280~1,500mm, and this length is based on the specifications of the unit. Do not use
extension tubes or replace it with other different hoses, or this may cause a malfunction. Exhaust host must be unblocked;
otherwise it may cause overheating.

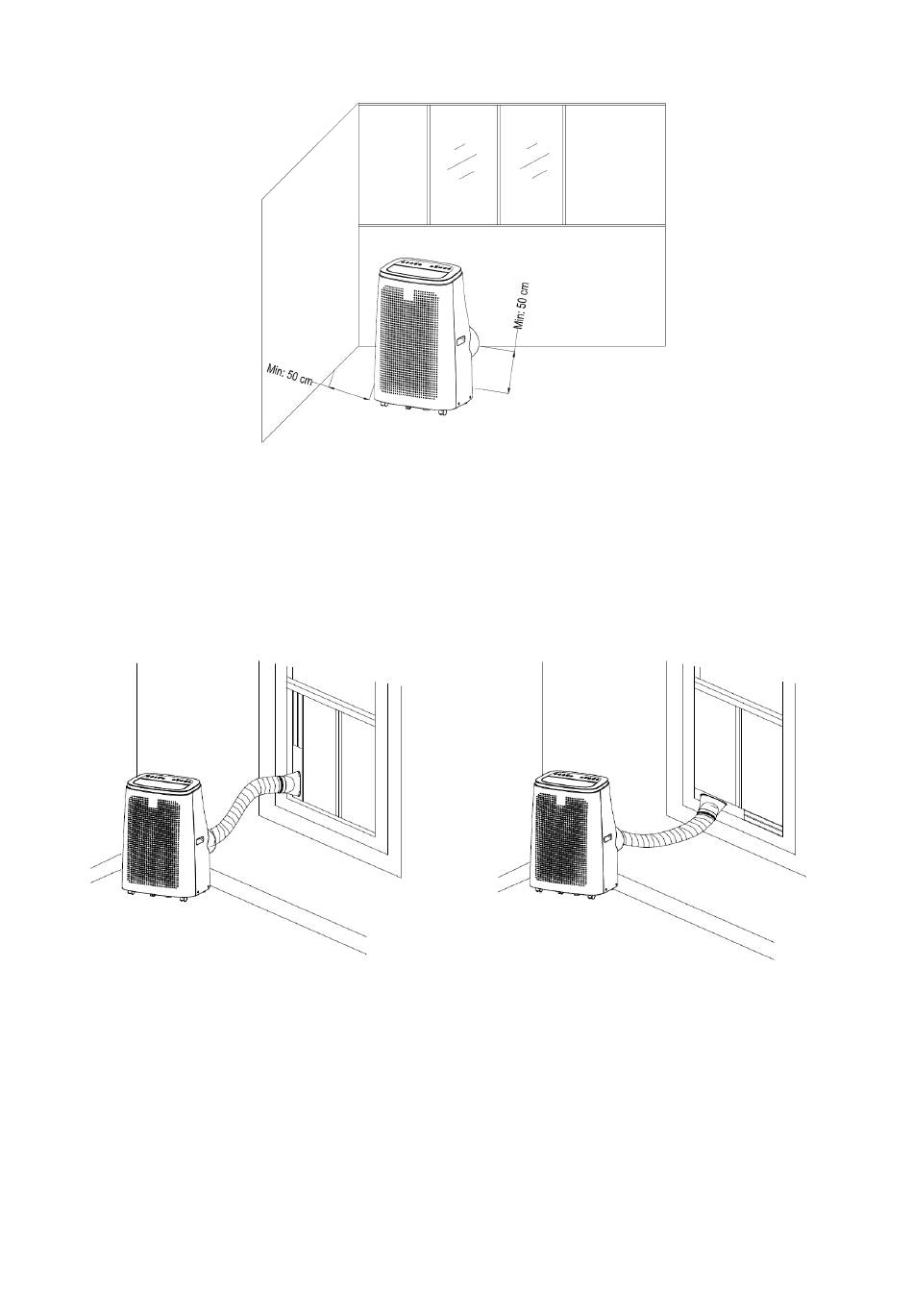

Figure 5
