1.Installation：
Warning: before using the unit, keep it upright for at least two hours.
The unit can be easily moved in the room. In the moving process, ensure that the unit is in the upright position and should
be placed on a flat surface. Do not install and use the unit in the bathroom or other humid environments.

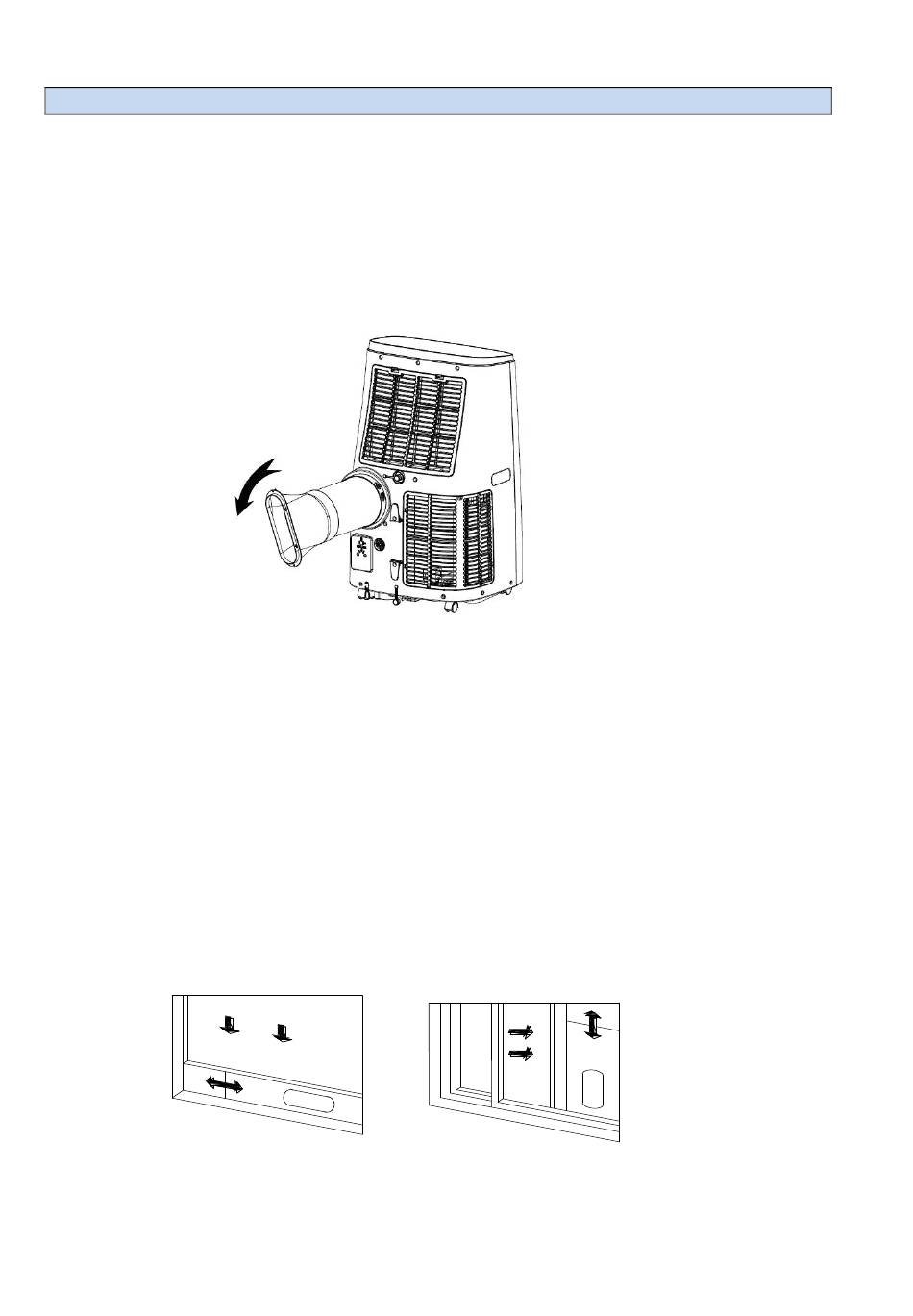

9.1 Install the heat pipe assembly （as shown in Fig.1）
1）take out the outer connector assembly and the exhaust pipe assembly, and remove the plastic bags;
2）insert the heat pipe assembly (the end of the exhaust joint) into the back panel vent slot (push to the
left) and complete the assembly (as shown in figure 1).
1.2 Installation of window sealing accessories
1.2.1 Window plate for sliding windows
1 ） Half open the window ， and mount the window sealing plate assembly to the window (as shown in Fig.2 and
Fig.3).Components can be placed in horizontal and vertical direction.
2 ） Pull various components of the window sealing plate assembly open, adjust their opening distance to bring
both ends of the assembly into contact with the window frame, and fix various components of the assembly.1.2 Install the
window sealing plate assembly.
Notes: 1: The flat end of the exhaust pipe joints must be snapped into place.
2: The pipe cannot be distorted nor has substantial turning (greater than 45 °). Keep the ventilation of the exhaust
pipe unblocked.
Figure 2

INSTALLATION AND ADJUSTMENT

Figure 1
Figure 3
17
