EINHELL GARDENLINE GLEKS 2440 Quick Start Manual

Quick start guide

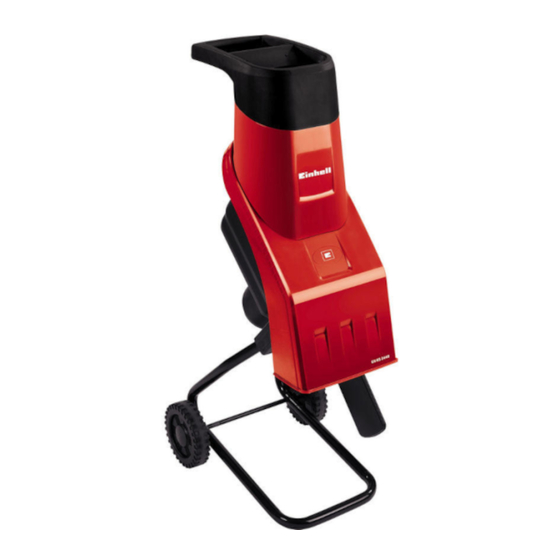

2400 W Electric Impact Shredder
Read the safety instructions in the user guide before you start.
1. Pack contents/parts
NOTICE!
This quick start guide is intended for experienced users. Please refer to the main Instruction Manual
for further details.
NOTICE!
Diagram numbers refer to those in the main Instruction Manual. Please refer to the main Instruction
Manual if you are unsure.
Fig. 1
1
2
26
10
4
13
5
3 5 23 7 6 4 15
9 22 13 10 14
(Shredded material
bag not included)
AFTER SALES SUPPORT 0151 649 1500
66926_3430345_11026_qgs.indd 1
1
Loading tunnel inlet
2
Loading tunnel
8
3
Motor housing with cutter plate
4
Plunger
12
5
Complete chassis
11
6
Wheels – 2pcs
7
Axle
8
Transport handle
3
9
Mains plug
10
Mounting for plunger
9
11
On/Off switch
12
Release screw
13
Wheel hubs – 2pcs
14
Ring wrench - 12mm
7 6
15
Hexagon Allen key
16
Screw for chassis assembly – 2pcs
17
Washer for chassis assembly – 2pcs
16 17 18 19 20 21
18
Sleeve (Thick-short) – 2pcs
19
Sleeve (Thin-long) – 2pcs
20
Washer, outside – 2pcs
21
Hexagon Nut – 2pcs
22
Shredded material bag (Not included)
23
Hooks on chassis for shredder debris bag
24
Original operating & safety instructions
25
24 25 Quick set-up guide
26
Ejector chute
1890 946244 www.einhell.co.uk
2. Safety
Explanation of the symbols and types of instructions used (See Fig. 2)
1
Warning! Read the user manual and follow the warnings and safety instructions.
2
Take care when the blades are rotating. Do not put your hands or feet into openings when the machine is running.
3 Important! Keep other persons and animals away from the danger zone.
4 Important! Protect the machine from the damp and never expose it to rain.
5 Important! Always wear safety goggles, ear defenders, protective gloves and heavy-duty work clothes!
6
Always set the ON/OFF switch to OFF and pull the power plug out of the socket-outlet before doing any work on
the shredder, e.g. cleaning the shredder and making adjustments, or if the power cable becomes damaged.
7 Protection class II; double-insulated
8
Noise emission complies with Directive 2000/14/EC!
Fig. 2
1 2 3 4
Explanation of the pictograms for handling on the machine (See Fig. 3)
DANGER!
Take care when the blades are rotating. Do not put
2
your hands or feet into openings when the machine
is running. RECOMMENDED!
Important! Keep other persons and animals away
3
from the danger zone.
MODEL: GLEKS 2440
5 6 7 8
Fig. 3
2 3
Continued
overleaf...
PRODUCT CODE: 66926 08/2016
