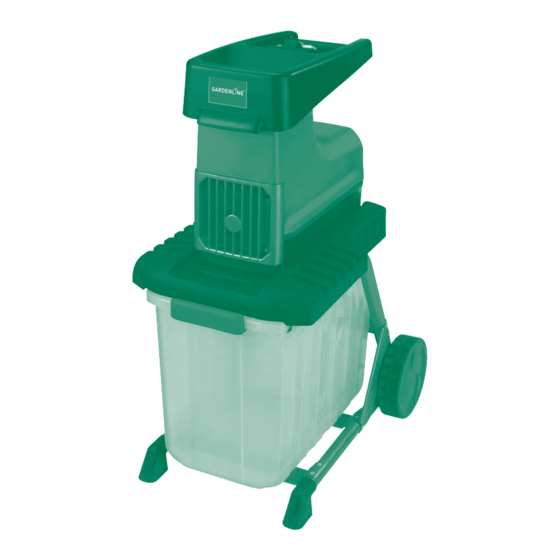

GQS 2540; EX; UK
Electric Silent Shredder

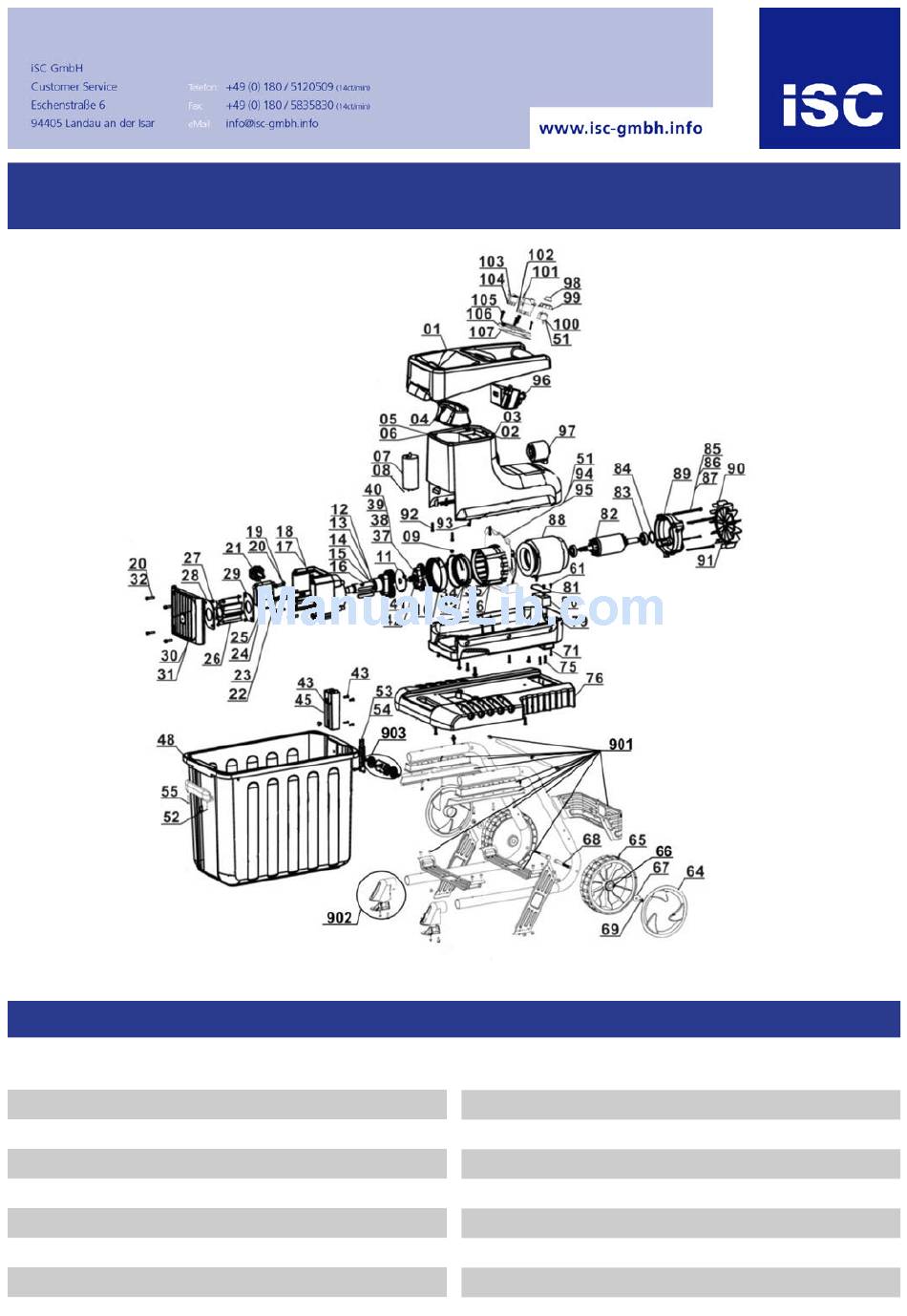

Komponenten / Ersatzteile
Position
Artikel-Nr.
1
343059101008
4
343058001014
5
343058001015
6
343058001016
7
343058001017
8
343058001018
9
343058001019
10
343058001020
Artikel-Nr.: 3430596
Ident-Nr.:
Beschreibung
feeding barrel
feeding inlet
shell
quadrate buna
capacitor 42.5uf/450v
lock washer 8
washer
2nd inner gear
11013
Position
Artikel-Nr.
11
343058001021
12
343058001022
13
343058001023
14
343058001024
16
343058001026
17
343058001027
21
343059101006
24
343058001034
Beschreibung
diaphragm plate
2nd planetary gear
blade shaft
flat key 10x60 10 x 60
bushing 8x12x12 8 x 12 x 12
blade frame
knob zur Gegenmesser-Einstellung
retainer block für Messerwalze

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the gardenline GQS 2540 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EINHELL gardenline GQS 2540

Summary of Contents for EINHELL gardenline GQS 2540

  • Page 1 GQS 2540; EX; UK Artikel-Nr.: 3430596 Electric Silent Shredder Ident-Nr.: 11013 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung Position Artikel-Nr. Beschreibung 343059101008 feeding barrel 343058001021 diaphragm plate 343058001014 feeding inlet 343058001022 2nd planetary gear 343058001015 shell 343058001023 blade shaft 343058001016 quadrate buna 343058001024 flat key 10x60 10 x 60 343058001017...
  • Page 2 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung 343058001035 O-ring 8.2x1.9 343058001036 blade 343058501040 end cover 343058001045 gear box 343058001046 oil sealing 28x17x6 343058001053 safety cover 343059101001 grass box (transparent), green 343059101005 cover of wheel (Green) Gardenline 343059101004 wheel 343058001076 bushing 8x12x39 für Rad 343058001077 flat washer 8 für Rad 343058001078...
  • Page 3 Please do not over adjust the adjusting button so the Counter blade meets the cutter as this will damage the blade (refer to user guide). After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_qgs.indd 1 10/04/2013 10:52...
  • Page 4 3 year parts and labour guarantee 3 year parts and labour guarantee you have the added peace of mind of dedicated helplines and web support. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk www.einhell.co.uk www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 1 10/04/2013 10:53...

  • Page 5: Table Of Contents

    Contents Page Welcome General Information and Safety Instructions Assembly and Parts List Features Instructions Useful information Warranty Card After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 2 10/04/2013 10:53...

  • Page 6: Welcome

    This does not affect your statutory rights. However, be aware that the warranty will become null and void if the product is found to have been deliberately damaged, misused or disassembled. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 3 10/04/2013 10:53...

  • Page 7: General Information And Safety Instructions

    Keep all safety regulations and instructions in a safe place for future use. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 4 10/04/2013 10:53...
  • Page 8 If you interrupt your work to move to a different position it is imperative to switch off the shredder while you are relocating it. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 5 10/04/2013 10:53...
  • Page 9 Have essential repairs carried out without delay. • Never use replacement parts or accessories which are not foreseen or recommended by the manufacturer. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 6 10/04/2013 10:53...
  • Page 10 Never stand higher than the machine when feeding material into it. • Keep away from the discharge zone when you start the machine. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 7 10/04/2013 10:53...
  • Page 11 Damaged or illegible labels must be replaced. • Connect the equipment to the power supply only via an earth-leakage circuit breaker with max. 30mA tripping current. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 8 10/04/2013 10:53...

  • Page 12: Assembly And Parts List

    • Inspect the equipment and accessories for transport damage. • If possible, please keep the packaging until the end of the guarantee period. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 9 10/04/2013 10:53...
  • Page 13 Assembly and Parts List Fig. 1 Fig. 2 Fig. 3 After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 10 10/04/2013 10:53...
  • Page 14 Lock the shredded material debris box with the safety switch (Fig. 12/Item A) in position by pushing upwards. Fig. 4 Fig. 5 Fig. 6 Fig. 7 After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 11 10/04/2013 10:53...
  • Page 15 Assembly and Parts List Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12 After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 12 10/04/2013 10:53...

  • Page 16: Features

    Direction Selection switch: For a description of the changeover switch see point Fig 13 / Item C. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 13 10/04/2013 10:53...
  • Page 17 The cutters continue to run for a few seconds after the motor is switched off. Fig. 17 Disconnect mains plug before working on blade! After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 14 10/04/2013 10:53...

  • Page 18: Instructions

    Direction selection switch (Fig.13/Item C) IMPORTANT! The switch for selecting the direction of rotation can only be moved when the shredder is switched off. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 15 10/04/2013 10:53...
  • Page 19 Large items or pieces of wood will be discharged both in the cutting and in the release direction after the blade has been started and reversed several times. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 16 10/04/2013 10:53...
  • Page 20 Use a plunger or hook to remove jammed objects from the funnel or discharge openings. IMPORTANT! The material will be crushed, mashed and shredded by the cutting unit, thus accelerating the decomposition process for composting. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 17 10/04/2013 10:53...
  • Page 21 After a half-turn the counter blade will have moved 0.50 mm closer to the shredding blade. After completing this adjustment check whether the blade produces the desired results. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 18 10/04/2013 10:53...
  • Page 22 If you do not intend to use the shredder for a lengthy period, protect it from corrosion using environmentally friendly oil. • Store the device in a dry room. • Store the device out of reach of children. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 19 10/04/2013 10:53...
  • Page 23 Fully loosen the 4 Allen screws (Fig. 15a/Item K). Note: The Allen screws can only be loosened, and not removed. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 20 10/04/2013 10:53...
  • Page 24 Article number of the machine (34.305.96) Identification number of the machine (11013) Replacement part number or description of the part required For our latest prices and information please go to www.einhell.co.uk After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk...

  • Page 25: Useful Information

    The material is The counter blade is Adjust the counter blade. not shredded not set correctly. See page 18 for how to do so. properly After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 22 10/04/2013 10:53...

  • Page 26: Technical Data

    Damage to hearing if no suitable ear protection is used. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 23 10/04/2013 10:53...
  • Page 27 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of Einhell UK Ltd. After SAleS Support 0151 649 1500 1890 946 244 www.einhell.co.uk...
  • Page 28 Useful Information After SAleS Support 0151 649 1500 0844 801 8701 1890 946 244 1890 946 244 www.einhell.co.uk www.einhell.co.uk MODEL: GQS 2540 MODEL: GQS 2540 56525_34.305.96_11013_ug.indd 25 10/04/2013 10:53...
  • Page 29 AFTER SALES SUPPORT, and choose the the warranty)? option for Spare Parts. 2. Or contact via the Einhell UK Ltd website, where spares information & prices are available. To avoid danger, immediately unplug from the mains supply and get an electrician or suitably qualified person to: -...

  • Page 30: Warranty Card

    *We recommend you keep the receipt with this warranty card location of purchase Description of malfunction: After SAleS Support return your completed warranty card to: 0151 649 1500 einhell uK ltd www.einhell.co.uk 1890 946 244 unit 9, Stadium Court Wirral International Business park MODEL: GQS 2540...

  • Page 31: 56525_34.305.96_11013_Ug.indd 2

    56525_34.305.96_11013_ug.indd 28 10/04/2013 10:53...
