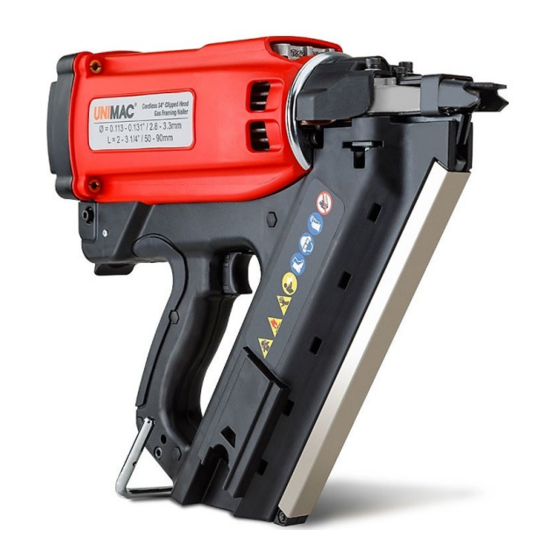

Cordless 34° Gas Powered Framing
Nail Gun
User Manual
[Revision 3.0 February 2019]
READ THIS MANUAL CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE – FAILURE TO DO SO
MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • Products covered by this manual
may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2019 Unimac
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Unimac LXG3000
Summary of Contents for Unimac LXG3000
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE © 2019 Unimac...
-
Page 2: Safety
• Use combustion engines OUTSIDE ensure these are connected and used • For specific equipment safety use and only, and far away from windows, doors properly. Dust collection can reduce care, see Equipment Safety. and vents. dust-related hazards. E&OE © 2019 Unimac... - Page 3 Electrical shock can be • Do NOT make adjustments while the fatal. equipment is running. • Perform service related activities in suitable conditions, such as a workshop. • Replace worn, damaged or missing warning/safety labels immediately. E&OE © 2019 Unimac...
-
Page 4: Safety Symbols
Wear appropriate Always wait for moving parts injury to fingers, limbs, blood clothing and protectiove to stop fully before handling etc. Take due care when devices. the product, adjusting, handling and using the maintenence etc. product. E&OE © 2019 Unimac... - Page 5 Use machine to PULL only. is not kinked or knotted. minimum number of cable and load. Do NOT use winch coils on winching mechanism. to move people. Winch Hook Hazard Carry hook to load – do NOT throw or run. E&OE © 2019 Unimac...
-
Page 6: Equipment Safety
• Do NOT use the equipment for purposes it is not designed for. • ALWAYS use accessories (nails, fuel cell cartridges etc) that are directly compatible with the tool. E&OE © 2019 Unimac... - Page 7 Transport the tool in its case (if applicable). • Do NOT store fuel cells or batteries in direct sunlight, enclosed vehicles etc. Always keep them below 50°C (120°F). E&OE © 2019 Unimac...
-
Page 8: Table Of Contents
Before Use - Check the Contact Safety Pin and Trigger Mechanism ............11 Loading Fasteners ........................... 12 Compatible Fastener Size ......................... 12 Loading Fuel Cells ........................... 13 Nailing ............................... 14 Depth Adjustment............................. 15 Removing Jammed Fasteners ......................... 15 Maintenance ............................. 16 Troubleshooting ............................16 Specifications ........................... 17 E&OE © 2019 Unimac... -
Page 9: Parts Identification
Nail Feeder / Clip Fuel Cell Adaptor (includes spares) Piston O-Ring (technician use only) Firing Tip Spark Plug (technician use only) Trigger Battery Status Indicator Gas Cartridge Cover Hook Battery Charging Dock Battery Battery Charger Power Supply E&OE © 2019 Unimac... -
Page 10: Batteries And Battery Charging
Insert the battery (A) into the back of the magazine until it "clicks" into place. To remove the battery, press and hold the lock button (B) down and simultaneously pull the battery from of the tool. E&OE © 2019 Unimac... -
Page 11: Operation
10. While holding the nail feeder (A) near the centre of the magazine (to simulate loaded nails), place the safety contact pin on the work piece and press the machine down to push the safety contact pin in, then pull the trigger, the machine MUST fire. E&OE © 2019 Unimac... -
Page 12: Loading Fasteners
3. Pull the lever (D) on the nail feeder to release it from the locked position, then release the lever to allow the "shoe" (E) to lower. Gently move the nail feeder forward in the magazine so the shoe is pushing against the last nail in the nail strip. Compatible Fastener Size E&OE © 2019 Unimac... -
Page 13: Loading Fuel Cells
(D). 4. Close the fuel cell compartment cover by pivoting it around so the pins in the cover enter the guide grooves, then pushing it forward then down so it is firmly locked in position. E&OE © 2019 Unimac... -
Page 14: Nailing
1. Press the safety contact pin (A) against the work piece so the safety contact pin is pushed in. 2. Pull the trigger (B) to fire the fastener. 3. Release the trigger and lift the tool from the work piece so the safety contact pin extends. 4. Repeat 1 to 3 for each fastener. E&OE © 2019 Unimac... -
Page 15: Depth Adjustment
4. For the jammed fasteners, attempt to remove them with pliers or similar, however, do not use excessive force. 5. Re-install the nailing head bolts and washers. Note that if the collets (C) fall from the magazine, re-install them with the collar-end (D) facing into the magazine. E&OE © 2019 Unimac... -
Page 16: Maintenance
Nail feeder jam or nail jam. Clean and lubricate nail feeder and magazine. Remove jammed nails if applicable. Low fuel cell Use new fuel cell. Other tool fault Have tool inspected and repaired at an authorised service centre. E&OE © 2019 Unimac... -
Page 17: Specifications
Battery Charger Electrical Requirements 240VAC / 50Hz Battery Type 7.4V 1.2Ah Lithium-Ion Nail Size Range 50mm (2") to 90mm (3.5") length / 2.9mm (0.113") to 3.3mm (0.131") diameter Nail Type 48 nail paper collated strip, 34° clipped head E&OE © 2019 Unimac... - Page 18 ©2019 Unimac. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
