Unimac CLS400 User Manual

Cordless nail gun
Hide thumbs
Table of Contents

Advertisement

Quick Links

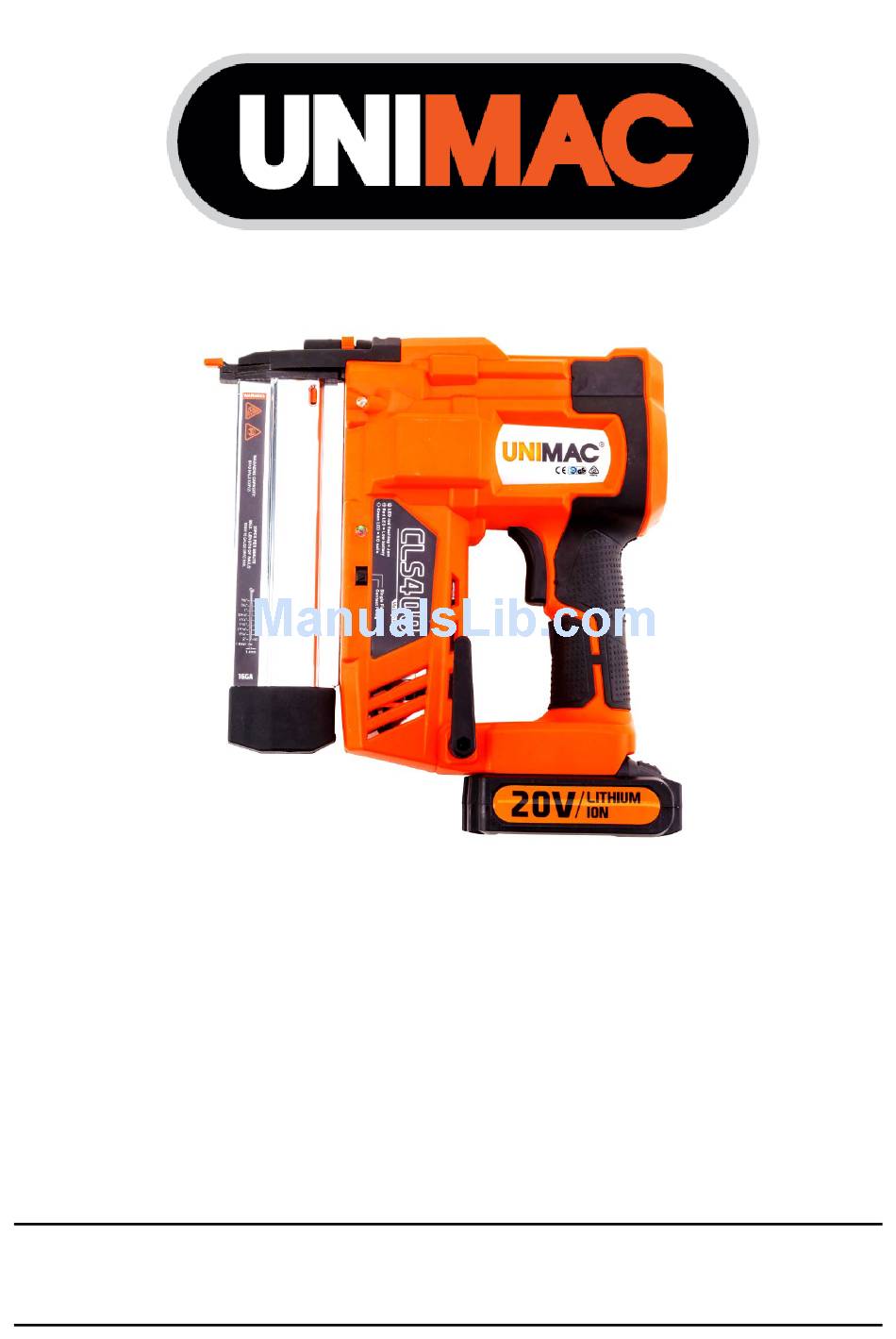

CLS400/CLS500 20V
Cordless Nail Gun
User Manual
[Revision 2.0 April 2017]
READ THIS MANUAL CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE – FAILURE TO DO SO
MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • Products covered by this manual
may vary in appearance, assembly, inclusions, specifications, description and packaging.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLS400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unimac CLS400

Summary of Contents for Unimac CLS400

  • Page 1 CLS400/CLS500 20V Cordless Nail Gun User Manual [Revision 2.0 April 2017] READ THIS MANUAL CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • Products covered by this manual...

  • Page 2: Safety

    CLS400/CLS500 20V Cordless Nail Gun Safety Read and understand all safety warnings before using the tool. • Ensure that no part of any human, animal or clothing is placed in/near the area where nails are fired out of the gun, regardless of whether you think the gun is empty or loaded with nails.
  • Page 3 CLS400/CLS500 20V Cordless Nail Gun • Do not open the battery – danger of short-circuiting. • Do not attempt to destroy or disassemble battery pack or remove any of its components. • Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.

  • Page 4: Table Of Contents

    CLS400/CLS500 20V Cordless Nail Gun Table of Contents Safety ..........................1 Parts Identification ......................4 Batteries and Battery Charging ..................5 Inserting and Removing the Battery Pack ..................5 LED Lighting ..........................5 Before Use - Check the Contact Safety Pin and Trigger Mechanism ......6 Tool Status Indicators ......................

  • Page 5: Parts Identification

    CLS400/CLS500 20V Cordless Nail Gun Parts Identification Name Name Driving Cylinder Battery Trigger LED Lamp Firing Mode Switch Depth Adjustment Wheel LED Indicator Low Fastener Indicator Magazine (release lever on other side) Belt Hook Safety Contact Tip E&OE © 2017 Unimac...

  • Page 6: Batteries And Battery Charging

    CLS400/CLS500 20V Cordless Nail Gun Batteries and Battery Charging NOTE: Batteries for this tool are supplied in a low-charge condition for shipping reasons. • A battery that is new or has not been used for a long period does not charge to full capacity until after approximately 5 charge/discharge cycles.

  • Page 7: Before Use - Check The Contact Safety Pin And Trigger Mechanism

    CLS400/CLS500 20V Cordless Nail Gun Before Use - Check the Contact Safety Pin and Trigger Mechanism Before using the tool, perform the following procedure to ensure that the contact firing safety mechanism is operating correctly. If it is not, do NOT use the tool – have it inspected and repaired by an authorized service center or technician.

  • Page 8: Tool Status Indicators

    CLS400/CLS500 20V Cordless Nail Gun Tool Status Indicators The tool has a status LED indicator: • Red - Battery requires charging. • Red Flash - Fastener jam – remove jammed fasteners. • Green – No fasteners – load fasteners. E&OE...

  • Page 9: Loading Fasteners

    CLS400/CLS500 20V Cordless Nail Gun Loading Fasteners Do not load fasteners of different lengths. • Do not load both staples and nails together. NOTE: When the number of fasteners in the magazine is less than 10, the low fastener indicator on the magazine starts becoming visible. When no fasteners are in the magazine the low fastener indicator is fully visible and the LED is green.

  • Page 10: Nailing And Stapling

    CLS400/CLS500 20V Cordless Nail Gun Nailing and Stapling Do not keep the trigger pulled when the machine is not in use or modify the trigger to remain pulled after you release it. NOTE: Check that the fasteners are loaded correctly into the magazine. • Make sure the battery is fully charged.

  • Page 11: Contact Firing Mode

    CLS400/CLS500 20V Cordless Nail Gun Contact Firing Mode Place the mode switch in the Contact Firing position. Pull the trigger and keep it pulled (the tool will not fire at this stage). Press the safety contact pin against the work piece so the safety contact pin is pushed in. The tool will fire.

  • Page 12: Technical Specifications

    CLS400/CLS500 20V Cordless Nail Gun Technical Specifications CLS400 Battery Charger Input Voltage 100 to 240VAC, 50/60Hz Input Voltage 20VDC Firing Speed Rated @ 30 nails/min; max. 60 nails/min Nail Magazine Capacity Holds up to 100 nails Nail Length 15 to 50mm 16-gauge nail...
  • Page 13 ©2017 Unimac. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.

This manual is also suitable for:

Cls500
