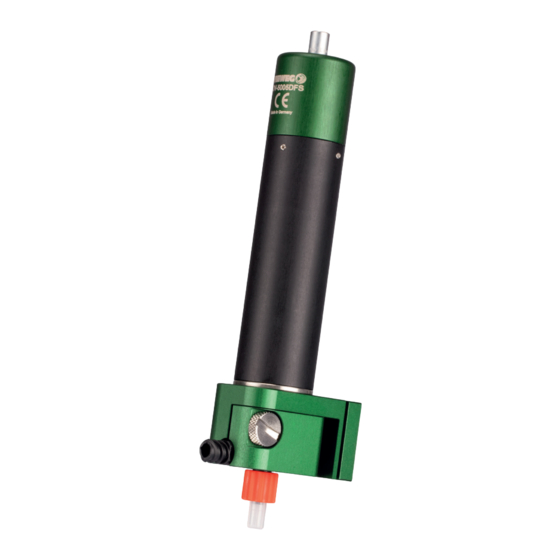

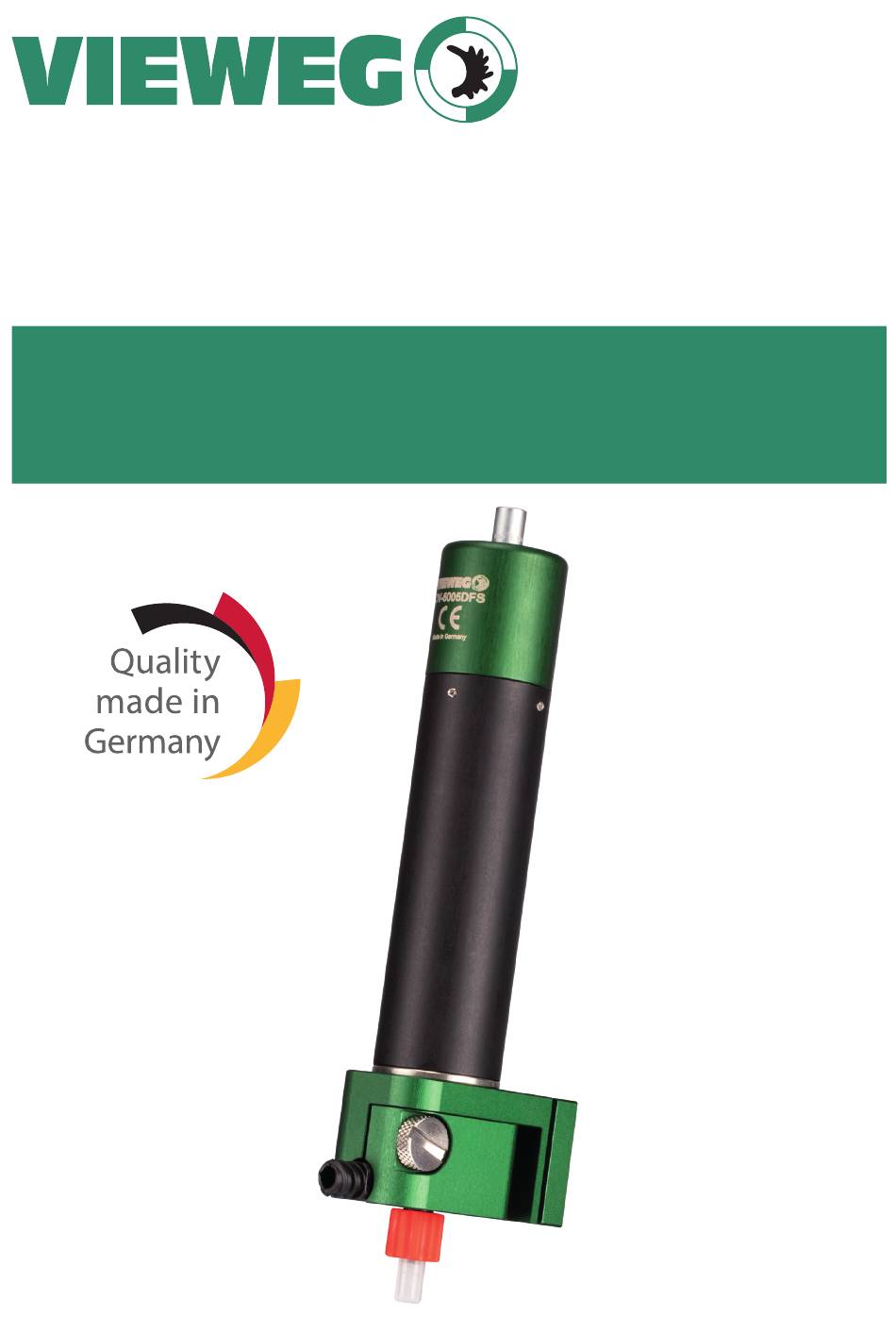

- Page 1 Dosier- und Mischtechnik User manual Screw Valve DV-5005DFS /-L Version 2018/08-01...
-
Page 2: Table Of Contents
Manual Screw Valve DV-5005DFS /-L VIEWEG Dear Customer Thank you for purchasing the screw valve DV-5005DFS. For easy operating we developed this user manual. Your Vieweg Team Table of contents 1 Designated use ..........2 2 Scope of delivery . -
Page 3: Scope Of Delivery
Manual Screw Valve DV-5005DFS /-L VIEWEG 2 Scope of delivery The following parts are included in the scope of delivery: Valve body (Item.-No. DV-5005DFS or DV-5005DFS-L) Barrel holder for screw valve (Item.-No. V-0070) Reducing rings 10 cc (Item.-No. 560943V) 5 cc (Item.-No. 561184V) 3 cc (Item.-No. -
Page 4: Technical Data
Manual Screw Valve DV-5005DFS /-L VIEWEG 3 Technical data Motor voltage / power rating 24 V DC, 6 Watt No load current (motor only) 60-70 mA Starting current max. 1,5 A Terminal resistance 21,6 Ohm Size 153 x 40 x 34 mm... - Page 5 Manual Screw Valve DV-5005DFS /-L VIEWEG No. in Fig. 1 Description Item-No. Motor assembly V-0051 Valve housing DV-5005DFS, door right V-0090 Valve housing DV-5005DFS-L, door left V-0090-L Disposable path assembly (6-, 8- or 16-pitch DFS6-A /-8-A/-16-A Syringe bracket assembly V-0070...
-
Page 6: Operating Principle
Manual Screw Valve DV-5005DFS /-L VIEWEG 5 Operating principle Fig. 2 The DV-5000DFS dispenses fluid with a positive displacement action using a rotary feed screw principle. Fluid material is held in a feed reservoir (1), see Figure 2, under a positive head of air, between 1 to 20 psi (depending upon the viscosity of the material). -
Page 7: Installation
Manual Screw Valve DV-5005DFS /-L VIEWEG DFS6-A DFS8-A DFS16-A Flow rates for the various spindle inserts at a material viscosity of 140,000 mPas DFS6-A DFS8-A DFS16-A 89 rpm 180 rpm 241 rpm 331 rpm 361 rpm Input voltage V DC Motor speed rpm Fig. - Page 8 Manual Screw Valve DV-5005DFS /-L VIEWEG The signal should be from a regulated power supply and should be shunted for positive motor stop. A diagram of a simple braking circuit is shown in Figure 4. Brake Resistor Switch Input Voltage...
-
Page 9: Compressed Air Supply
The box converts the 24 V signal into a signal that can be sent directly to the VC 1100 control unit. If the connection between the XYZ system and VC 1100 is established, set the Control unit VC 1100 „manual“ and connect the spindle valve DV-5005DFS to the control unit VC 1100. Adapter box... -
Page 10: Commissioning
Manual Screw Valve DV-5005DFS /-L VIEWEG 7 Commissioning After all preparations have been completed and all lines connected, the valve must still be filled with material. Either a cartridge or a pressure tank with material line has been connected to the material inlet. - Page 11 Manual Screw Valve DV-5005DFS /-L VIEWEG Shots inconsistent in size • Air entrapped in system (de-air material) • Increase motor run time • Adjust dispense gap • Increase dwell • Increase reservoir pressure (20 PSI MAX) • Use braking (shorting) •...
- Page 12 VIEWEG GmbH VIEWEG Dosier- und Mischtechnik Gewerbepark 13 85402 Kranzberg Deutschland Tel. +49 8166 6784 -0 Fax +49 8166 6784 -20 info@dosieren.de www.dosieren.de...
