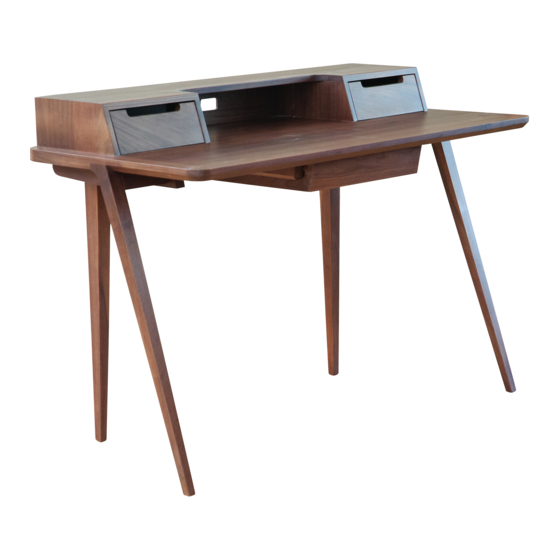

2334 & 2335 TREVISO DESK
Thank you for purchasing this Treviso desk. Please ensure instructions are read in full before attempting to
assemble this product.
Pre-assembly preparation
This is a two person operation
Items you will need
This product is heavy, it should be assembled as near as possible to the point of use. Take care when lifting to
avoid personal injury and (or) damage to the product.
The fittings pack contains small items which should be KEPT AWAY FROM YOUNG CHILDREN.
Installation should be carried out exactly according to the manufacturers instructions, otherwise a safety
risk can occur if incorrectly installed. Cabinets and shelving over 600mm high can be unstable and should be
supported until fixed to the wall.
Read this leaflet in full before commencing assembly.
1
2334 & 2335 Treviso Desk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ercol TREVISO DESK 2334
Summary of Contents for Ercol TREVISO DESK 2334
- Page 1 2334 & 2335 TREVISO DESK Thank you for purchasing this Treviso desk. Please ensure instructions are read in full before attempting to assemble this product. Pre-assembly preparation This is a two person operation Items you will need This product is heavy, it should be assembled as near as possible to the point of use. Take care when lifting to avoid personal injury and (or) damage to the product.
- Page 2 Fittings and parts checklist 8 x Barrel fixing 8 x Grub screw 8 x Straight bolt 3 x M6 x 60mm connector bolt 2 x M6 x 30mm connector bolt 1 x Allen key General assembly 2334 & 2335 Treviso Desk...
- Page 3 Step by step assembly instructions 1. Using a screwdriver fix the straight bolts (C) into the inserts in the front legs. 2. Locate the barrel fixings (A) into the holes in the support rail, aligning the slot in the barrel fixing (A) parallel with the edge of the rail.
- Page 4 3. Using a screwdriver fix the grub screws (B) into the barrel fixings (A). 4. Fix the 2 x M6 x 30MM connector bolts (E) using the allen key provided (F). 2334 & 2335 Treviso Desk...
- Page 5 5. Using a screwdriver fix the straight bolts (C) into the inserts in the back leg assembly. 6. Insert the barrel fixings (A) into the holes in the side rails, aligning the slot in the barrel fixing, parallel with the edge of the rail. Fit the straight bolts (C) in the back leg assembly, into holes in the back of the side rail. 2334 &...
- Page 6 7. Fix the grub screws (B) into the barrel fixings (A) with a screwdriver. 8. Secure the 3x M6 x 60MM connector bolts (D) with the allen key provided (F). 2334 & 2335 Treviso Desk...
- Page 7 No liability will be accepted for damage or injury caused by incorrectly installed furniture. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX ercol.com February 2018 2334 & 2335 Treviso Desk...
