5
Connecting Cables
5.1

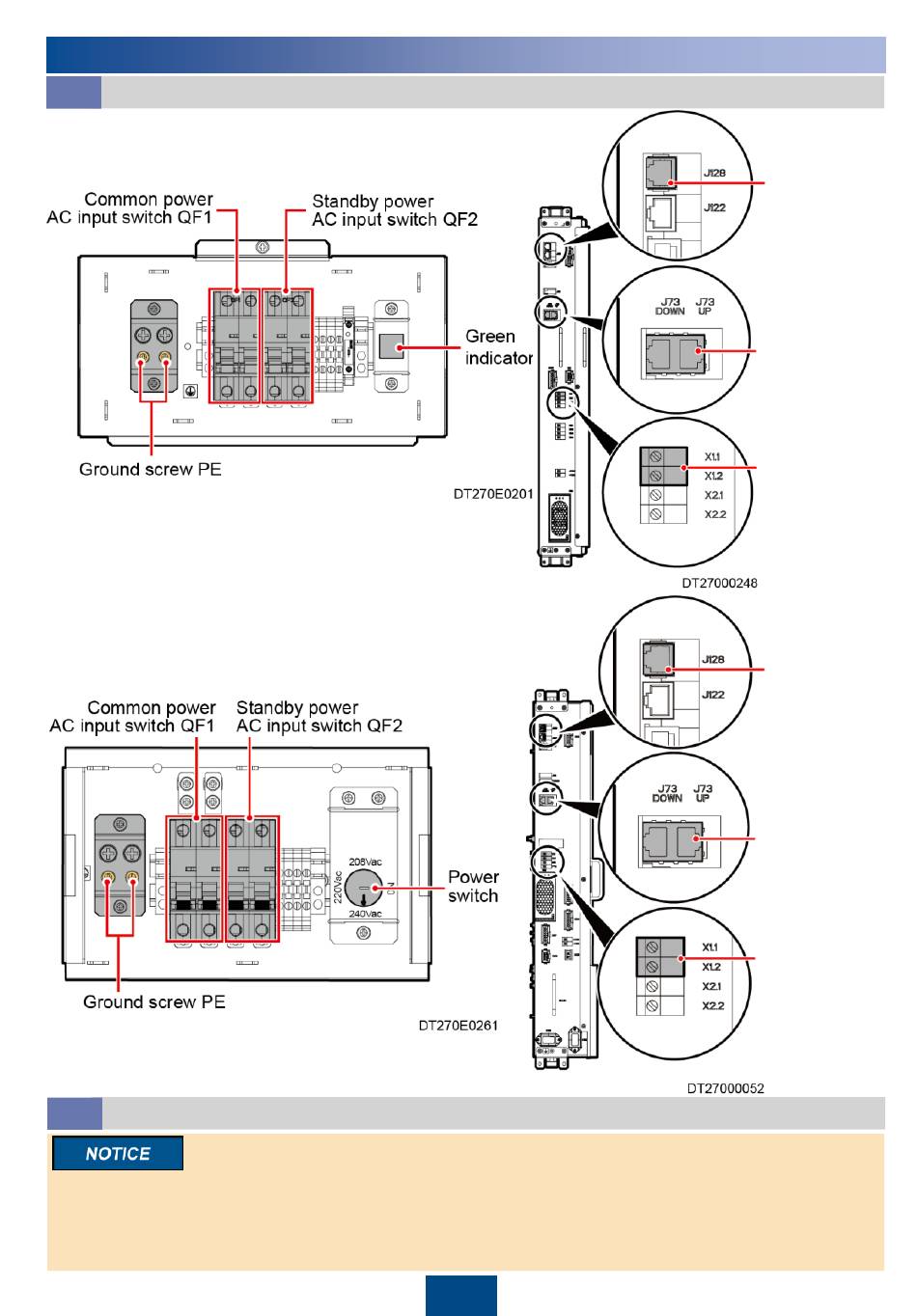

Electrical Ports Introduction
1. Electrical Ports of NetCol5000-C030H6
2. Electrical Ports of NetCol5000-C030H7
Connecting Power Cables and the Equipotential Ground Cable
5.2
1. When laying out cables, route all signal cables (such as the equipotential ground cable,
teamwork network cable, and T/H sensor cable) inside equipment through corrugated pipes in
the delivered accessories to separate strong-current cables from weak-current cables.
2. Fasten power cable to the vertical pillar of rear door by cable ties every 150 mm to 200 mm.
13
Humidity and
Temperature
(T/H) Sensor
port
Teamwork
networking
port
Remote
shutdown
cable port
Humidity and
Temperature
(T/H) Sensor
port
Teamwork
networking
port
Remote
shutdown
cable port
