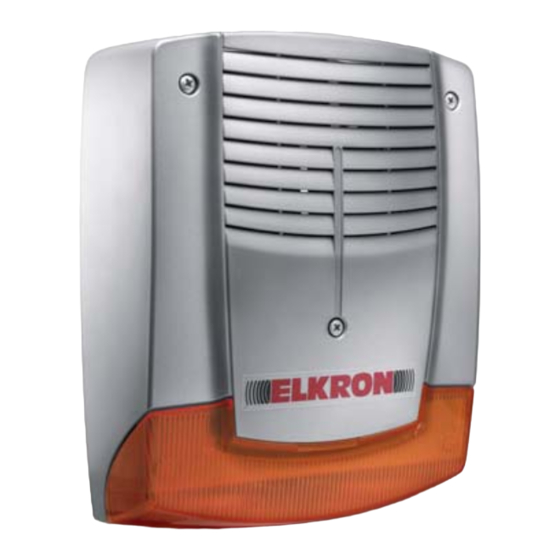

- Page 1 GB D HPA701 HPA702L HPA702LG (INCERT N° B-767-0005) HPA703XP (INCERT N° B-767-0005) HPA703XP/H Sirena da esterno Sirène extérieure Outdoor Siren Aussensirene DS80HP84-001B LBT80164 1/44 HPA701 - HPA702L - HPA702LG - HPA703XP - HPA703XP...
-
Page 2: Table Of Contents
4.0 FLASHLIGHT MODULE..........................29 5.0 PROTECTION MODULE ..........................29 6.0 EXAMPLE OF CONNECTION ........................31 7.0 TECHNICAL CHARACTERISTICS ......................32 1.0 GENERAL CHARACTERISTICS HPA703XP MODEL HPA701 HPA702L HPA702LG HPA703XP/H Metal-coated paint Flashlight in LED technology Flashlight in high-efficiency LED technology 2 LED for failure and system status signalling (can... -
Page 3: Alarms Management
1.1 ALARMS MANAGEMENT After having correctly wired and closed both inputs (block function at power-on), the siren generates an alarm only when both “TC” system status signal (signal present = deactivated system) and the “BL” alarm block signal are missing. The absence on only one of the two does not generate any alarm event;... -
Page 4: Installation
2.0 INSTALLATION Bubble level Drilled riser for securing Cables passing Protection Drilled (on HPA703XP and internal cage raceways module arrang. riser for HPA703XP/H only) securing internal cage Drilled riser Drilled for securing riser for external securing cover external cover Wall Wall fastening fastening... -
Page 5: Siren Module
B C D E F G H I L TEST Terminals not BATT 12V mounted on HPA701 model - BL TA TA Supply positive Supply negative Alarm block input. Programmable NC or balanced (6K8 – 5%) referred to positive or negative System status input. -
Page 6: Factory Programming
3.1 FACTORY PROGRAMMING Sound modes..........1 Sound time-out ..........3 minutes Input type ............Balanced Input reference..........Positive Alarms count...........Disabled Scaffolds function ..........Disabled Siren options are programmable through a series of cutting-wire jumpers, that can be identified with letters “A” to “L”. Jumper Function A B C D E F G H I L A, B, C, D Sound mode... -
Page 7: Sound Time Out Programming
3.3 SOUND TIME OUT PROGRAMMING Sound Time- This function allows programming the maximum delay after which, should the 3 minutes block signal go on missing, the siren automatically stops (useful function in case of cable cutting). The siren will generate a new alarm cycle with a following lack of the block signal. 6 minutes Programming is performed through jumpers E and F, according to the table. -
Page 8: Flashlight Module
4.0 FLASHLIGHT MODULE On HPA702L, HPA702LG, HPA703XP and HPA703XP/H models, a flashlight module in LED technology is assembled, that joins together a longer time and reduced consumptions, allowing a longer battery autonomy. The module has two additional signalling LED available. Yellow LED Yellow LED Red LED... - Page 9 A green LED is present on the protection module that takes Number of Meaning care of providing two signals: blinking Sabotage alarm indication (simultaneous with output Foam-preventing alarm contact opening); Drilling-preventing alarm Alarm memory or local failure (of the first detected Thermal-speed alarm anomaly chronological...
-
Page 10: Example Of Connection
6.0 EXAMPLE OF CONNECTION The example refers to factory programming (balanced lines) To external cover B C D E F G H I L TEST To internal cage TA TA BATT 12V SAB- WHITE SAB+ BLACK TAMPER In series to tamper- preventing micro or on a dedicated 24h input BATTERY... -
Page 11: Technical Characteristics
7.0 TECHNICAL CHARACTERISTICS Rated supply voltage................13,8 V— , 14,4V— Operating voltage (min – max) ..............9 ÷15 V— Absorption at rest ...................4 mA (HPA701, HPA702L, HPA702LG) 8 mA (HPA703XP - HPA703XP/H) Max alarm absorption................650 mA (HPA701) 750 mA (HPA702L, HPA702LG) 1550 mA peak (HPA703XP) 2500 mA peak (HPA703XP/H) Flash absorption (HPA702L - HPA702LG) ..........100 mA peak;... - Page 12 ELKRON S.p.A. Via Cimarosa, 39 – 10154 Torino (TO) – ITALY Tel. +39 (0)11.3986711 – Fax +39 (0)11.3986790 44/44 HPA700 www.elkron.com – mail to: info@elkron.it...
