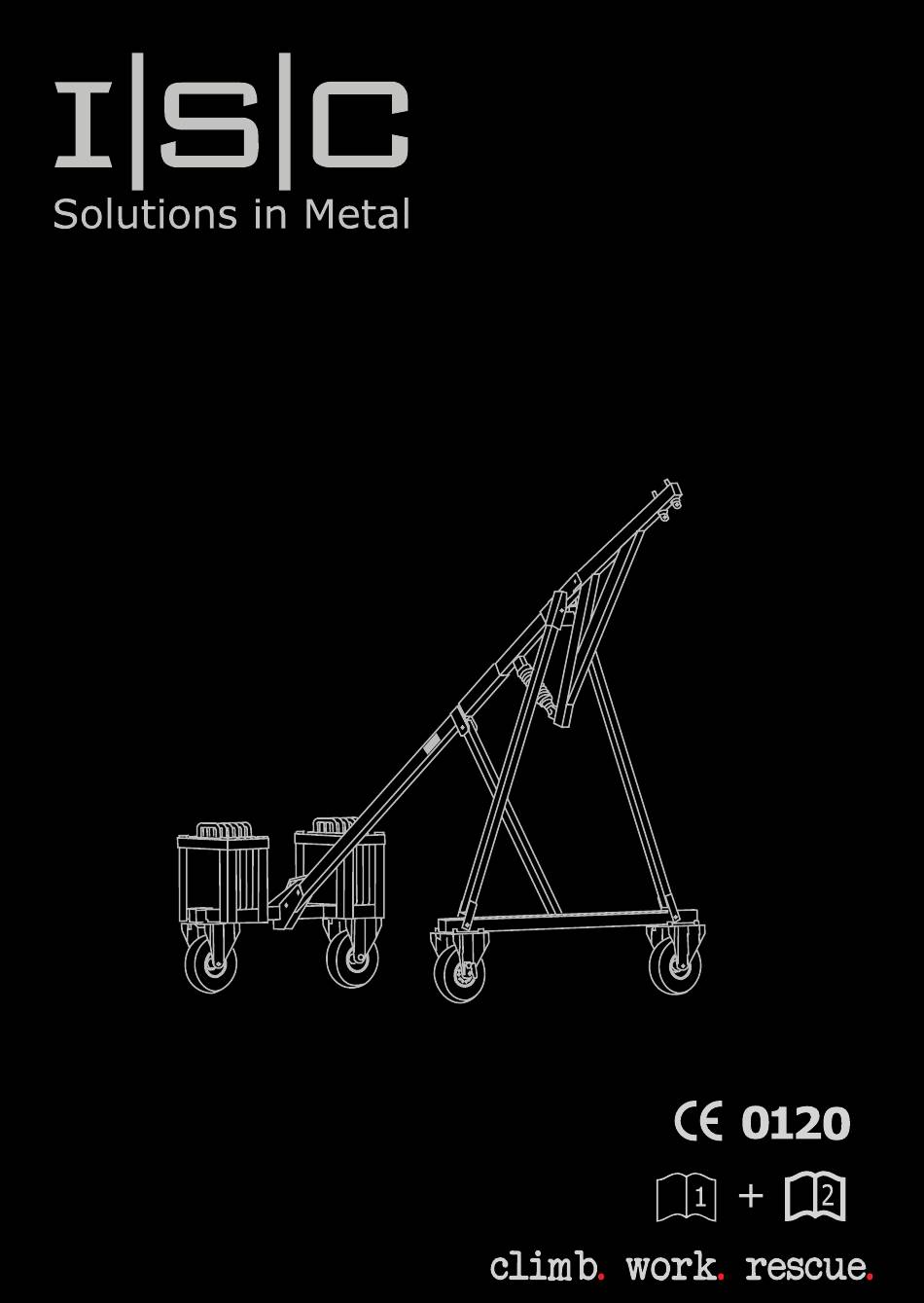

- Page 1 A-Frame Anchor DW200.2: Issue A - Aug 2017...
- Page 2 Deadweight Anchors DW200 A Frame This DW200.2 A Frame is primarily designed and tested to be used as a portable anchor device for Rope Access (work positioning) systems/activities. The DW200.2 A Frame has been tested in accordance with EN795: 2012 Type E by SATRA in the UK and CE marked accordingly.
- Page 3 ??KG ??KG DW200.2: Issue A - Aug 2017...
- Page 4 DW200.2: Issue A - Aug 2017...
- Page 5 8. If the intention is to combine PFPE for Fall Arrest with Deadweight Anchors the user should seek guidance from the manufacturer as to its suitability. Always ensure that all components within a safety system are compatible and allow the system to function safely B Use DW200.2: Issue A - Aug 2017...
- Page 6 DW200.2: Issue A - Aug 2017...
- Page 7 Brake Off Brake On DW200.2: Issue A - Aug 2017...
- Page 8 [B] Use 1. The DW200 is designed to be used as part of a roped access system with twin ropes, work posi- tioning harness and associated equipment 2. The DW200 should be used with a parapet wall with a minimum height of 300mm (12”) 3.
- Page 9 DW200.2: Issue A - Aug 2017...
- Page 10 2. All weights must be used at all times. Weights may need to be secured to the frame by passing a chain through the handles and the frame to prevent tampering during use 3. Do not use the Deadweight as an anchor for Self Retracing Lanyards D Nomenclature DW200.2: Issue A - Aug 2017...
- Page 11 3. Manufacturers Identification 4. Notified Body controlling the manufacture of PPE 5. Serial Number 6. Model Identification 7. Maximum Rated Load 8. 15kN (3372lbf) in accordance with IRATA ICoP and other leading industry guidance. DW200.2: Issue A - Aug 2017...
- Page 12 F Assembly DW200.2: Issue A - Aug 2017...
- Page 13 DW200.2: Issue A - Aug 2017...
- Page 14 DW200.2: Issue A - Aug 2017...
- Page 15 DW200.2: Issue A - Aug 2017...
- Page 16 DW200.2: Issue A - Aug 2017...
- Page 17 9. Insert [13] x12 into [11] G Technical Information 30nM / 20.65lbF 30nM / 20.65lbF 2.07 bar / 30 PSI 400mm / 15.7” 600mm / 23.6” 70mm (200kg) /2 ” (440lbs) 390kg (860lbs) 690mm (27”) 2674mm (105”) 1474mm (58”) DW200.2: Issue A - Aug 2017...
- Page 18 3. Inflation pressures for tyres 4. Minimum distance for positioning from an edge 5. Maximum distance for positioning from an edge 6. Maximum deflection is 0.07m (200kg) 7. Total Unit Weight 8. Dimensions 9. Point Loading DW200.2: Issue A - Aug 2017...
- Page 19 1. Wheel Replacement: Remove bolts and washers. Replace the wheel(s) and reattach using new bolts 2. Sword pin replacement: Prise open Darlaston Washer with a flat headed screwdriver. Insert chain- link of new sword pin and close Darlaston Washer with a soft-faced hammer DW200.2: Issue A - Aug 2017...
- Page 20 Product Record DW200.2: Issue A - Aug 2017...
- Page 21 Product Record Details Item Serial Number. Year of manufacture Purchased from Purchase date. Name of Manufacturer Date of first use. Inspection date. Reason (periodic examination (E) or repair (R)). Conform. Comments. Signature. DW200.2: Issue A - Aug 2017...
- Page 22 Wyndham Way, Telford Way, Kettering, Northamptonshire, NN16 8SD. U.K. Notified body responsible for production monitoring and inspection (Art. 11B): SGS United Kingdom Ltd (0120), Unit 202B, Worle Parkway, Weston Super Mare. S22 6WA. U.K. DW200.2: Issue A - Aug 2017...
- Page 23 Notes DW200.2: Issue A - Aug 2017...
- Page 24 Llandygai Industrial Estate Bangor Gwynedd LL57 4YH United Kingdom T> +44 (0) 1248 363 125 F> +44 (0) 1248 372 118 sales@iscwales.com w w w. i s c wa l e s . c o m DW200.2: Issue A - Aug 2017...
